4 Mounting and connecting
4.1 Preparations
Check the package content for visible signs of transport damage and for
completeness.
Do not install parts damaged during shipment. Contact your Siemens
representative in the event of damaged parts.
Note the information in the following sections of these operating instructions before
installing the Climatix touch panel:
● Climatic ambient conditions
● Protection classes
Avoid mounting the Climatix touch panel near other devices’ AC power cable,
controller output module, relay, or other electrical equipment.
Keep the Climatix touch panel away from equipment such as frequency converters
and power supply units, and shield all input or output cables to the equipment. The
shielding must be properly earth grounded.

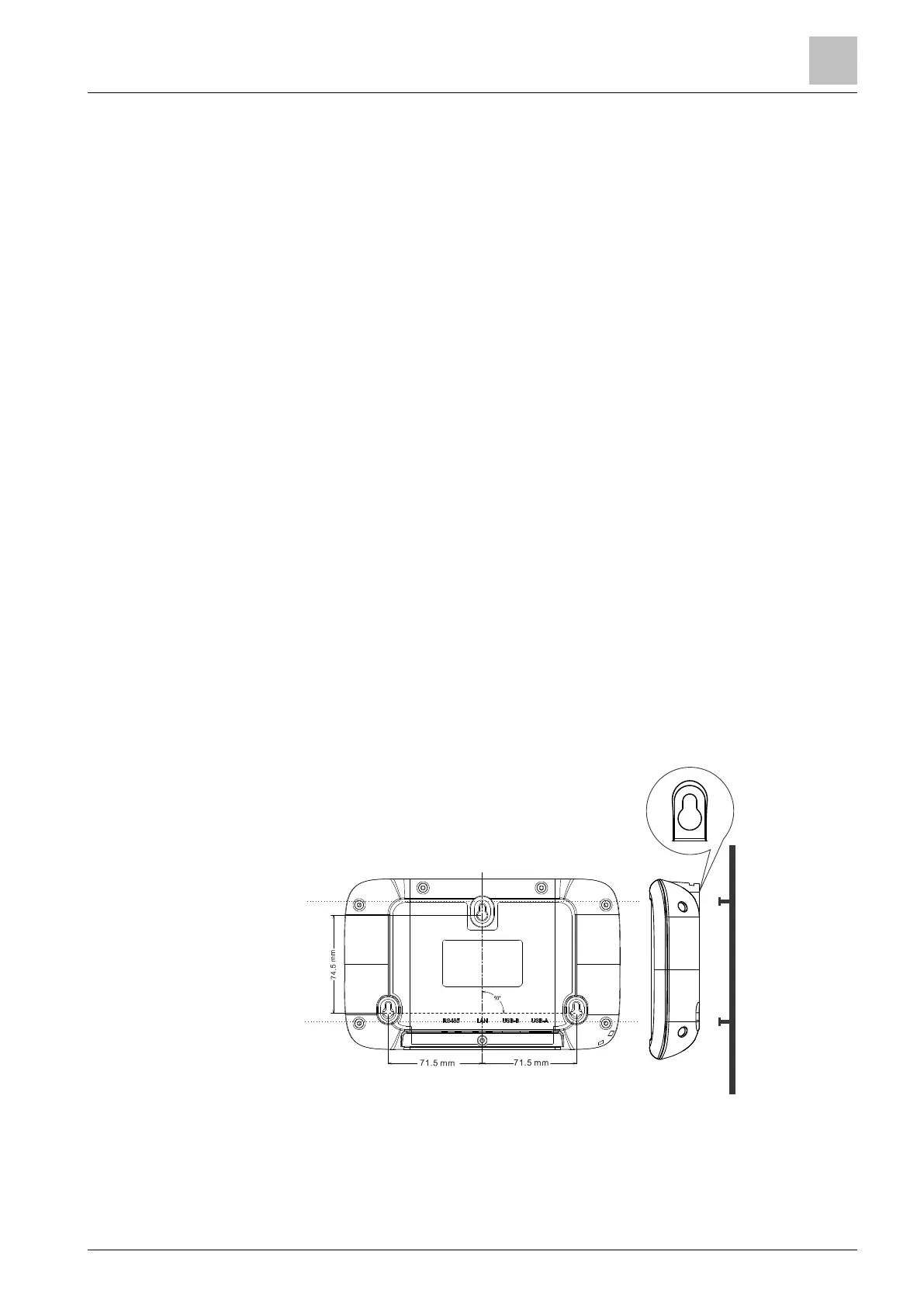

4.2 Mount the Climatix touch panel
● The material in the mounting area must be sufficiently strong to ensure lasting
and safe mounting of the Climatix touch panel.
● The force of the mounting screws or device operation may not cause the
material to become deformed.
1. Put the central hole on the back of the Climatix touch panel into the mounting
screw.
2. Move the panel slightly to hook it to the left and right screws.
3. If portable operations are needed, move the panel upwards and take it down.
To comply with the sealing specification, ensure that the maximum curvature of the
mounting surface is 0.010".
