4.3.3 Connect Climatix controller
If it contains an executable project, connect the Climatix touch panel to the
controller.

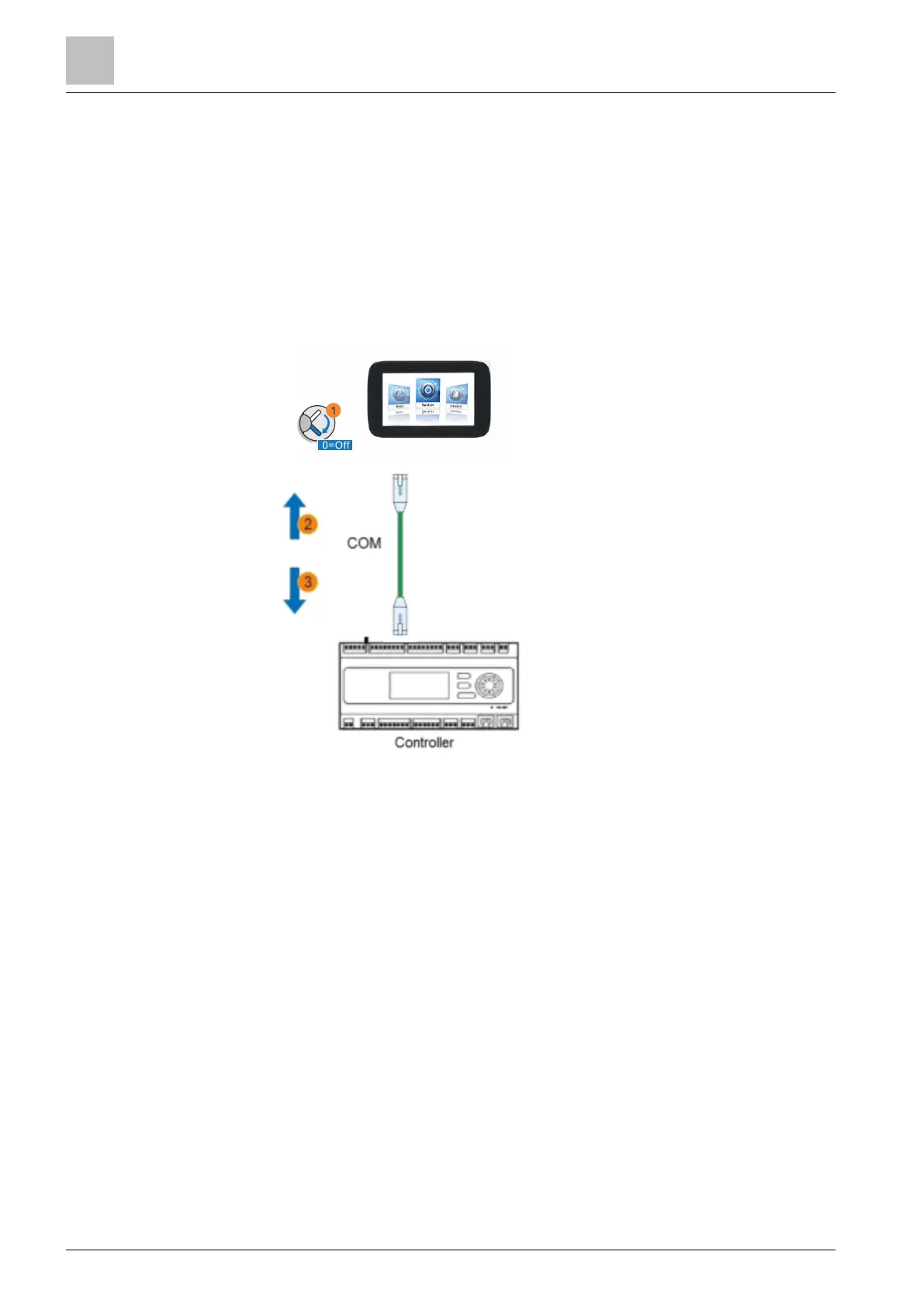

Use the RS485 port to connect to a Climatix controller.
1. Shut down the Climatix touch panel.
2. Connect an RJ45 connector (side B, without power branch) on the
communication cable to the RS485 port of the Climatix touch panel.
3. Connect the other RJ45 connector (side A, with power branch) on the
communication cable to the service port of the controller.
For safety instructions, see Notes on communication [➙ 12].
Use the Ethernet port to connect to a Climatix controller.
1. Shut down the Climatix touch panel.
2. Connect an RJ45 connector (side B, without power branch) on the
communication cable to the LAN port of the Climatix touch panel.
3. Connect the other RJ45 connector (side A, with power branch) on the
communication cable to the IP port of the controller.
4. Configure the network if necessary. See Configure the network [➙ 22].
