Technical specifications
Interface description
8
26 | 30
A6V11521029_en--_c
Listings
UL916
Environmental
compatibility
The product environmental declaration
(A5W90006122) contains data on environmentally
compatible product design and assessments (RoHS
compliance, materials composition, packaging,
environmental benefit, disposal).
General data
Dimensions (mm)
210 × 130 × 36
Weight (kg)
0.64
Ordering data
Article type (ASN)
POL8T5.70/STD
Material (SSN)
S55626-H857-A100
Minimum order quantity
1
Product package
*)
Touch panel
1
*)
Power supply and communication cables are not included in product package.
Please order separately.

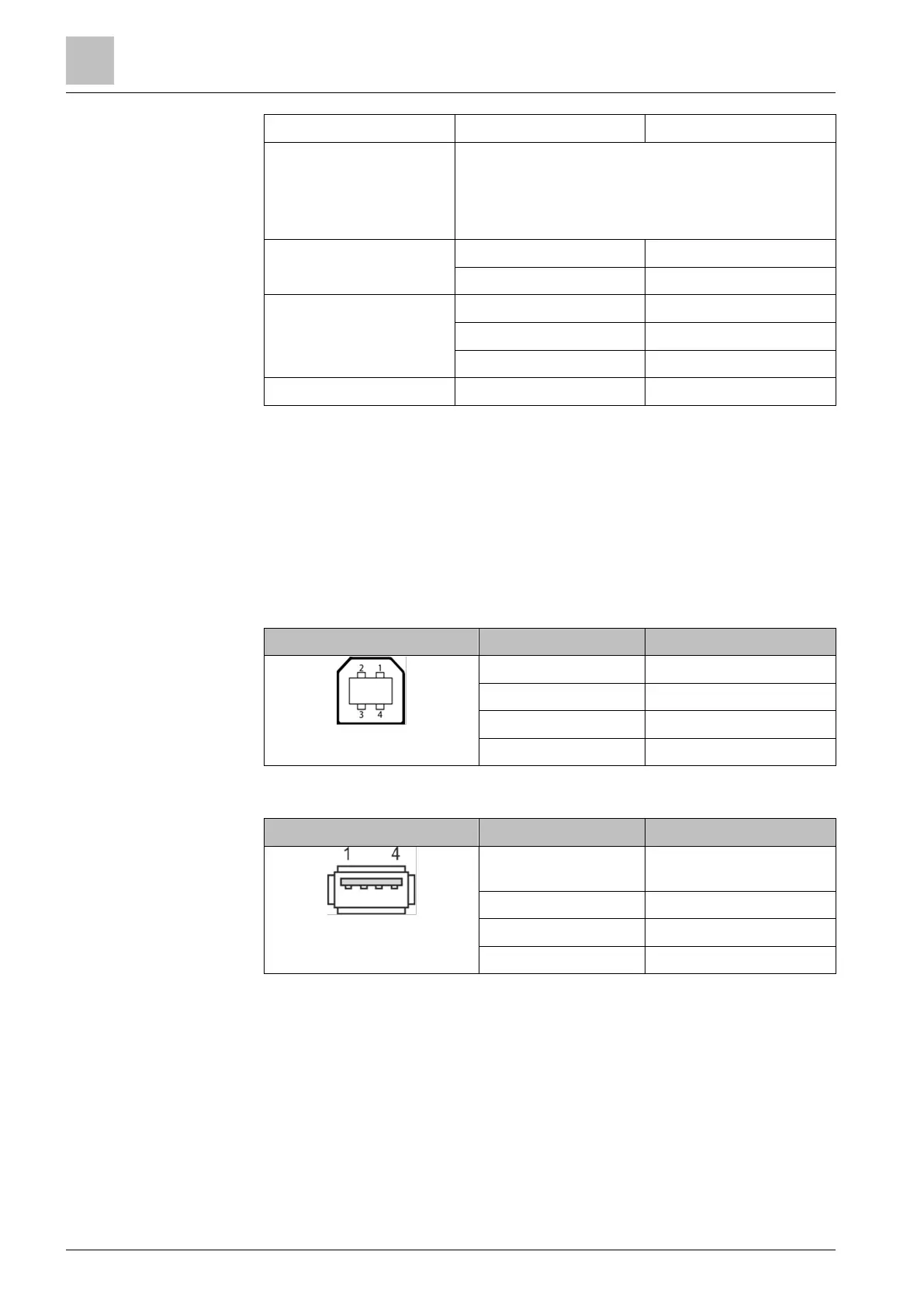

8.2 Interface description
The touch panel can be powered via POL0C1.80/STD or POL0C1.75/STD. Side A
of each cable has a DC 24 V power branch. It is used to connect with DC 24 V
power supply. Side B is used to connect to the touch panel.
A standard USB interface. Used for connecting to a configuration PC.
Figure
Pin
Description
1
NC
2
Data -
3
Data +
4
Ground
A standard USB interface. Used for exporting data to a USB stick.
Figure
Pin
Description
1
DC +5 V out, max.
500 mA
2
Data -
3
Data +
4
Ground
Power interface
USB-B
USB-A
