Siemens POL8T5.70/STD - Topology

Overview
Topology
2
A6V11521029_en--_c
9 | 30
2.2 Topology

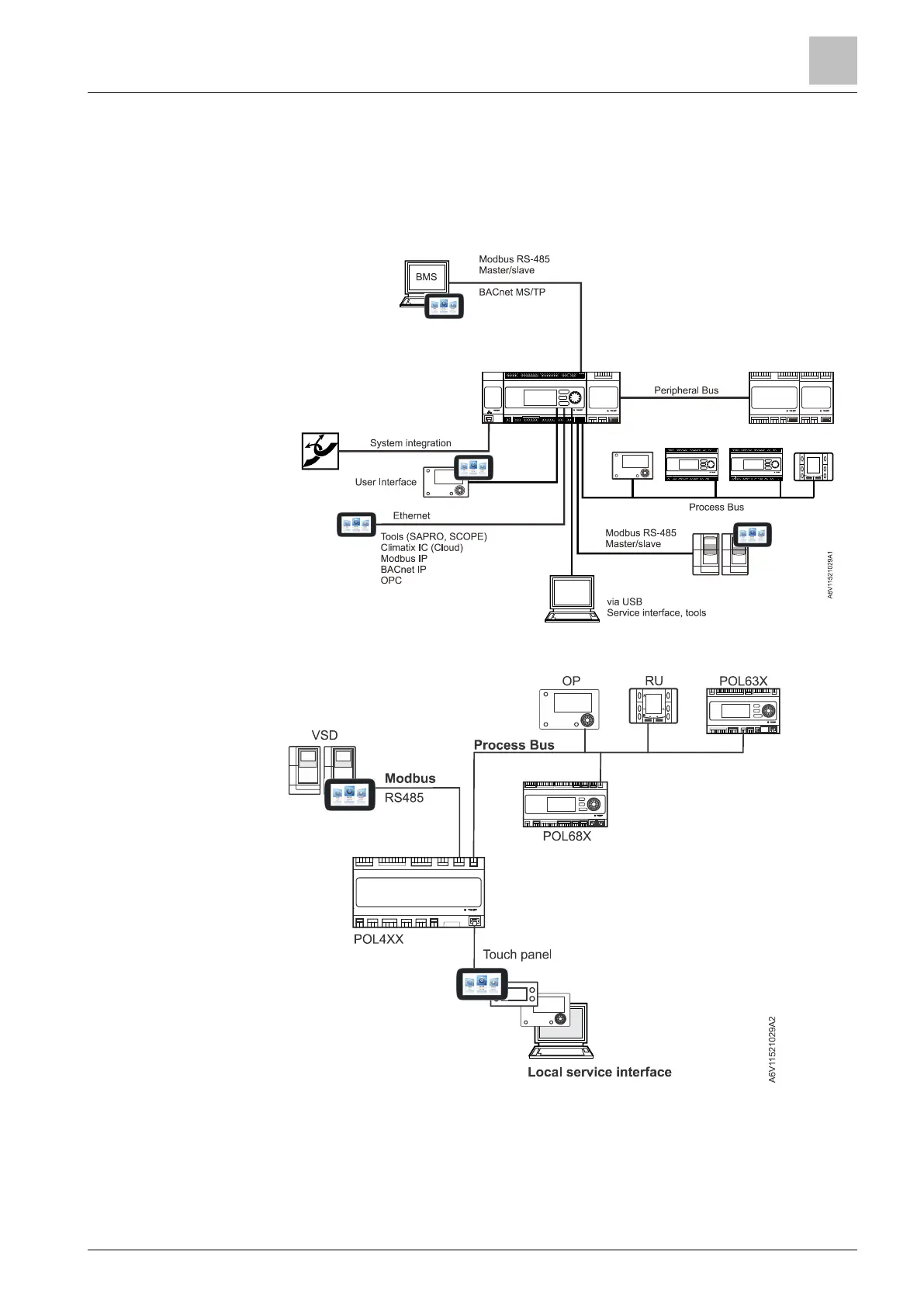

The following figures show examples of the communication between the Climatix
touch panel, the PC, and the Climatix controller.
The application in the Climatix controller must support Modbus communication via
Ethernet, RS485 interface and/or local service interface (T-HI).
Climatix POL6XX communication concept (here C600)
Climatix POL4XX communication concept (here POL42X)
Precondition
With Climatix POL6XX
controller
With Climatix POL4XX
controller
