Siemens POLYMOBIL Plus Start-Up Instructions

Requirements 1 - 7
Siemens AG SPR8-125.034.02 Page 7 of 10 POLYMOBIL Plus
Medical Solutions Rev. 02 03.05 CS PS 24
If the direct measurement of the device leakage current is used
(measuring arrangement according to Fig. 4), the system must be set up insulated during
the measurement and must not be touched during the measurement.

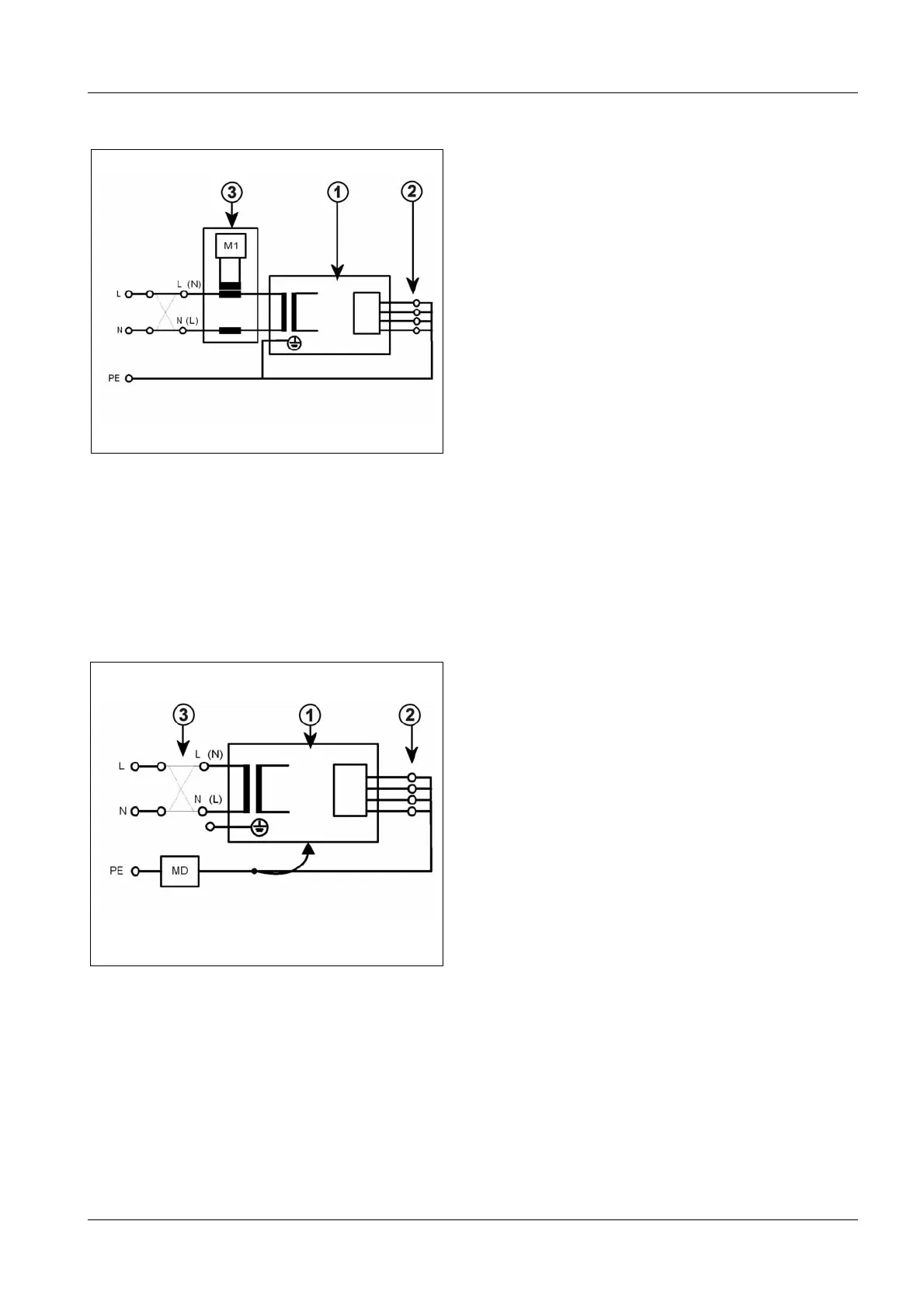

Fig. 3 Measuring circuit for measuring the device leakage current according to the differential current method
according to DIN VDE 0751-1:2001-10, Fig. C6 for protective class
I.
1 = System
2 = Application part (not available)
3 = Measuring arrangement (integrated in the measuring instrument)
Fig. 4 Measuring circuit for the direct measurement of the device leakage current
according to DIN VDE 0751-1:2001-10, Fig. C5 for protective class
I.
1 = System
2 = Application part (not available)
3 = Measuring arrangement (integrated in the measuring instrument)
