Siemens POLYMOBIL Plus Start-Up Instructions

POLYMOBIL Plus SPR8-125.034.02 Page 4 of 6 Siemens AG
Rev. 02 03.05 CS PS 24 Medical Solutions
6 - 4 Electrical safety / reports
Measuring circuit
Direct measurement.
Differential measurement

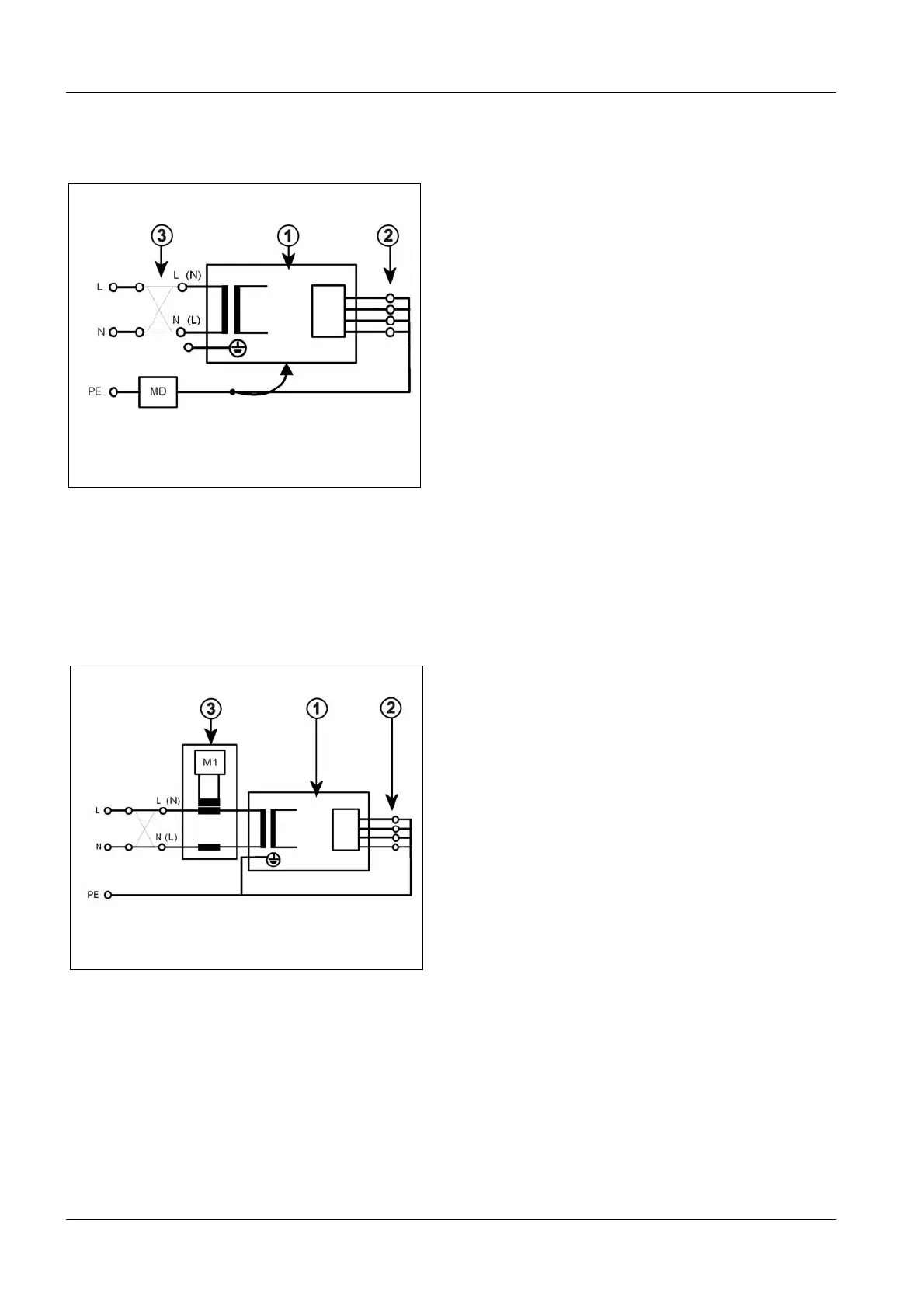

Fig. 2 Measuring circuit for direct measurement of the device leakage
current according to DIN VDE 0751-1:2001-10, Fig. C5
for protective class
I.
1 = System
2 = Application part (if available)
3 = Measuring arrangement (integrated in the measuring
instrument)
Fig. 3 Measuring circuit for measuring the device leakage current
according to the differential current method
according toDIN VDE 0751-1:2001-10, Fig. C6
for protective class
I.
1 = System
2 = Application part (if available)
3 = Measuring arrangement (integrated in the measuring
instrument)
