26 Inspection and Maintenance
POLYMOBIL Plus SPR8-125.831.01.02.02 Siemens AG
05.05 CS PS 24
Page 26 of 40
Medical Solutions
2.5 Checking the pedal positions

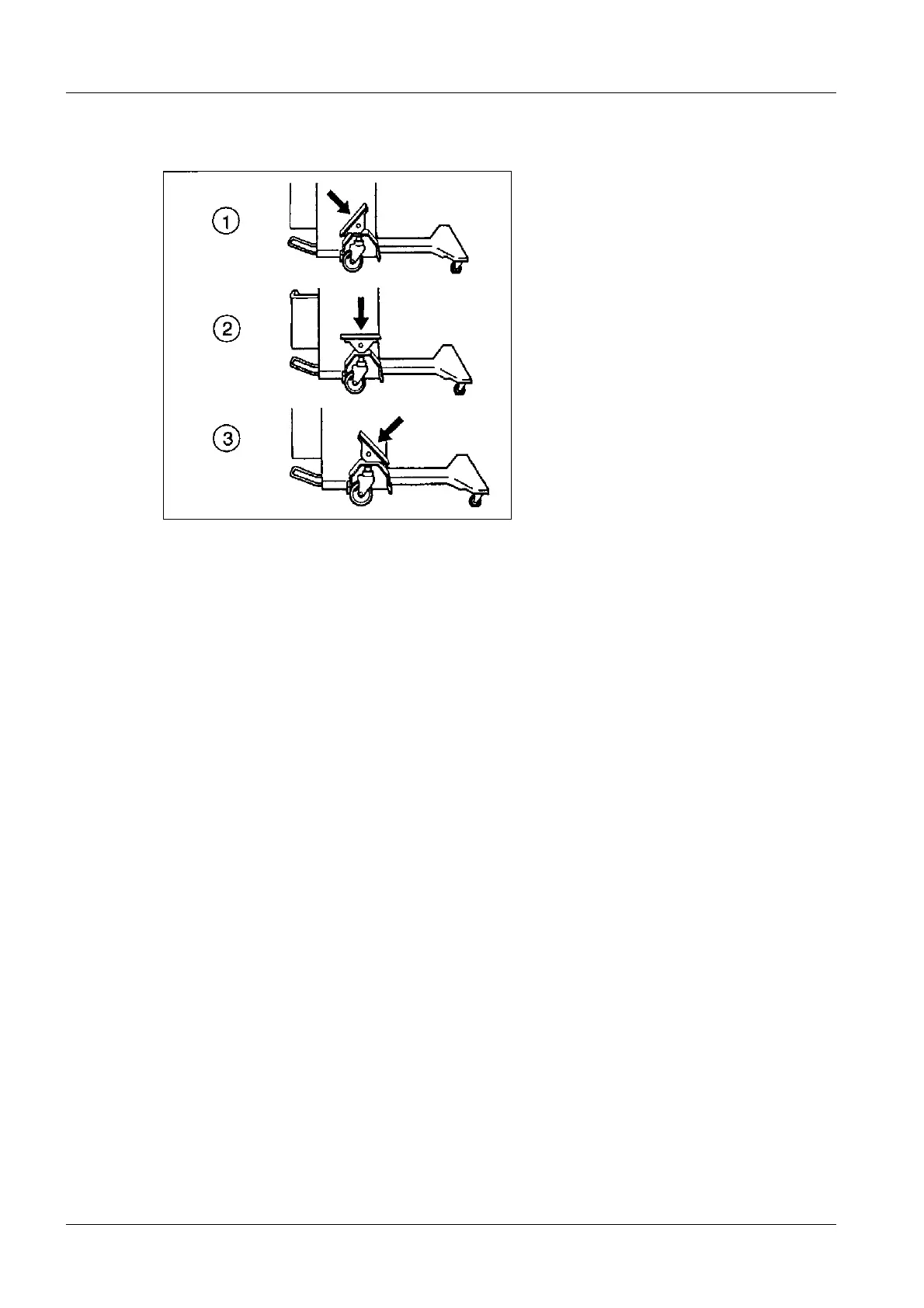

Fig. 1: Checking the pedal positions
• If the following functions are no longer reliable, replace both steering castors complete-
ly (see Service Instructions ”Replacing the steering castor”).
SIM Braking / Locking
• Pedal positions are as shown in (1//Fig. 1 / p. 26)
¹ The rear wheels are locked.
The unit is locked in place and cannot be moved.
SIM Maneuvering movement
• Pedal positions as shown in (2//Fig.1/p.26)
¹ The rear wheels can be freely swiveled.
The unit can be moved in any desired direction.
SIM Forward movement
• Pedal positions as shown in (3//Fig.1/p.26)
¹ The unit can be moved forwards and backwards.
It is steered by means of the front wheels.
