28 Inspection and Maintenance
POLYMOBIL Plus SPR8-125.831.01.02.02 Siemens AG
05.05 CS PS 24
Page 28 of 40
Medical Solutions
2.7 Double-slot diaphragm

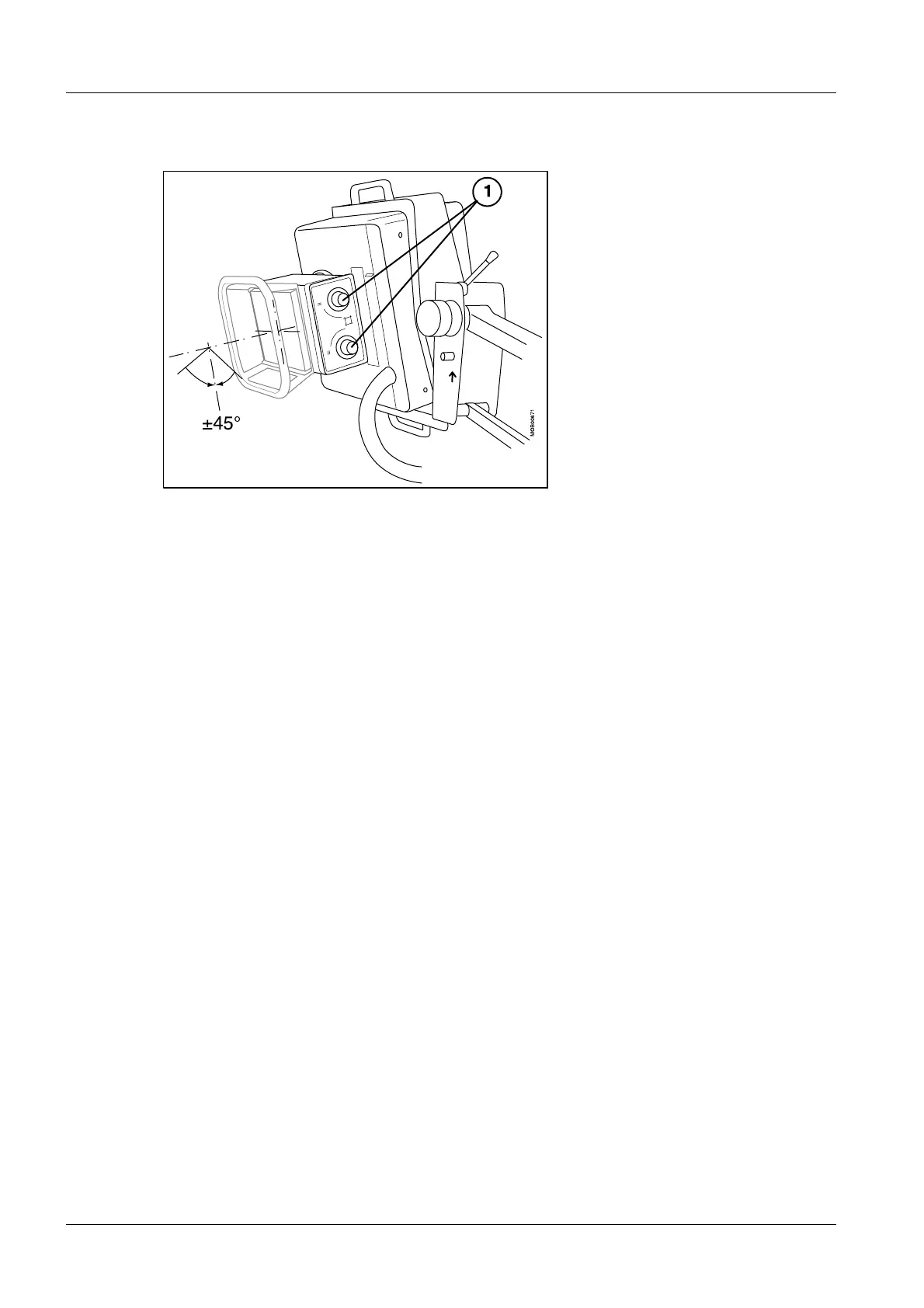

Fig. 4:
• Connect the line voltage cable and turn the Polymobil Plus ON .
PMF Light localizer lamp
• Check the function of the light localizer lamp and replace, if necessary. Refer to the Ser-
vice Instructions "Replacing the light localizer lamp".
SIM Rotating
• Check whether the double-slot diaphragm can easily be rotated ± 45 (Fig.4/p.28).
PMF Format setting
• Check the format setting (pairs of collimator leaves) for ease of movement and unifor-
mity (by sliding the diaphragm adjusting levers (1//Fig.4/p.28).
• Switch the Polymobil Plus OFF and disconnect the line voltage plug.
PMF 0° degree position
• Move the support arm into its uppermost position.
• Place a water level against the double-slot collimator and check the 0° setting.
If necessary, readjust the scale on both sides.
