Siemens AG SPR8-125.831.01.02.02 POLYMOBIL Plus
05.05 CS PS 24
Inspection and Maintenance 31
Page 31 of 40
Medical Solutions
2.9 Radiation

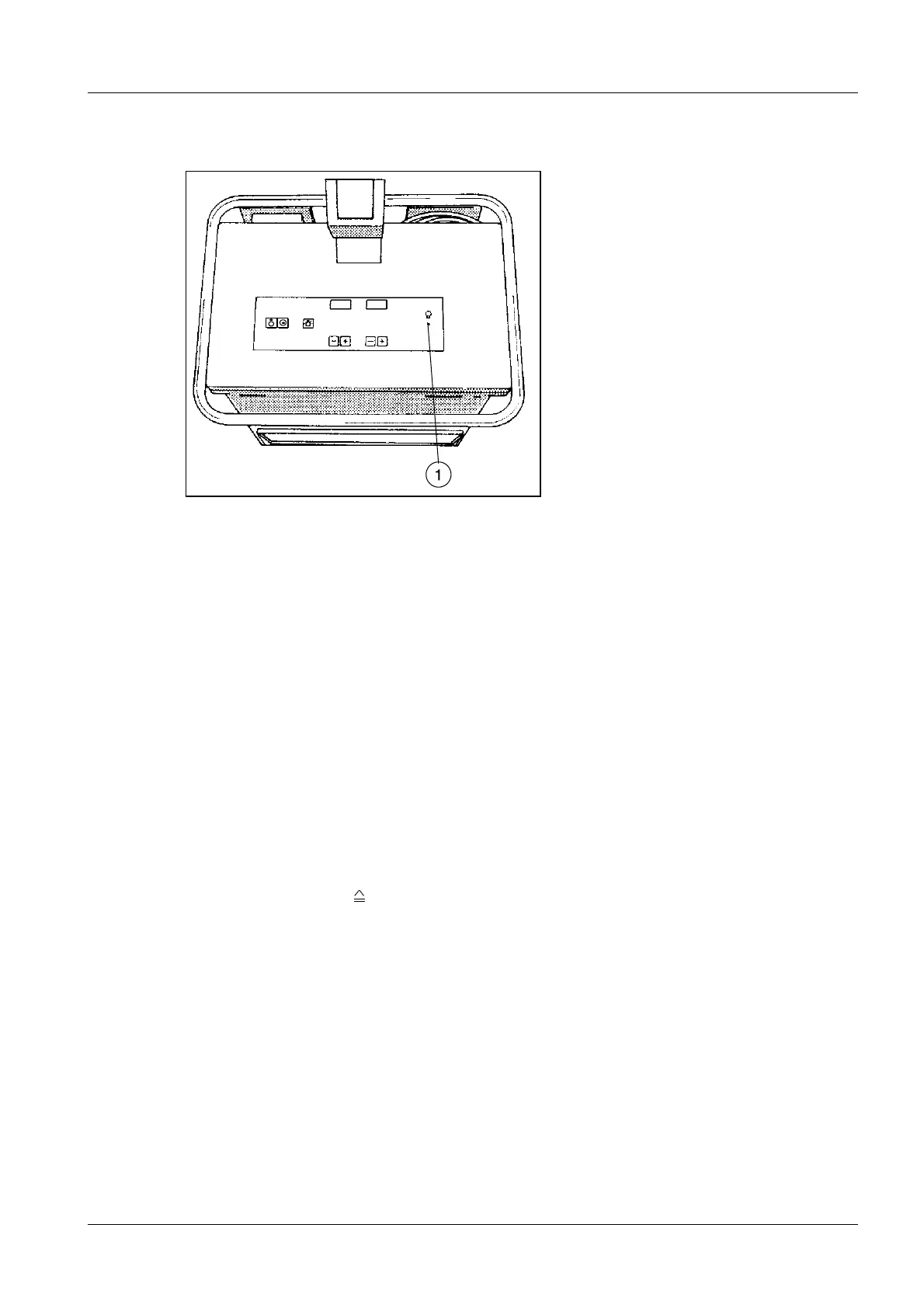

Fig. 9:
• Insert line voltage plug, Polymobil Plus ON
• Close the double-slot diaphragm. Set 60 kV, 10 mAs.
SIE Radiation indicator
SIE Acoustic signal
X
• Release an exposure. The radiation indicator (1//Fig. 9 / p. 31)
must light up during the exposure; at the same time, an acoustic signal sounds.
• Switch the Polymobil Plus OFF and disconnect the line voltage plug.
PMF kV and tube current (IR)
• Loosen and remove the upper cover of the switchbox by removing the
4 Allen screws.
• Connect oscilloscope:
CH1: D915.IR
CH2: D915.kV (1 V 20 kV actual value)
and D915.GND
• Insert line voltage plug, Polymobil Plus ON
X
• Release exposures with 90 kV, 10 mAs.
