Optical Line Topology for SIPROTEC 3 Devices with an RS232
Interface
In an existing optical line topology with a mini star coupler, you can connect several SIPROTEC 3 device with
an RS232 interface via the RS232 fiber-optic converter connected downstream.

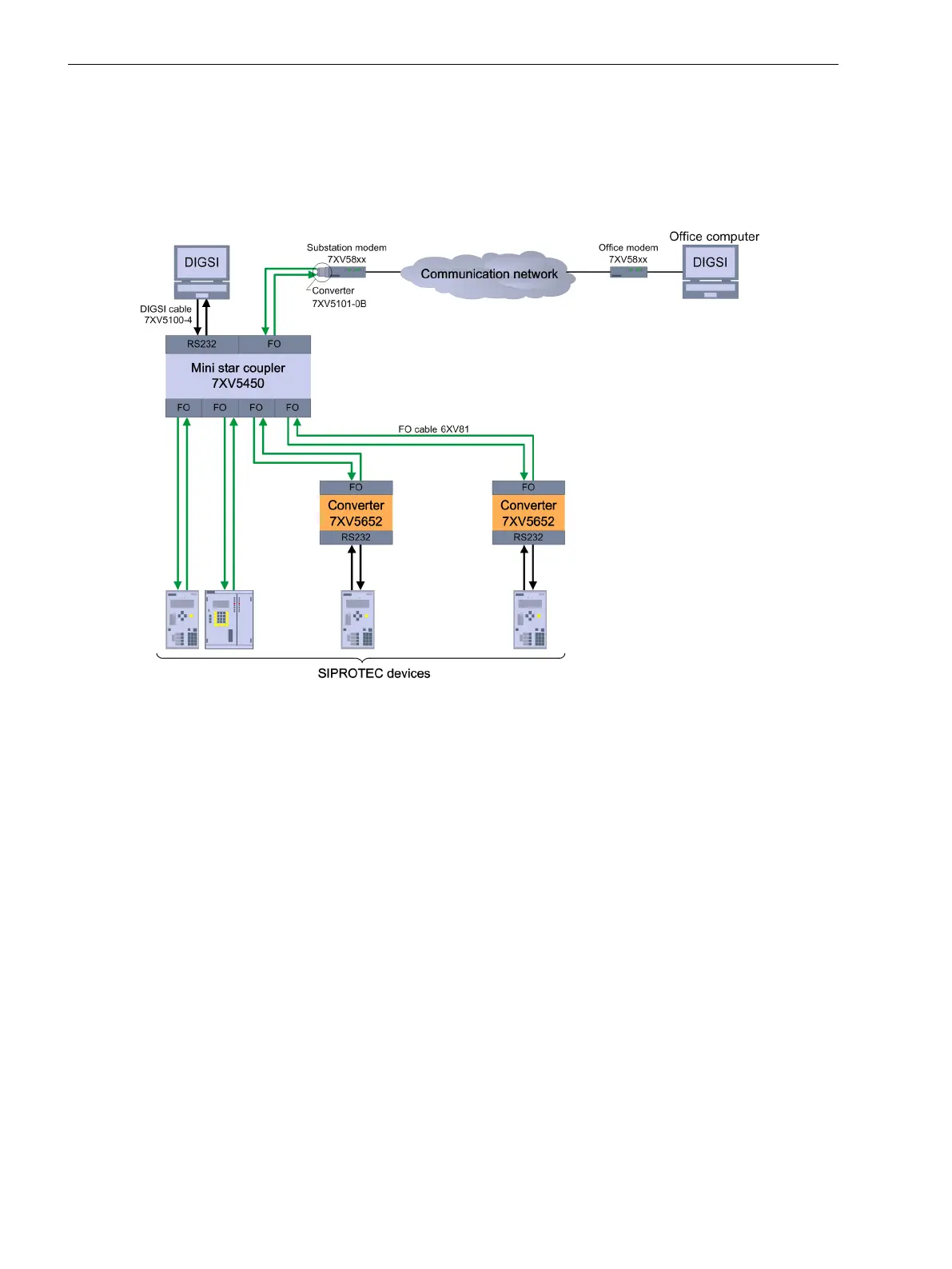

[dw_opticstarstruc-rs232, 1, en_US]
Figure 3-1
Optical Line Topology for SIPROTEC 3 Devices with an RS232 Interface
3.1
Application Examples
3.1 Optical Line Topology for SIPROTEC 3 Devices with an RS232 Interface
22 Accessories, RS232 Optical Fiber Converter 7XV5652-0CA00, Manual
C53000-G9050-C606-1, Edition 03.2020
