Siemens RUGGEDCOM RSG2488 User Manual

Chapter 3
Communication Ports
RUGGEDCOM RUGGEDCOM RSG2488
Installation Guide
26 Copper Ethernet Ports
Available Modules

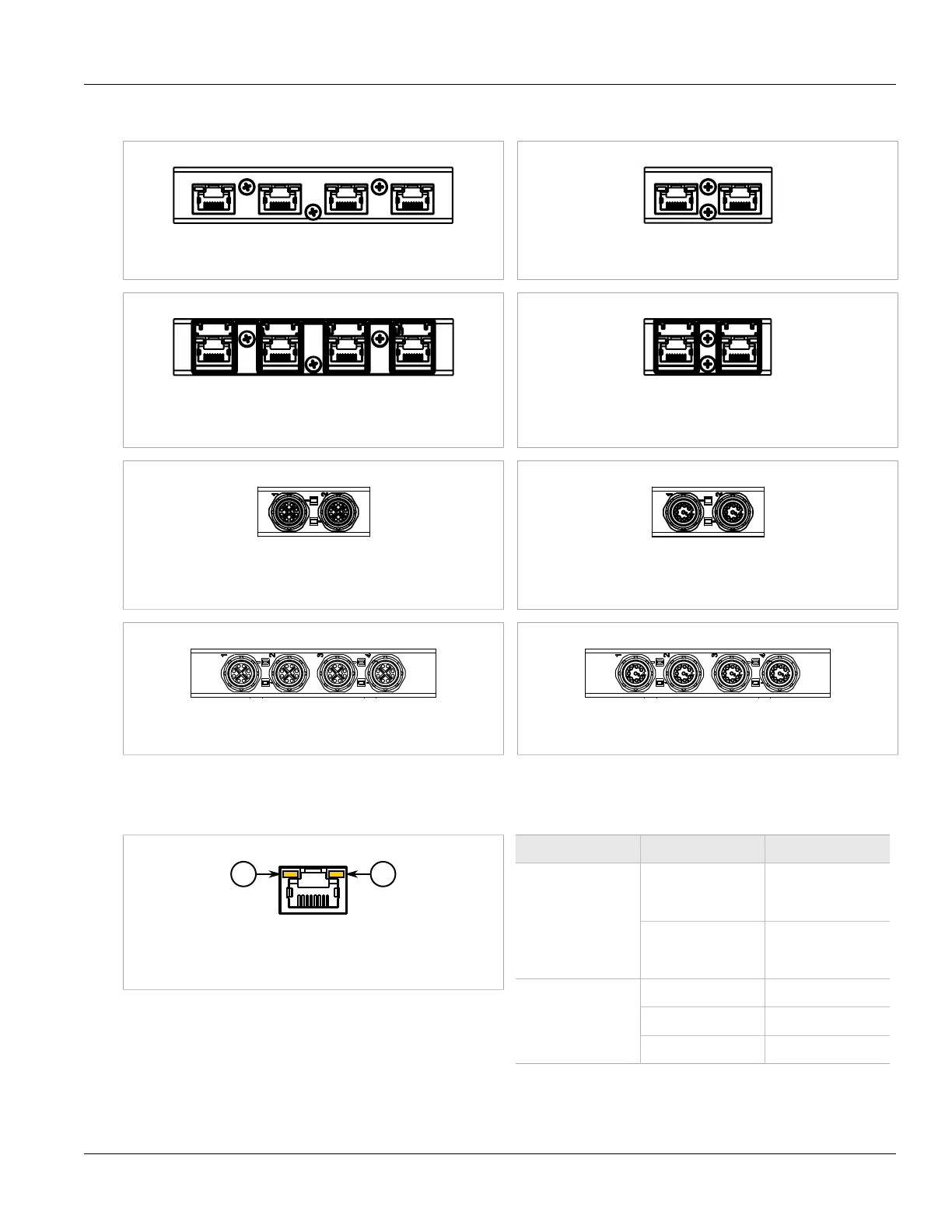

Figure 22: 4 × 10/100/1000Base-TX with RJ45 Ports
Figure 23: 2 × 10/100/1000Base-TX with RJ45 Ports
Figure 24: 4 × 10/100/1000Base-TX with FastConnect
RJ45 Ports
Figure 25: 2 × 10/100/1000Base-TX with FastConnect
RJ45 Ports
Figure 26: 2 x 8-Pin 10/100/1000TX with M12 X-Coded
Ports
Figure 27: 2 x 8-Pin 10/100/1000TX with M12 A-Coded
Ports
Figure 28: 4 x 8-Pin 10/100TX with M12 X-Coded Ports Figure 29: 4 x 8-Pin 10/100TX with M12 A-Coded Ports
LEDs
Each port features LEDs that indicate the state of the port.
1
2
Figure 30: RJ45 and FastConnect RJ45 Port LEDs
1. Speed LED 2. Link/Activity LED
LED State Description
Yellow The port is
operating at 1000
Mbps
Speed
Off The port is
operating at 10 or
100 Mbps
Yellow (Solid) Link established
Yellow (Blinking) Link activity
Link/Activity
Off No link detected
