Position

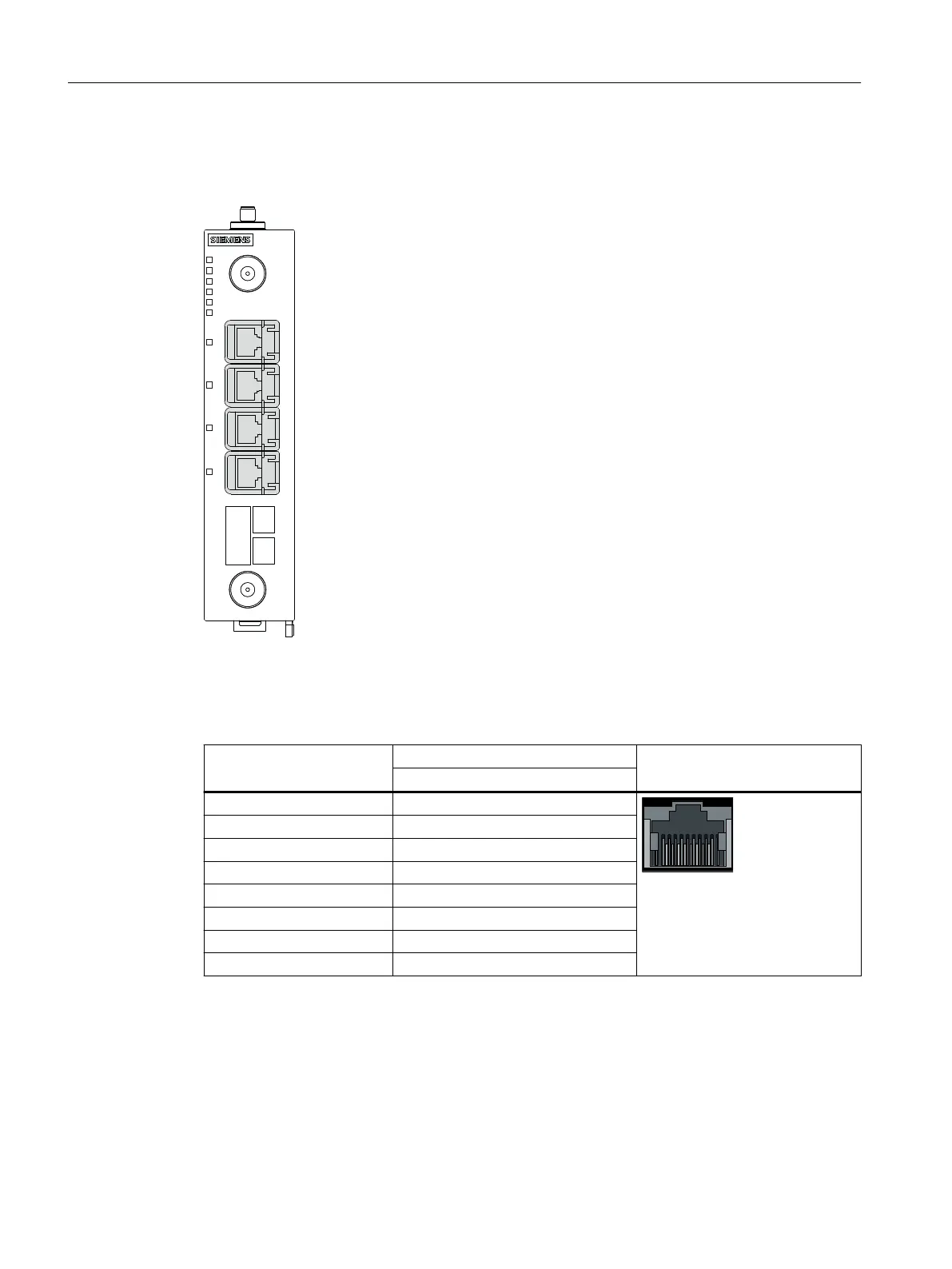

The 󹪝gure shows the position of the connectors to Industrial Ethernet with 10/100/1000 Mbps.

3

3

3

3

Pin assignment

The following table shows the pin assignment of the RJ45 connectors.

Pin number Pin assignment RJ45 connector

10/100/1000Mbps

Pin 1 D1+



Pin 2 D1-

Pin 3 D2+

Pin 4 D3+

Pin 5 D3-

Pin 6 D2-

Pin 7 D4+

Pin 8 D4-

Connection

6.3Ethernet

SCALANCE MUM853-1

52 Operating Instructions, 03/2023, C79000-G8976-C650-05
