Siemens SCALANCE MUM853-1 - LED Status Indicators

Wire end ferrule with plastic
collar to DIN 46228/4
0.2 mm
2
1.5 mm
2
Stripped length 7mm 7mm
4.7 LED display
3
3
3
3
)
/
'2
4
',

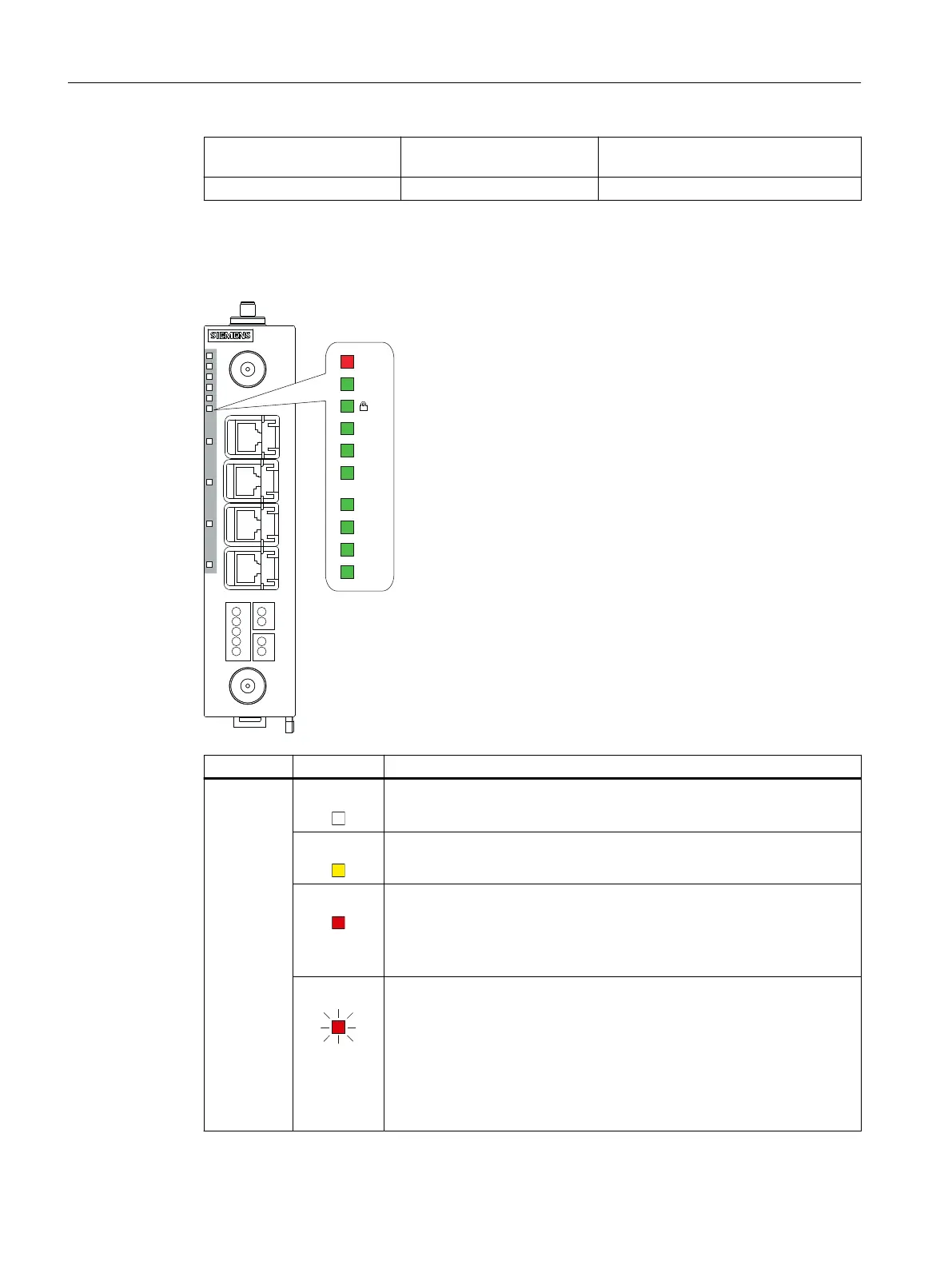

LED Status Meaning
F OFF No fault/error
Yellow: Sleep mode is active.
Red The device is starting up or an error has occurred.
Possible errors/faults:
• Wrong PIN number
• The inserted CLP has an invalid or incompatible con󹪝guration
Flashing red
Interval:
2000ms
on / 200ms
o󹪜
Firmware on CLP
The device is performing a 󹪝rmware update or downgrade.
Description of the device
4.7LED display
SCALANCE MUM853-1
28 Operating Instructions, 03/2023, C79000-G8976-C650-05
