Connecting SCALANCE S615 to the WAN
1.8 Creating IP subnet
SCALANCE S615 Getting Started
22 Getting Started, 03/2015, C79000-G8900-C390-01
The interfaces are handled differently.
● Ethernet interface P1 (vlan1): Connection to LAN
● Ethernet interface P5 (vlan2): Connection to WAN
For this configuration example, only the IP subnet for the Ethernet interface P5 needs to be
configured. The IP subnet for the Ethernet interface P1 is already configured.

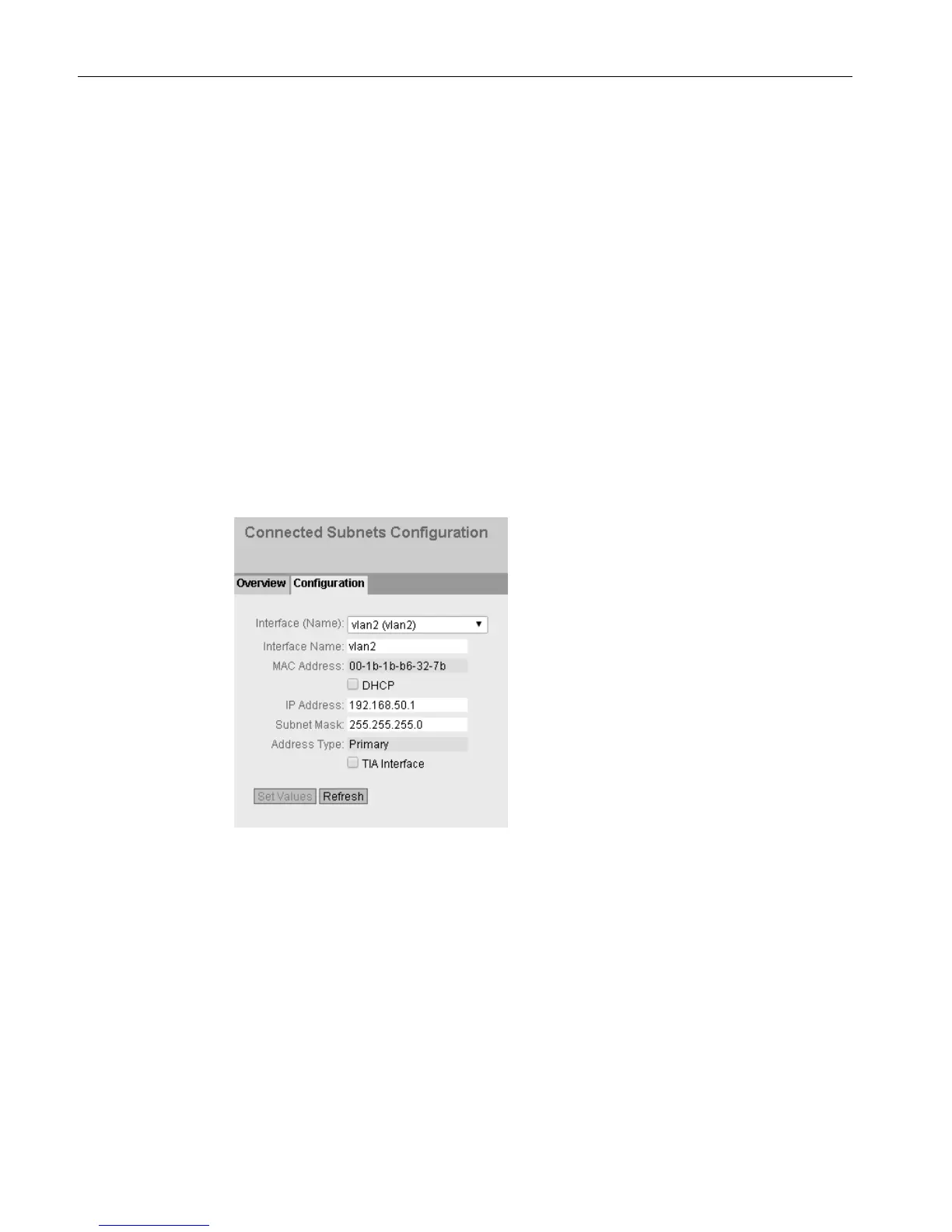

1. Click on "Layer 3" > "Subnets" in the navigation area and on the "Configuration" tab in the
content area.
2. For "Interface" select "vlan2".
3. For "Interface Name" you can enter a name.
4. Enter the IP address for vlan2, see table "Settings used (Page 9)"
5. Click "Set Values".
