SCALANCE S615 Getting Started
Getting Started, 03/2015, C79000-G8900-C390-01
9

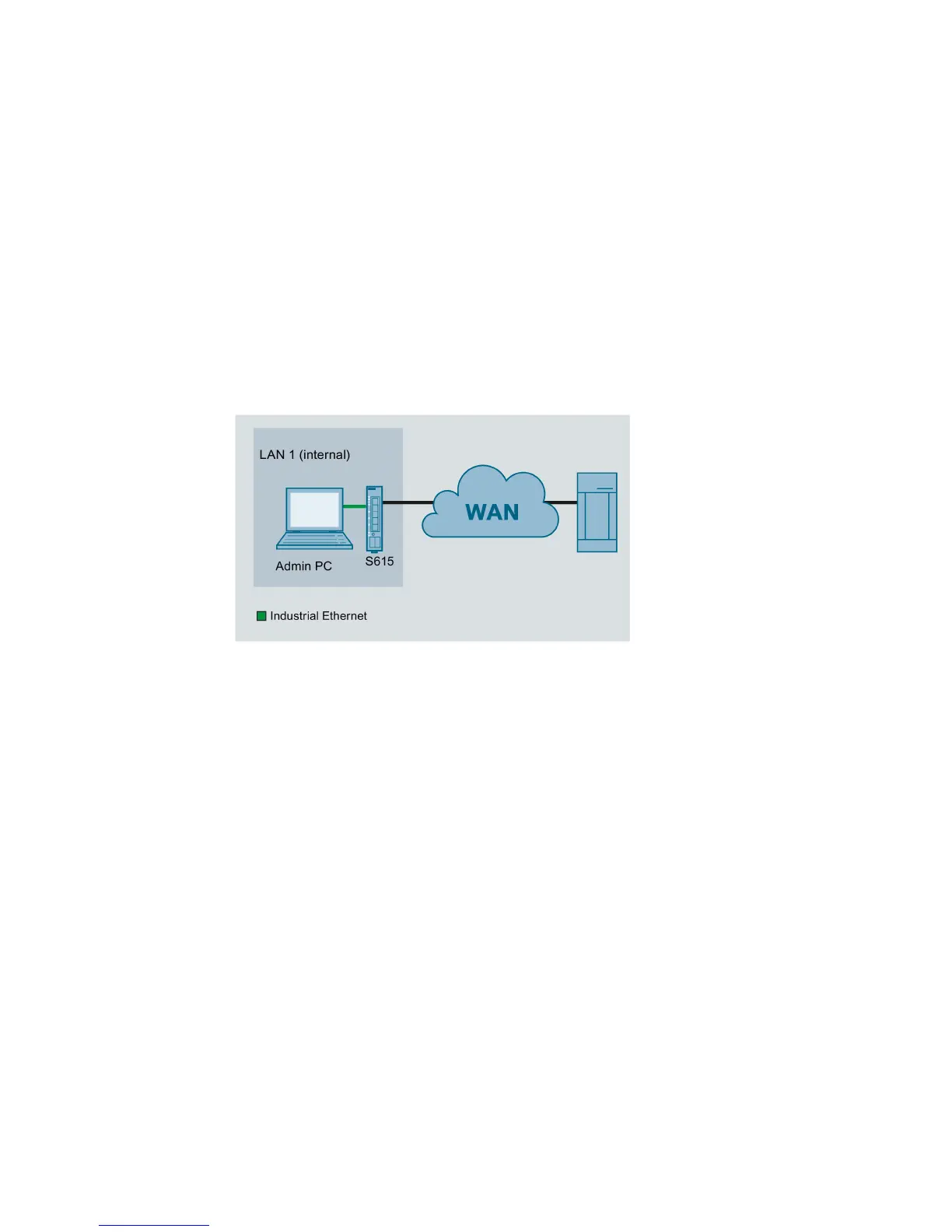

Connecting SCALANCE S615 to the WAN
In this example the SCALANCE S615 that is in the factory settings status is assigned an IP
address. Following this, the device will be configured using Web Based Management
(WBM). Access to the WAN via the Ethernet interface P5 of the S615 will be connected
Required devices/components
● 1 x S615 (additional option: a suitably installed standard rail with fittings)
● 1 x 24 V power supply with cable connector and terminal block plug
● 1 x PC for configuring the S615
● The required network cable, TP cable (twisted pair) complying with the IE FC RJ-45
standard for Industrial Ethernet
