Connecting
5.2 Ports
SCALANCE X-400
106 Operating Instructions, 06/2015, C79000-G8976-C186-12

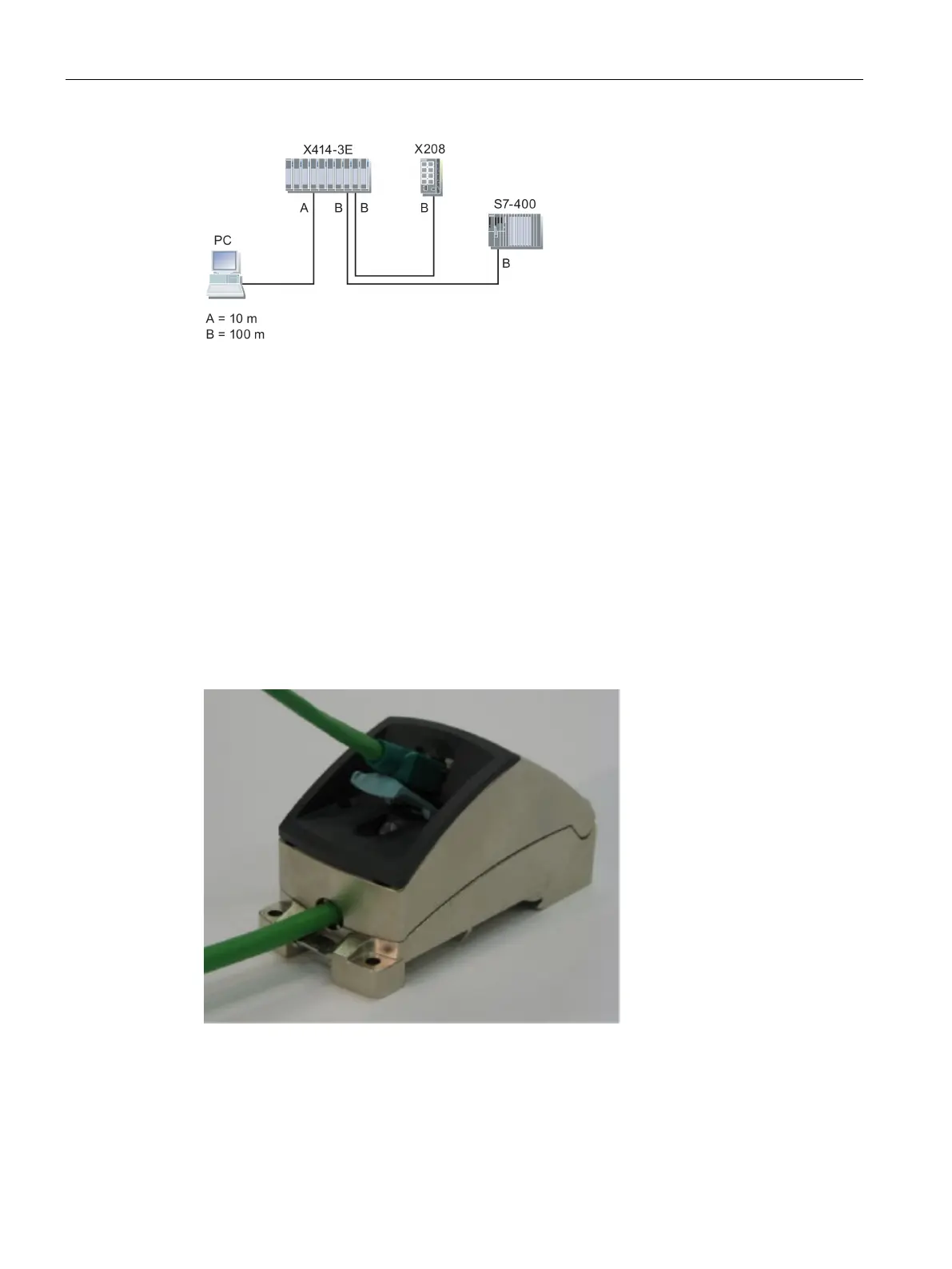

Figure 5-5 FastConnect cabling
A TP cord (1 Gbps)
B IE FC standard cable 2x2 (100 Mbps)
Connecting TP cord to FC cable
To connect TP Cord to FC cables, two IE FC RJ-45 modular outlet insert types are available:
● IE FC RJ-45 modular outlet insert 1GE
1 RJ-45 jack with 4x2 wire cable for 1 Gbps
● IE FC RJ-45 modular outlet insert 2FE
2 RJ-45 jacks each with 2x2 wire cable for 100 Mbps
With the IE FC RJ-45 modular outlet insert 1GE, the eight-wire FastConnect cable allows a
transmission rate of 1 Gbps.
Figure 5-6 IE FC RJ-45 modular outlet insert 1GE
With the IE FC RJ-45 modular outlet insert 2FE, the eight-wire FastConnect cable is split
over two RJ-45 jacks and allows a transmission rate of 2 x 100 Mbps.
