6.4 Operator controls
SCALANCE X-400
Operating Instructions, 06/2015, C79000-G8976-C186-12
117
6.4
Operator controls
6.4.1
DIL switches of the SCALANCE X414-3E
Availability
Only the SCALANCE X414-3E basic device has DIP switches.
With the SCALANCE X408-2 basic device you can make settings using software and some
settings with the SELECT/SET button, refer to the section "SELECT/SET button
(Page 121)".
Position
Below the labeling strip of the CPU module, on slot 4 there are the four DIP switches. These
DIP switches can have two states (ON/OFF).

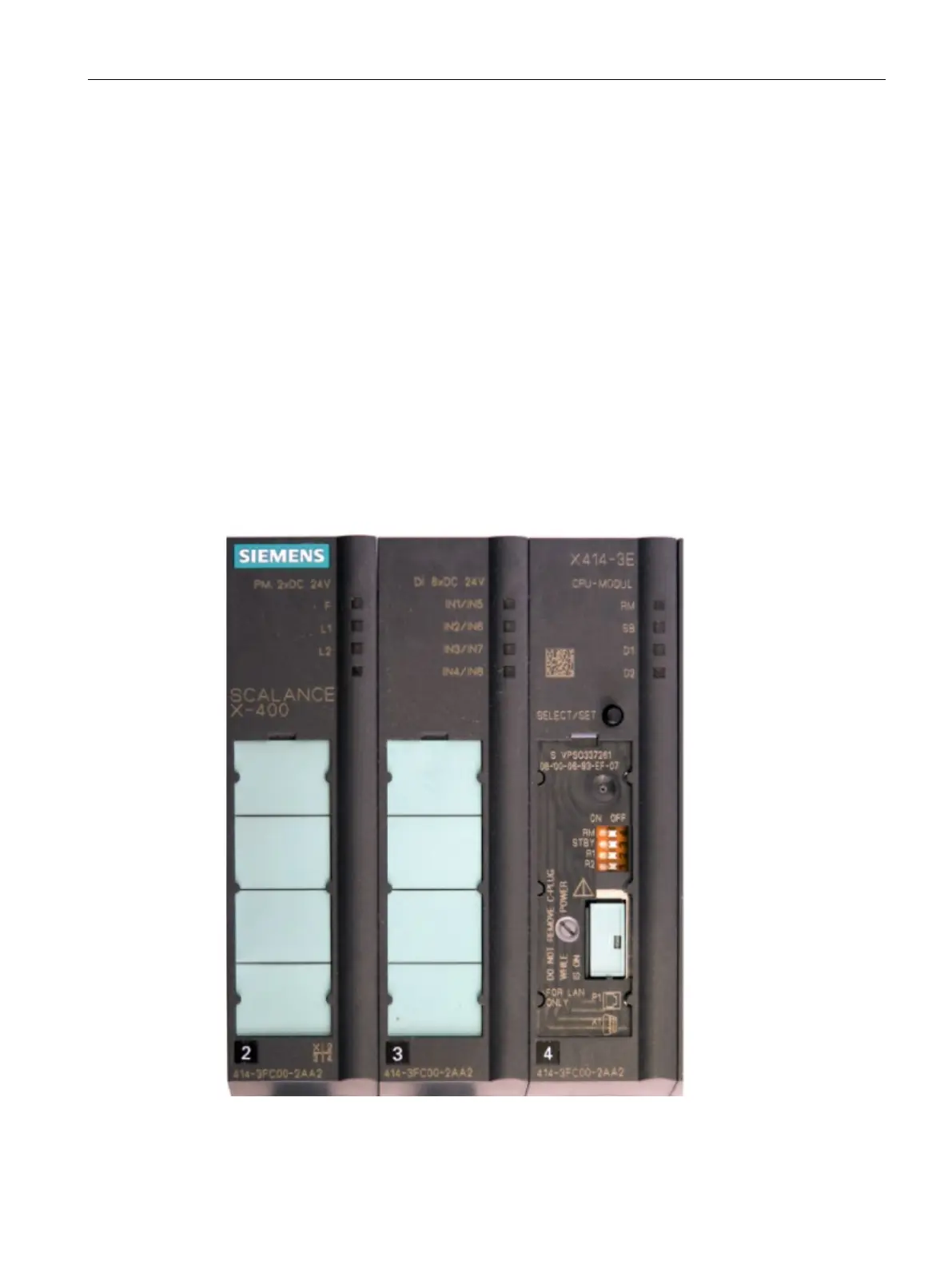

Figure 6-2 Power module, digital inputs and CPU module with operator controls on the SCALANCE
X414-3E
