Description
3.4 Description of the product
SCALANCE X-400
Operating Instructions, 06/2015, C79000-G8976-C186-12
73
SCALANCE X408-2 covers/dummy covers
Slots of the covers
Note
The protective caps for the media module terminal strips and the covers must be fitted in
all
slots that do not contain media modules.
For slots for twisted pair (8), the covers are recommended to protect the RJ-45 jacks.

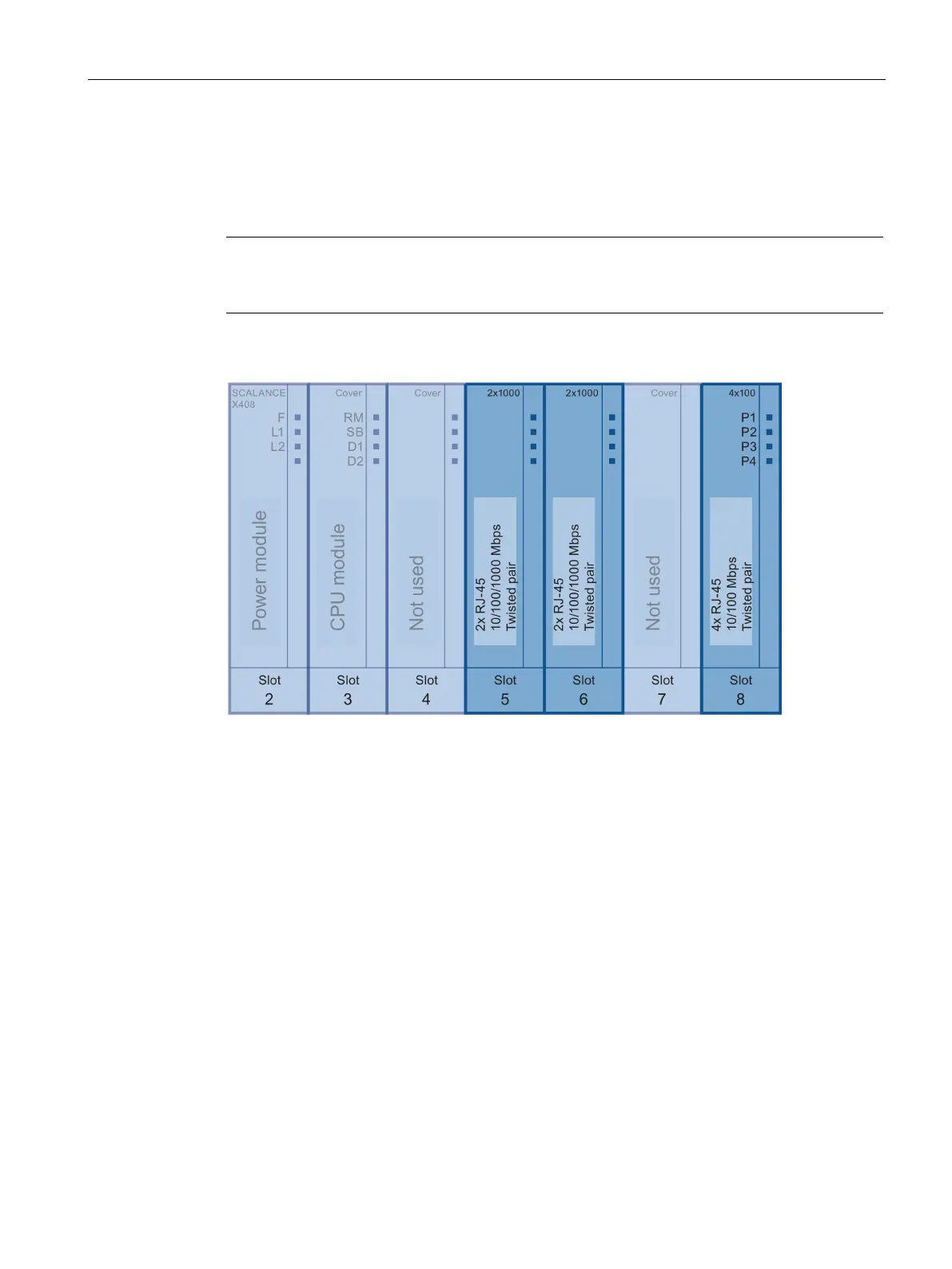

Figure 3-40 Possible slots of the covers
To cover slots not used for media modules or slots for twisted pair, the following types of
cover are available:
● CV490 2x1000
● CV490 4x100
● CV490 COVER
