3.4 Description of the product
SCALANCE X-400
74 Operating Instructions, 06/2015, C79000-G8976-C186-12
When using the gigabit ports for electrical cables (twisted pair), use cover type CV490
2x1000 on slot 5 and 6.

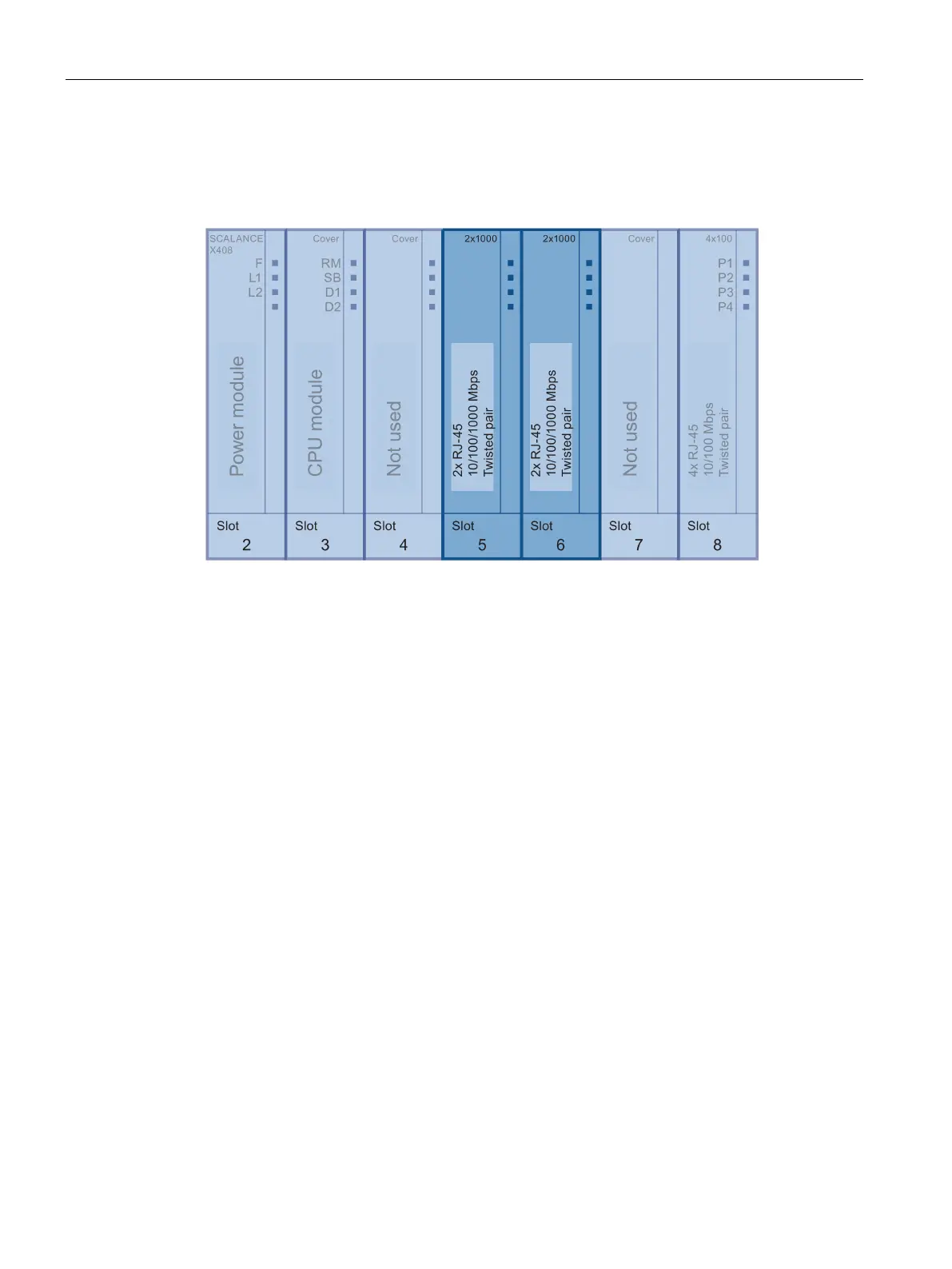

Figure 3-41 Slots 5 and 6 for cover CV490 2x1000
The port status of the two electrical gigabit ports 1 and 2 are displayed on the front panel of
the cover by two LEDs.
The status of each of the two Fast Ethernet ports 1 and 2 is displayed on the front panel of
the CV490 4x100 cover by two LEDs.
