Description
3.4 Description of the product
SCALANCE X-400
Operating Instructions, 06/2015, C79000-G8976-C186-12
75
The SCALANCE X408-2 provides you with four electrical Fast Ethernet ports on slot 8

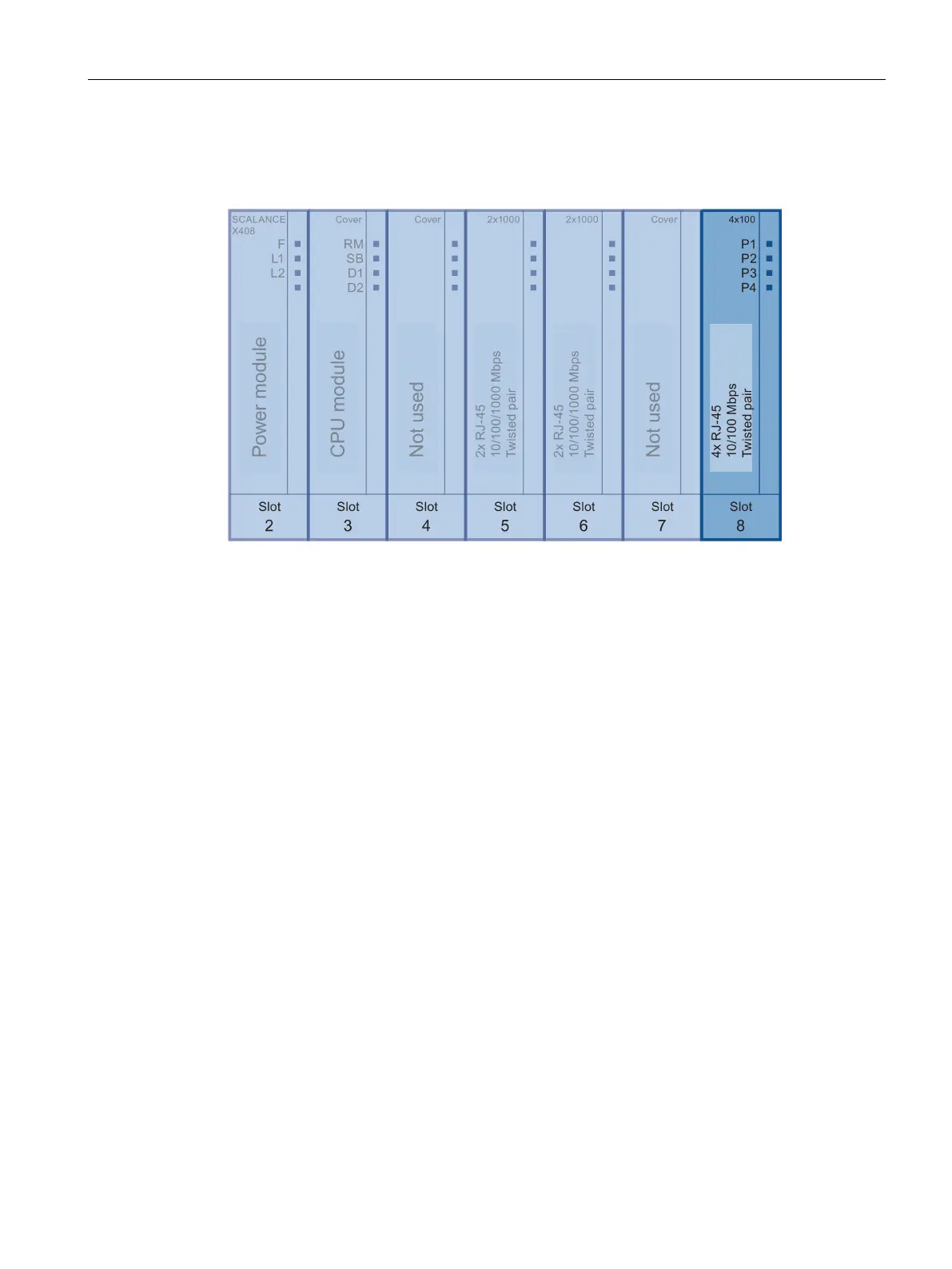

Figure 3-42 Slot 8 for the CV 490 4x100 cover
The status of each of the four Fast Ethernet ports 1 through 4 is displayed on the front panel
of the CV490 4x100 cover by four LEDs.
