Connecting
5.2 Ports
SCALANCE X-400
112 Operating Instructions, 06/2015, C79000-G8976-C186-12

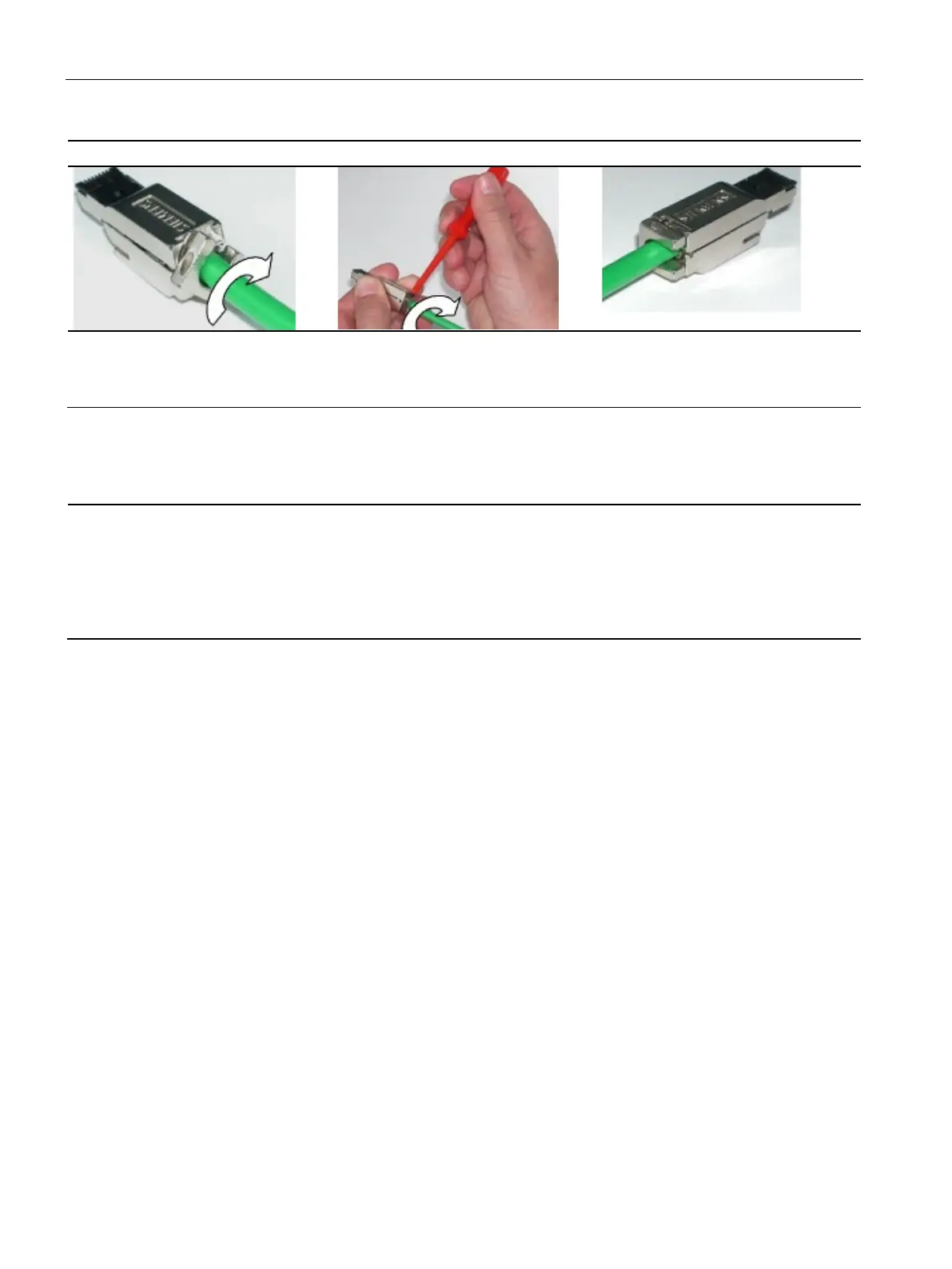

13. Close the cover and turn the lock-
ing mechanism with your hand as far
as possible in the direction of the ar-
14. Insert a 2.5 mm screwdriver into the
hole in the locking mechanism and
continue turning it as far as the limit
15. The connector is correctly locked
when the opening of the locking mech-
anism is at the side and the side edges
are flush with the connector.
Replace the knife cassette if the cut is
not clean or after stripping approxi-
mately
- 1500 cables with a PVC outer jacket
- 150 cables with a PUR outer jacket
The insulation piercing contacts of the
FC RJ-45 plug can be released and
recontacted up to 10 times.
Cable ends that have had a connector
fitted, must not be used twice but must
be cut off before fitting a new connect-
To assemble a cable with crossed over
wires, connect the color-coded wires at
one end of the cable in the connector
as shown below:
Connect white with yellow
Connect blue with orange.
