Dimension drawings
SCALANCE X-400
Operating Instructions, 06/2015, C79000-G8976-C186-12
157

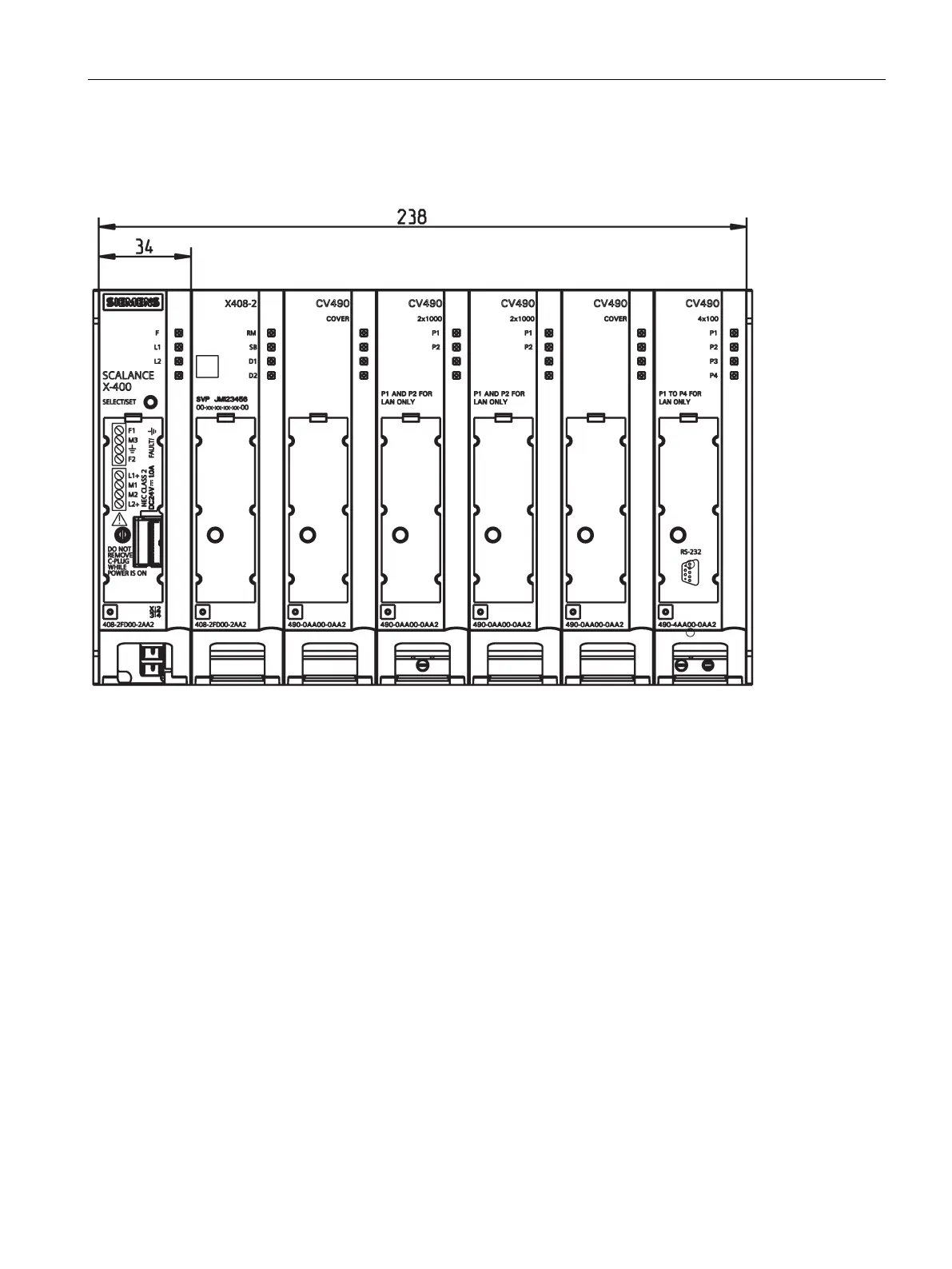

Dimension drawing X408-2
Figure 9-4 SCALANCE X408 front
