Dimension drawings
SCALANCE X-400
Operating Instructions, 06/2015, C79000-G8976-C186-12
159

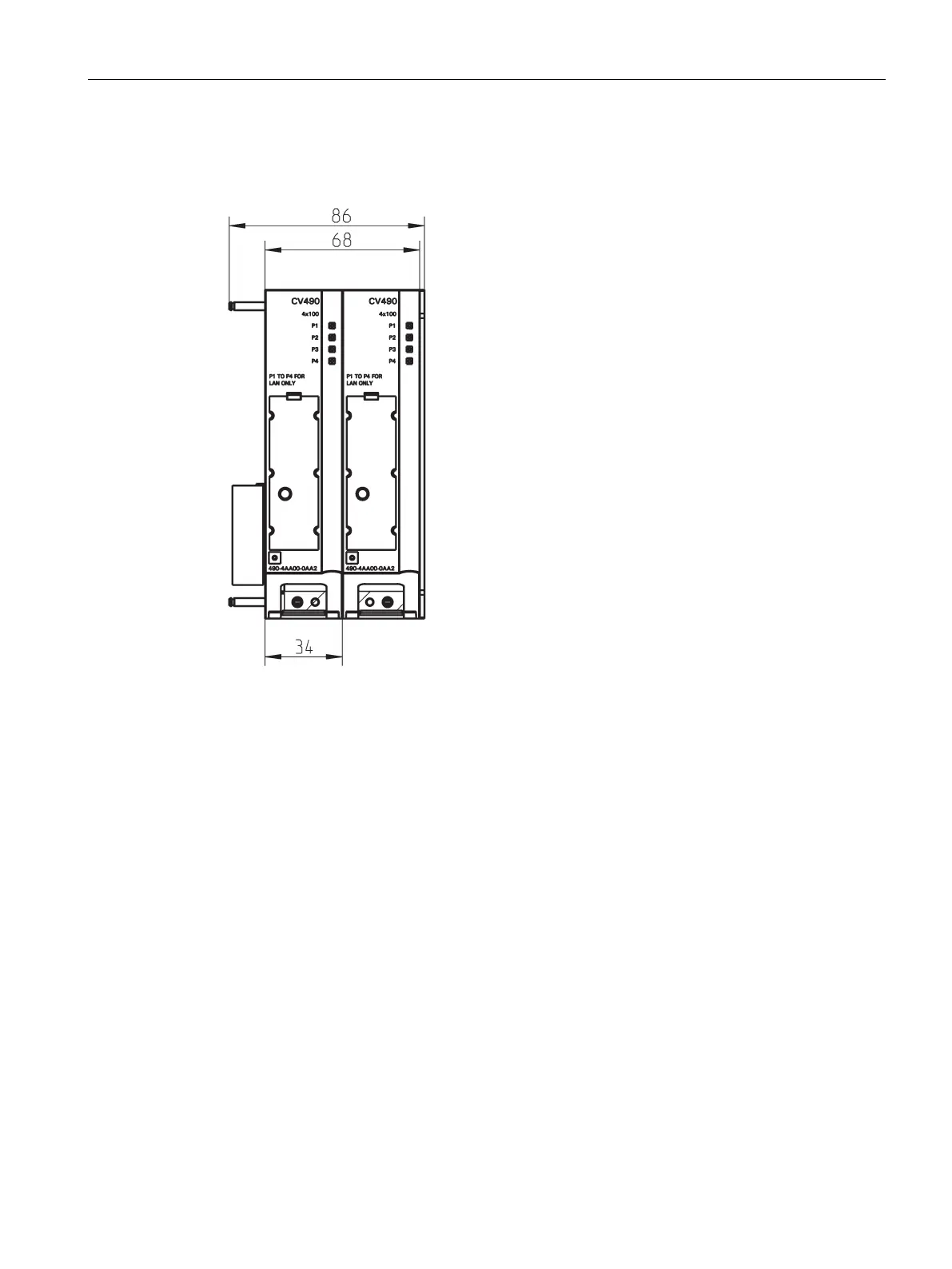

Dimension drawing EM495-8
Figure 9-7 Extender module EM495-8 front
