3.2 Network topologies
SCALANCE X-400
16 Operating Instructions, 06/2015, C79000-G8976-C186-12
Configuration example

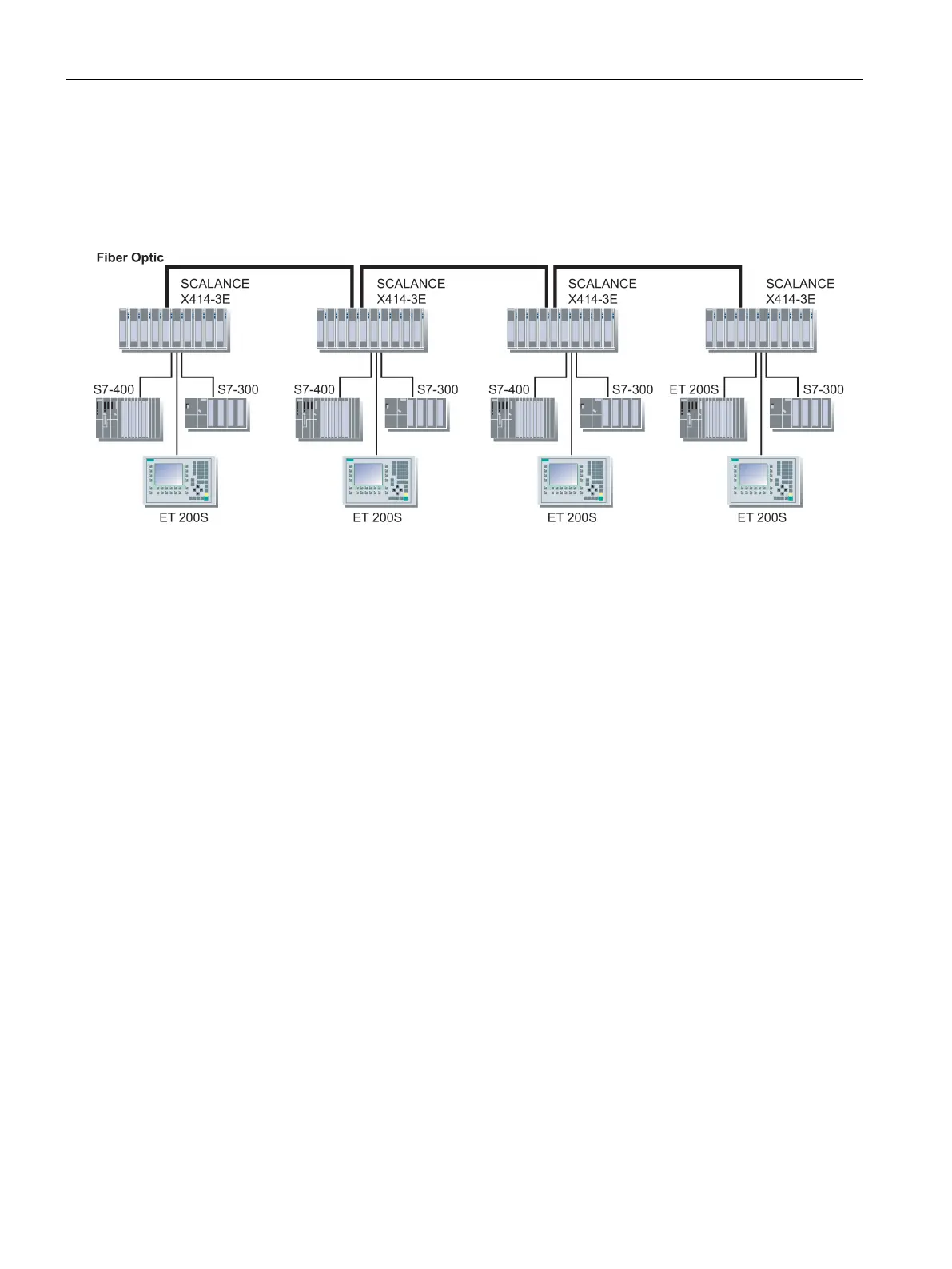

Sample configuration with SCALANCE X414-3E, SIMATIC S7-300/400 and operator panel
as end devices.
Figure 3-1 Linear structure (optical)
