Dimension drawings
SCALANCE X-400
162 Operating Instructions, 06/2015, C79000-G8976-C186-12

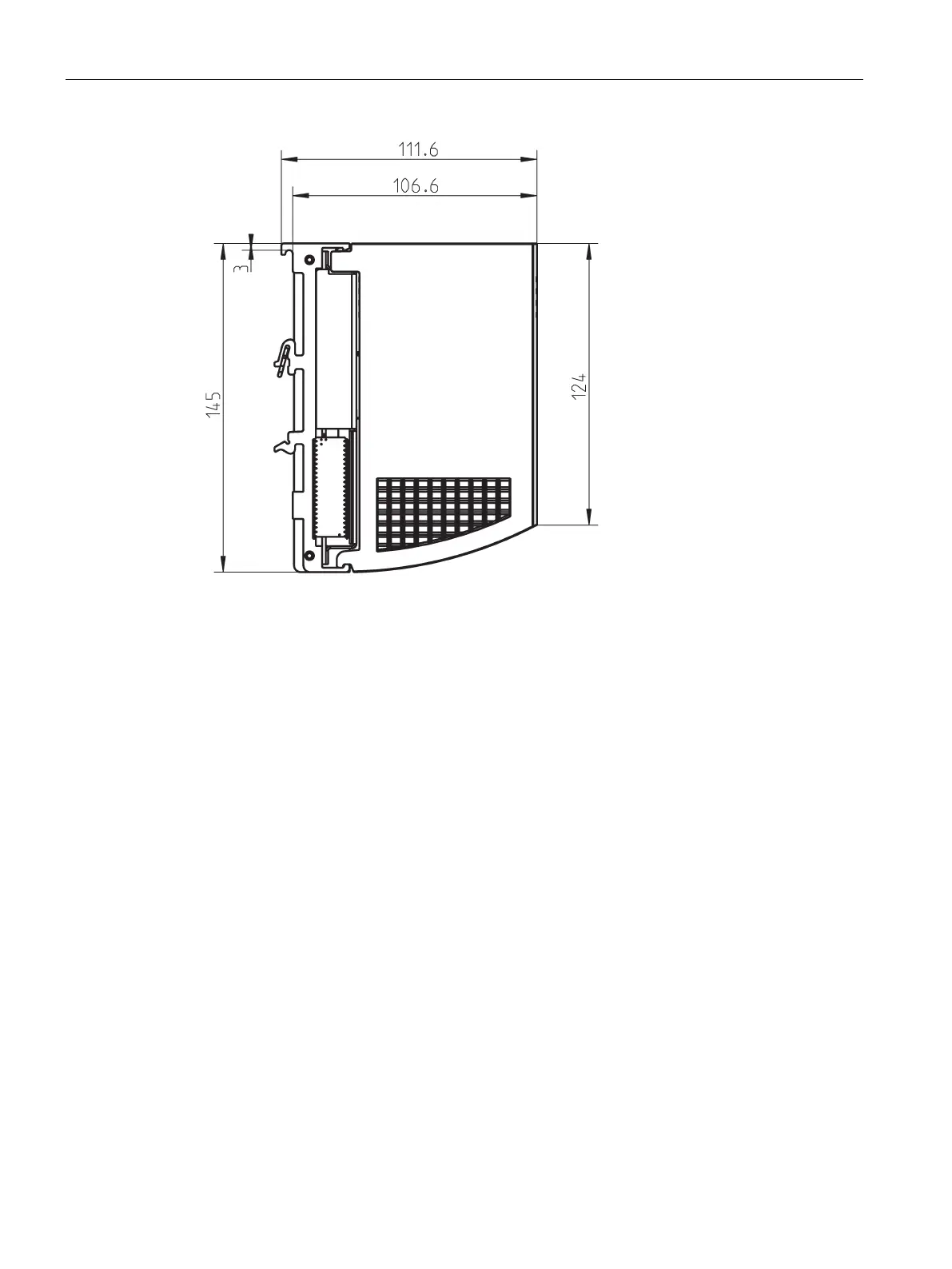

Figure 9-10 Extender module EM496-4 left
