Description
3.2 Network topologies
SCALANCE X-400
Operating Instructions, 06/2015, C79000-G8976-C186-12
21
Connection of other network segments or end devices
Just as with all other switches in the ring with redundancy manager, further end devices or
entire subnets can be connected to the ports listed in the table over twisted pair (TP cable).
Table 3- 8 Ports for further network segments or end devices
To all ports of slots 9-11 and
to the ports of a twisted pair extender module
All non ring ports
With the SCALANCE X414-3E, the use of a media module extender in the redundancy
manager and in all other switches in this network structure provides the option of connecting
further end devices or complete subnets with FO cable.
Sample configurations with SCALANCE X-400, SIMATIC S7-200/300/400, operator control
and monitoring system, H system, and PC as end devices.

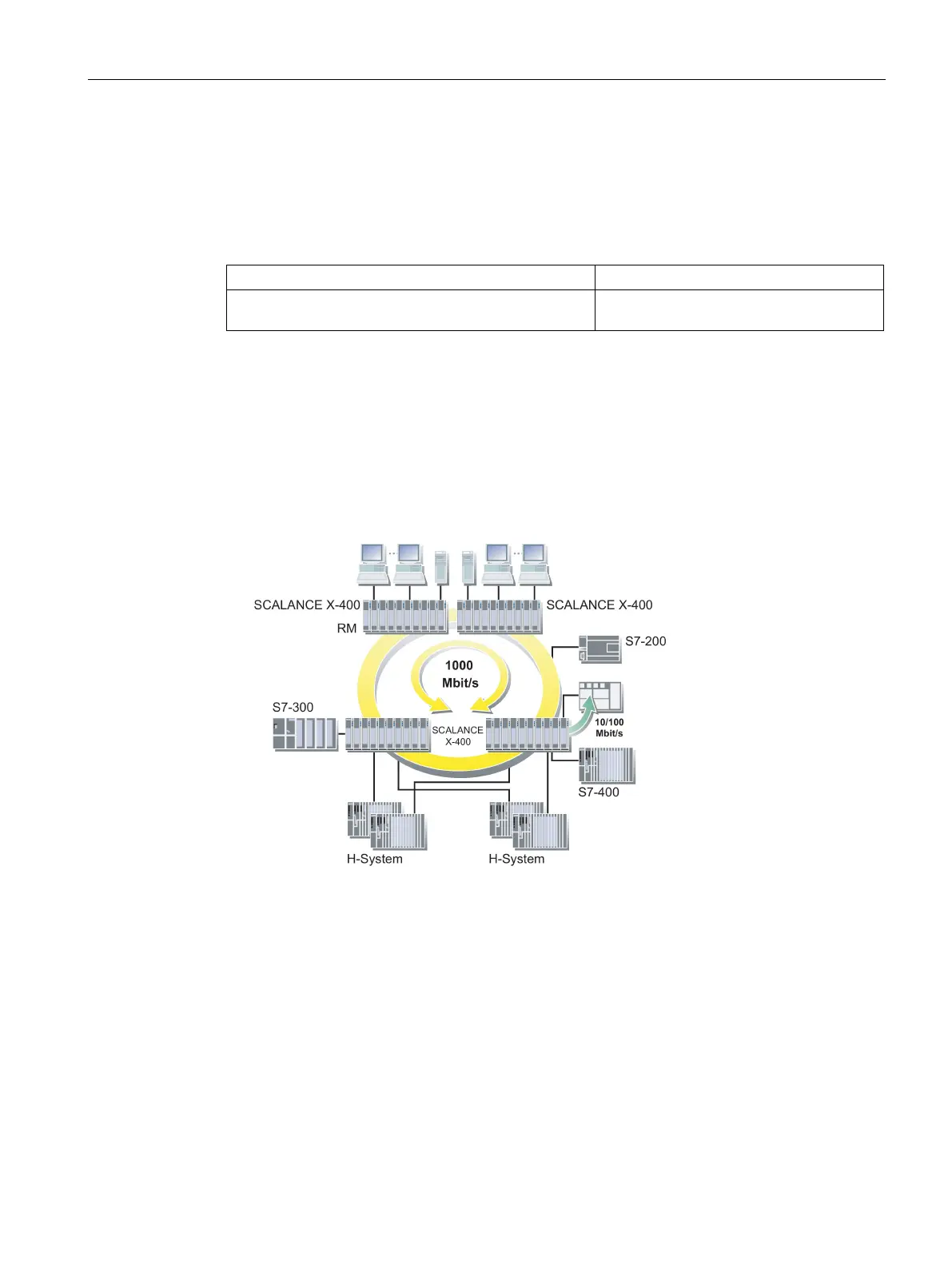

Figure 3-4 Gigabit ring with redundancy manager (RM)
