Description
3.4 Description of the product
SCALANCE X-400
36 Operating Instructions, 06/2015, C79000-G8976-C186-12

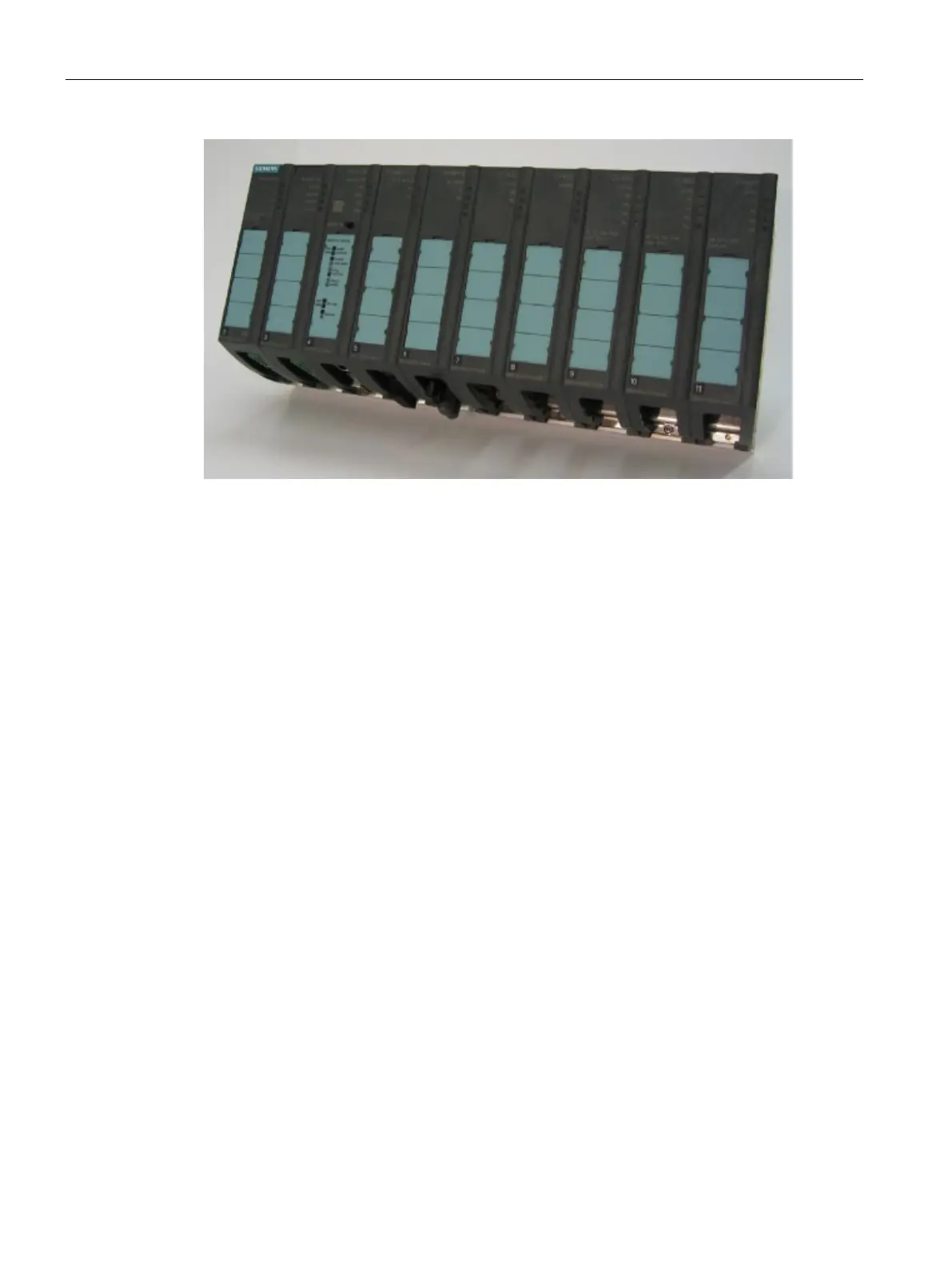

Figure 3-9 Basic device with media modules and covers
Components of the product
The following components are supplied with the SCALANCE X414-3E:
● Basic device with power module in slot 2, DI module with eight digital inputs in slot 3,
CPU module including C-PLUG in slot 4, protective caps for media module terminal strips
in slots 5, 6, and 7.
● 1 CV490 2x1000, cover of media module slot 5
2 CV490 2x100, cover of media module slots 6 and 7
1 CV490 Cover, dummy cover for slot 8
3 CV490 4x100, cover for slots 9 to 11
● SIMATIC NET Manual Collection CD
● Slot labels for slots 1 through 18
● 1 connector for power supply (4-pin)
● 1 connector for signaling contact (4-pin)
● 2 connectors for digital inputs (5-pin)
● 1 sheet with 15 labeling strips
