4.2.2 SCALANCE X306-1LD FE
Possible attachments
The SCALANCE X306-1LD FE provides the following options for the connection of end devices
or other network segments:
● 6 RJ-45 jacks
● 1 FO port (for single mode fiber)

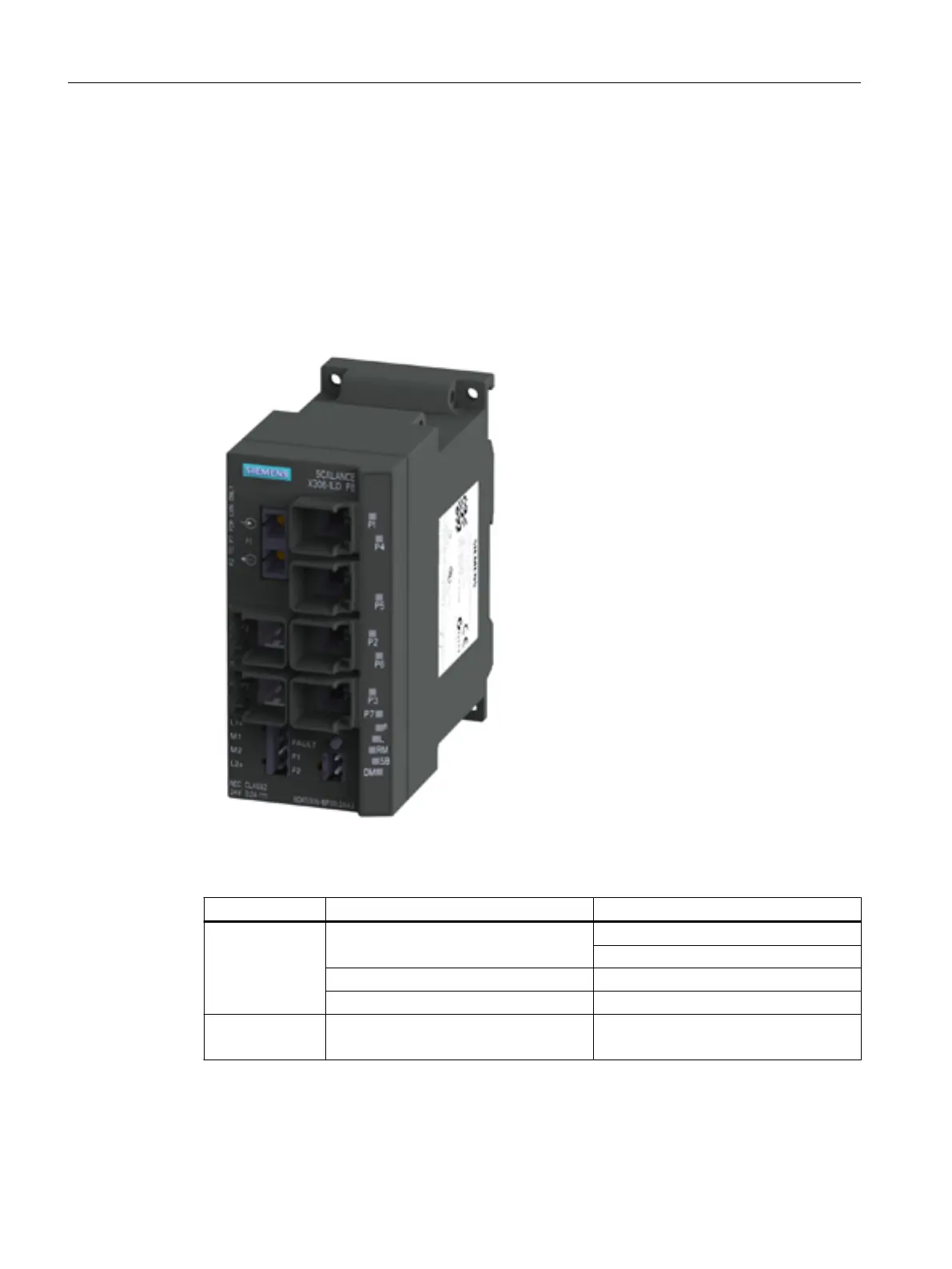

Figure 4-2 SCALANCE X306-1LD FE
Column 1 2
Port number P1 *) P4
P5
P2 P6
P3 P7
Connection type Electrical: Fast Ethernet
*) Optical: Fast Ethernet
Electrical: Fast Ethernet
Device description
4.2 Product properties and device views
SCALANCE X-300
22 Compact Operating Instructions, 11/2019, A5E00982643-18
