4.2.12 SCALANCE X320-3LD FE
Possible attachments
The SCALANCE X320-3LD FE provides the following options for the connection of end devices
or other network segments:
● 20 RJ-45 jacks
● 1 FO port (for multimode fiber)
● 2 FO ports (for single mode fiber)

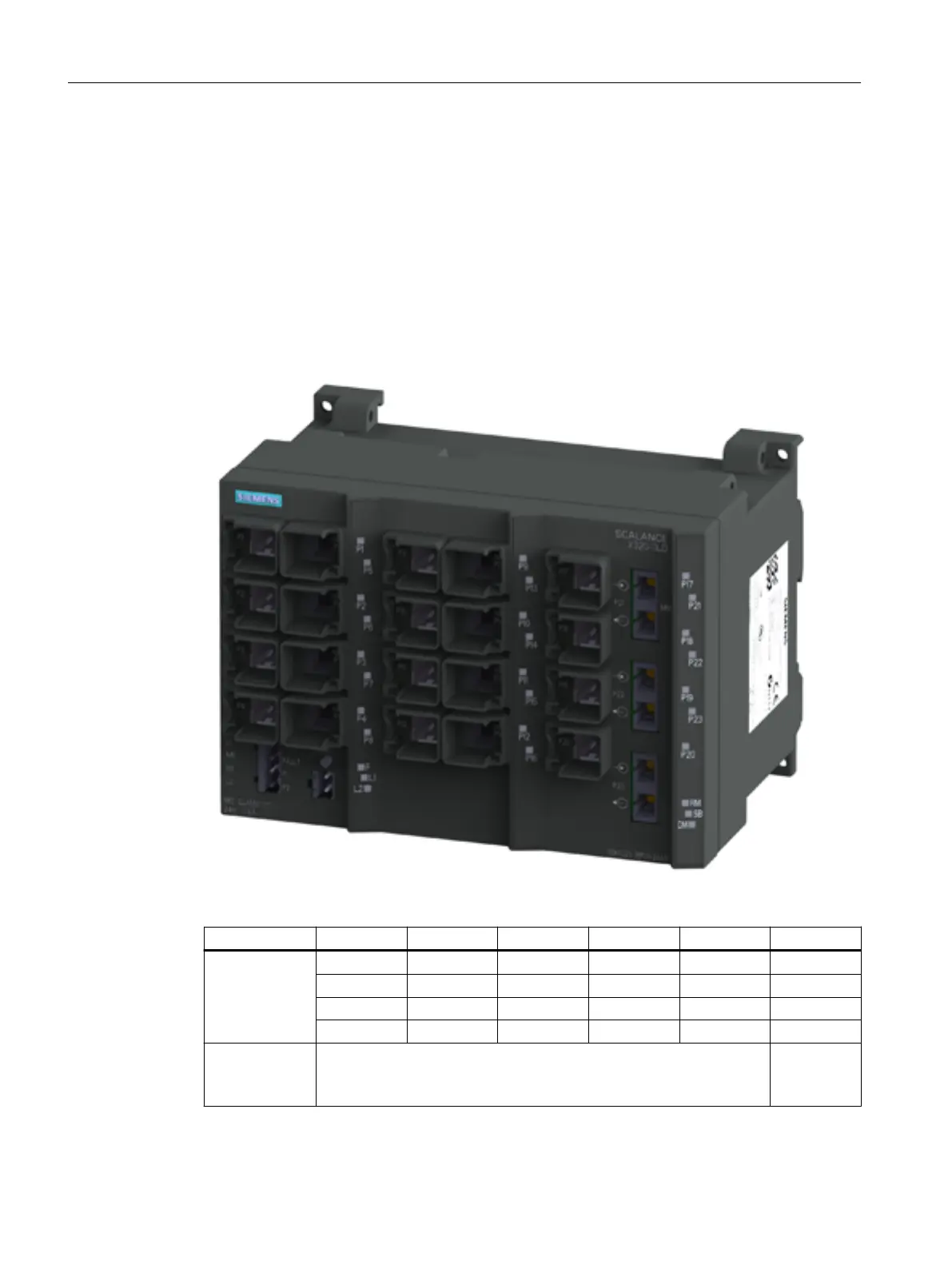

Figure 4-12 SCALANCE X320-3LD FE
Column 1 2 3 4 5 6
Port number P1 P5 P9 P13 P17 P21
P2 P6 P10 P14 P18 P22
P3 P7 P11 P15 P19 P23
P4 P8 P12 P16 P20 -
Connection
type
Electrical: Fast Ethernet Optical:
Fast Ether‐
net
Device description
4.2 Product properties and device views
SCALANCE X-300
32 Compact Operating Instructions, 11/2019, A5E00982643-18
