4.2.11 SCALANCE X320-1FE
Possible attachments
The SCALANCE X320-1 FE provides the following options for the connection of end devices or
other network segments:
● 20 RJ-45 jacks
● 1 FO port (for multimode fiber)

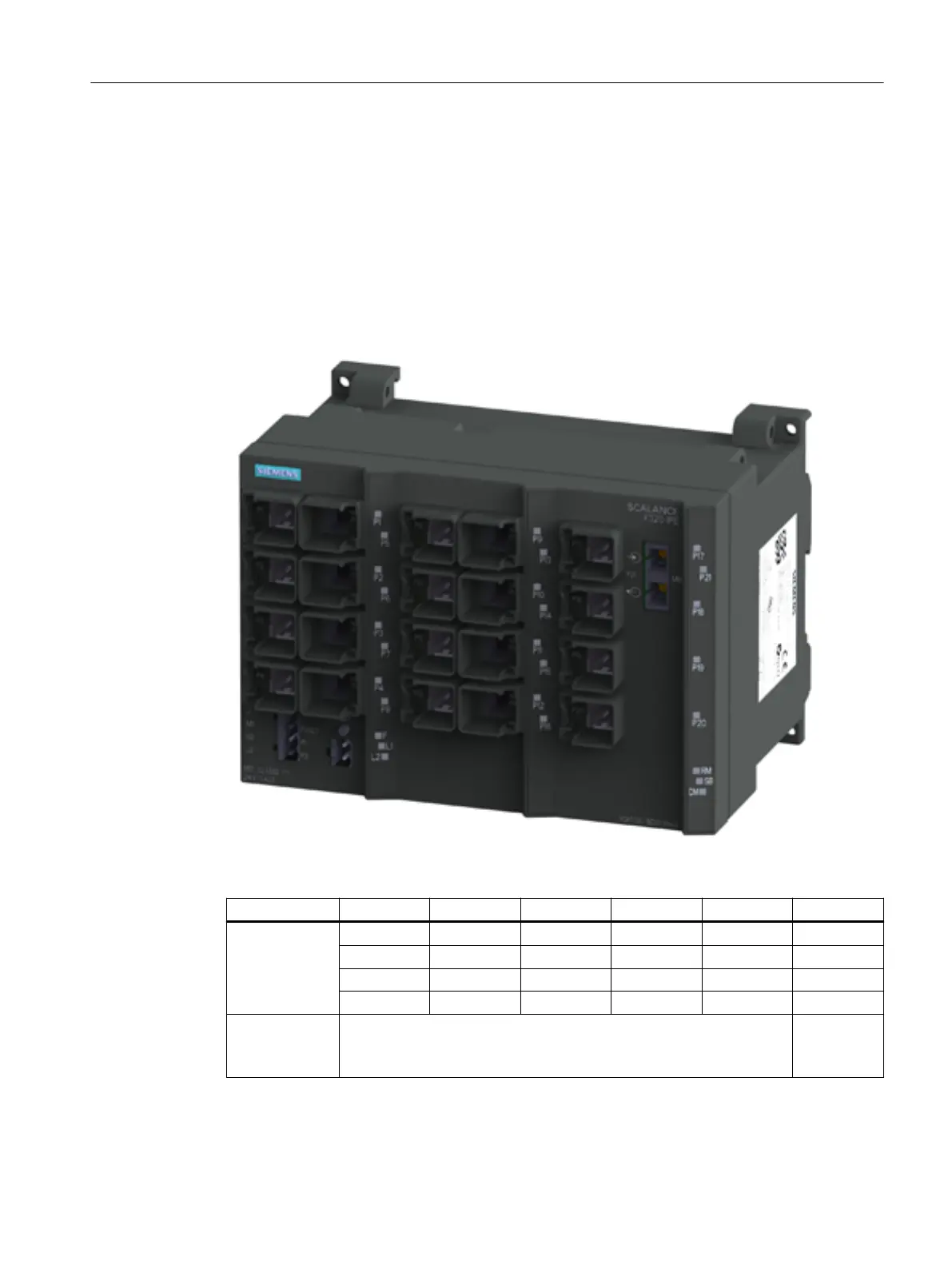

Figure 4-11 SCALANCE X320-1 FE
Column 1 2 3 4 5 6
Port number P1 P5 P9 P13 P17 P21
P2 P6 P10 P14 P18 -
P3 P7 P11 P15 P19 -
P4 P8 P12 P16 P12 -
Connection
type
Electrical: Fast Ethernet Optical:
Fast Ether‐
net
Device description
4.2 Product properties and device views
SCALANCE X-300
Compact Operating Instructions, 11/2019, A5E00982643-18 31
