6.6 24 VDC signaling contact
Connecting the signaling contact
The signaling contact is connected to a 2-pin plug-in terminal block.
The signaling contact can be subjected to a maximum load of 100 mA (safety extra low voltage
SELV 12 VDC / 24 VDC).

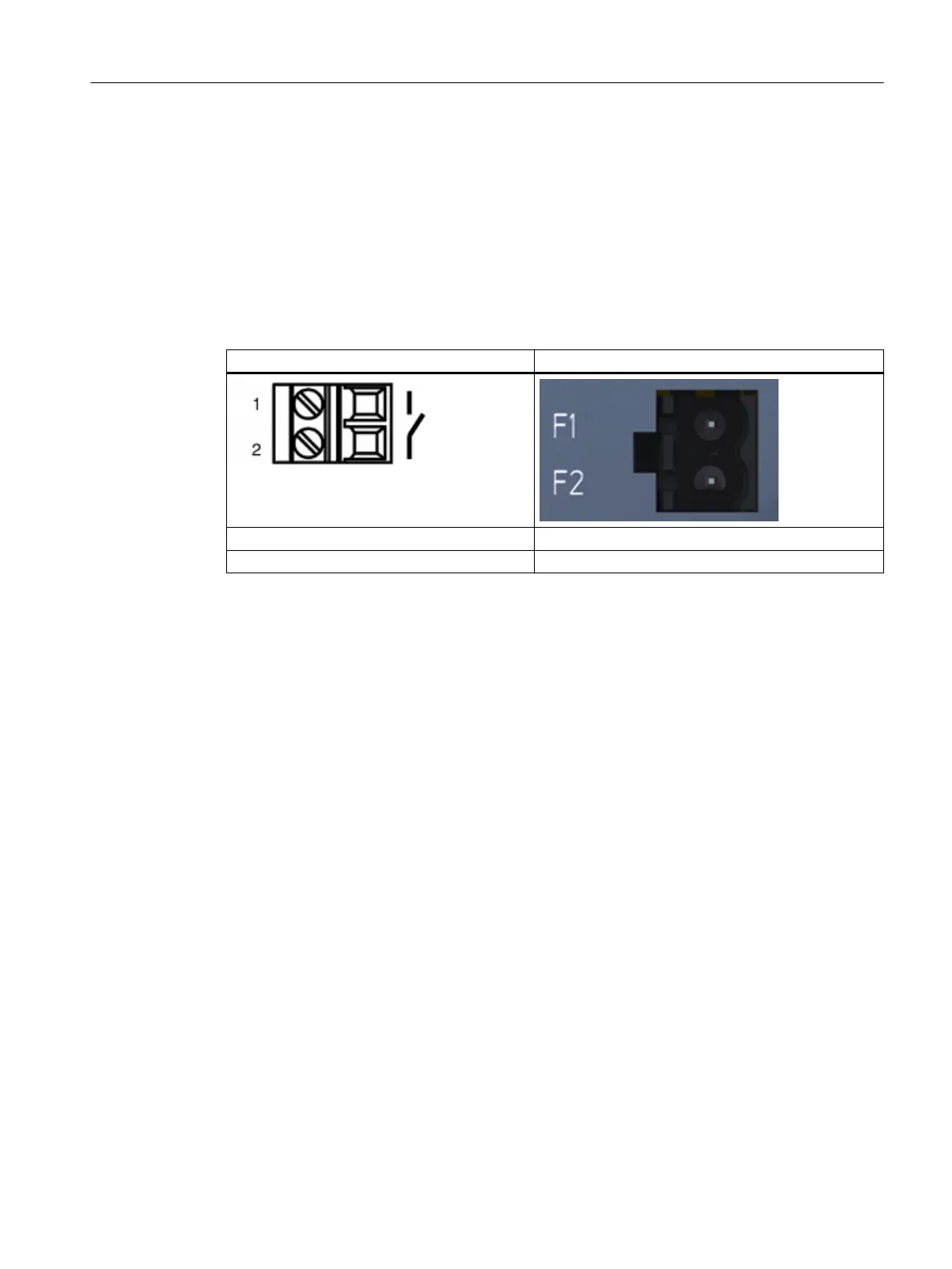

Table 6-1 Pin assignment of the signaling contact
Pin number Assignment (example)
Pin 1 F1
Pin 2 F2
Connecting
6.6 24 VDC signaling contact
SCALANCE X-300
Compact Operating Instructions, 11/2019, A5E00982643-18 55
