4.2.6 SCALANCE X308-2LD
Possible attachments
The SCALANCE X308-2LD provides the following options for the connection of end devices or
other network segments:
● 8 RJ-45 jacks
● 2 FO ports (for single mode fiber)

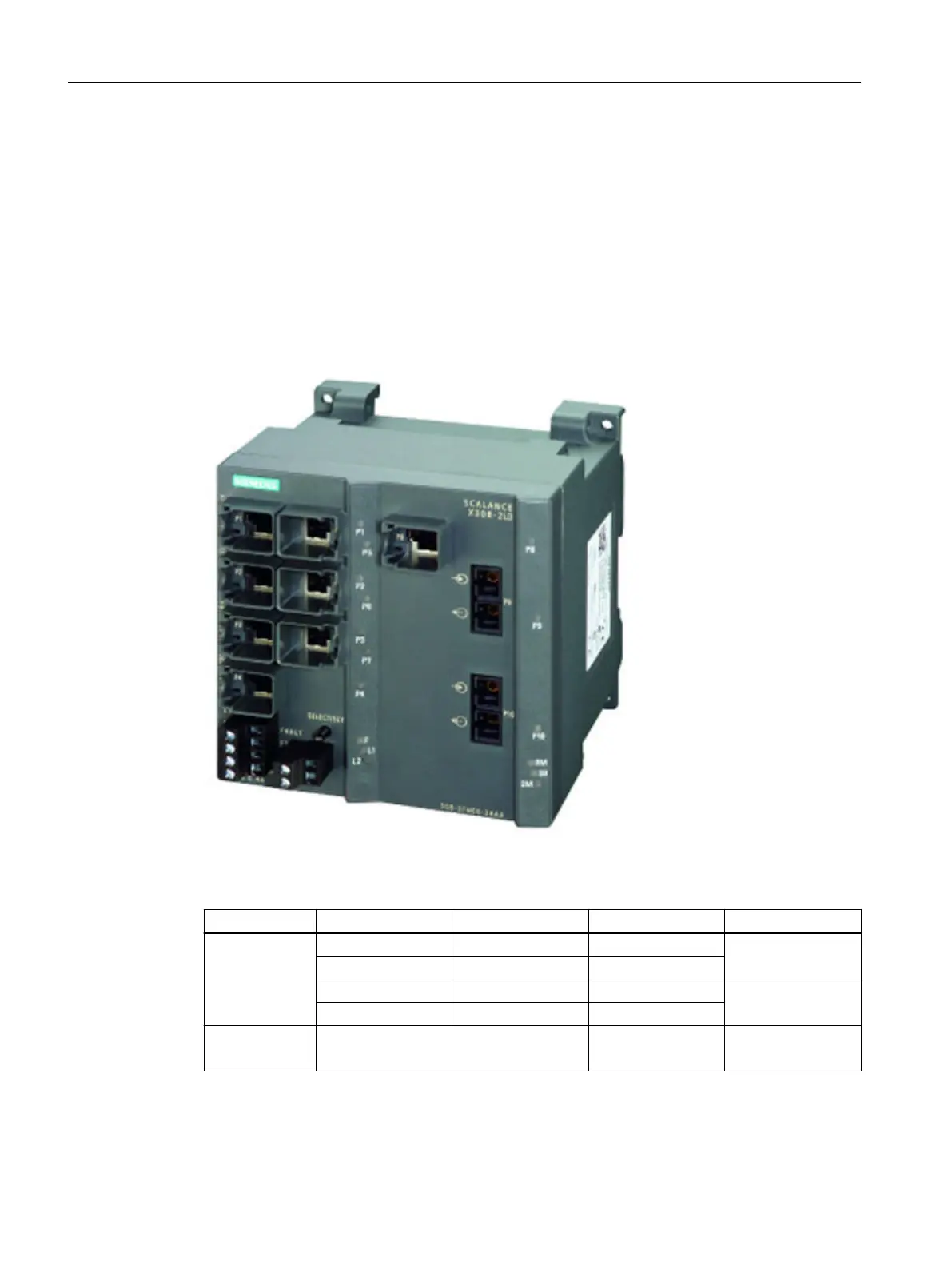

Figure 4-6 SCALANCE X308-2LD
Column 1 2 3 4
Port number P1 P5 P8 P9
P2 P6 -
P3 P7 - P10
P4 - -
Connection
type
Electrical: Fast Ethernet
Electrical:
Gigabit Ethernet
Optical:
Gigabit Ethernet
Device description
4.2 Product properties and device views
SCALANCE X-300
26 Compact Operating Instructions, 11/2019, A5E00982643-18
