Removing
To remove an IE Switch X‑300 from the DIN rail:
1. Disconnect all cables from the switch.
2. Release the lower part of the IE Switch X‑300 from the DIN rail with a screwdriver and pull
the lower part of the switch away from the DIN rail.

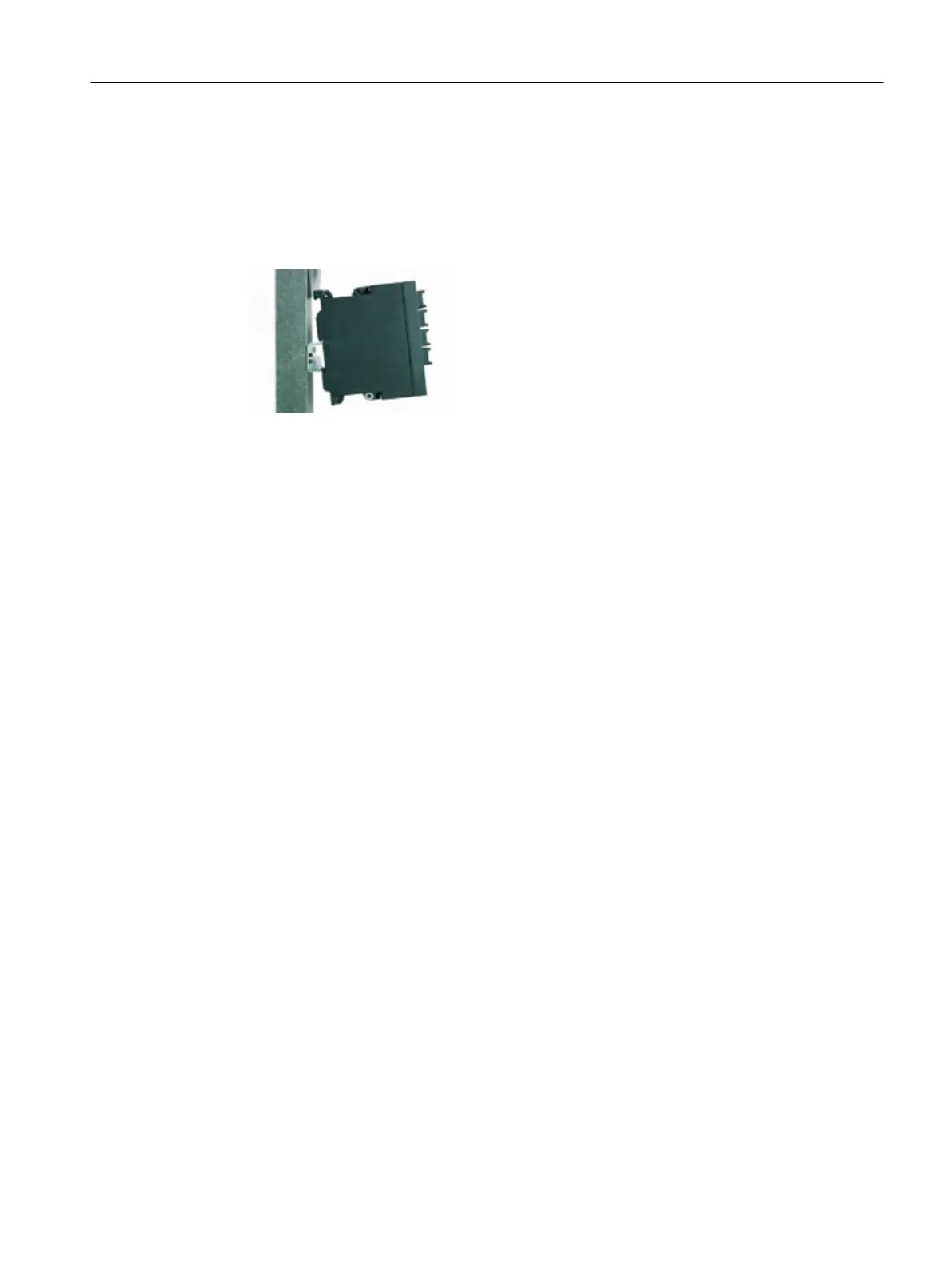

Figure 5-2 Removing an IE Switch X-300 from a DIN rail (35 mm)
Removing an IE Switch X‑300
1. Push the X‑300 down.
2. Swing the device upwards.
No tools are necessary for removing the device.
Assembling
5.2 Installation on a DIN rail
SCALANCE X-300
Compact Operating Instructions, 11/2019, A5E00982643-18 45
