&XUUHQW'&0'H[W'&0'
'&0'PDVNLQJ)%/2&.
)%/2&.ORJLF
$7':$7':
3
'&'0'PDVN)%/2&.
3
'&'0'PDVNILHOGEXV
'&0'PDVNLQJILHOGEXV
76:
'&0'([WHQ'&0'
352),1(7352),%86FRQWH[W

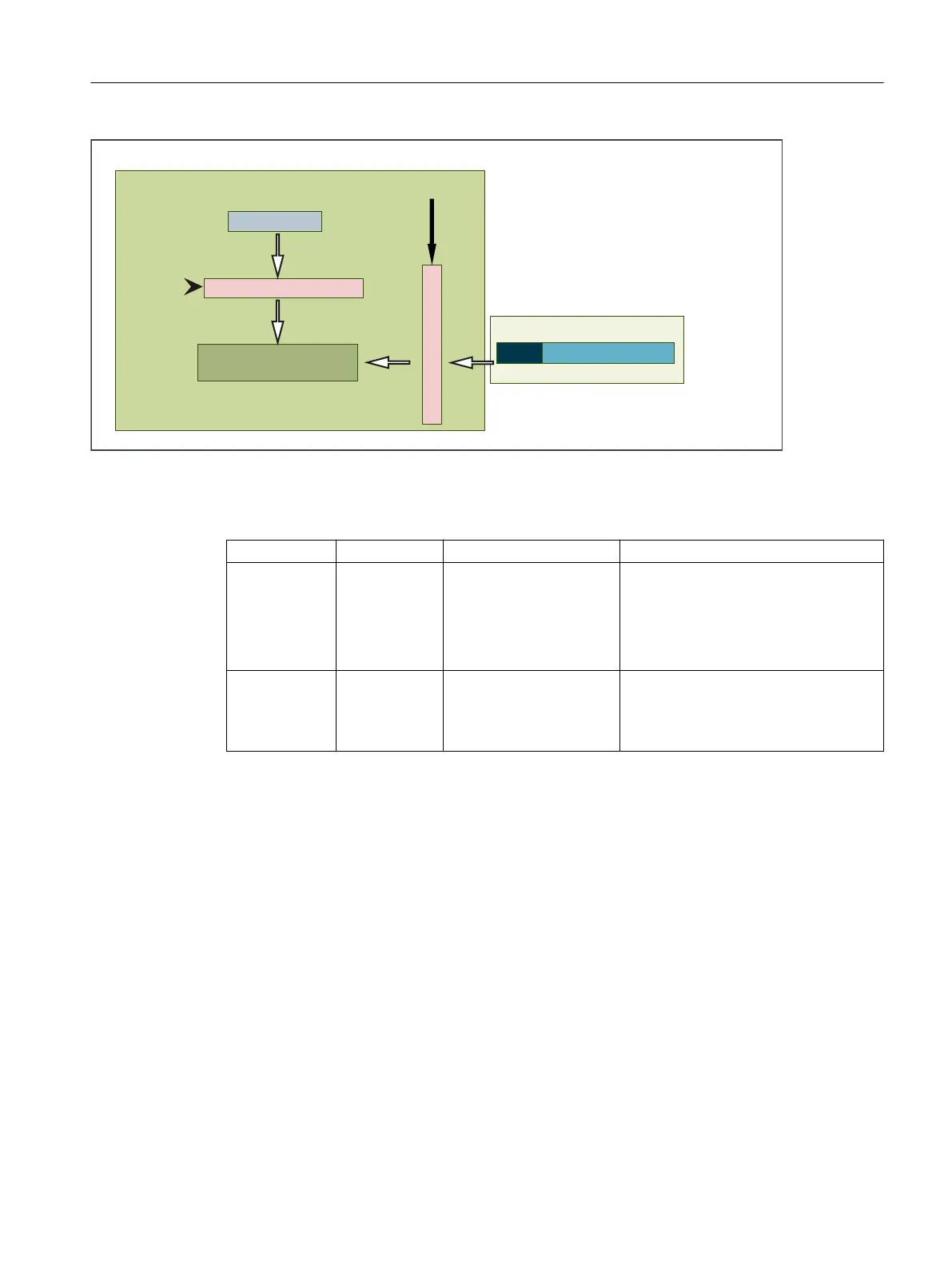

The two masks are stored in the following parameters:
Table 4-11 Masking of door commands
Parameter ID Value range Default value: Description
p2080 0..65535 0xFFFF
(All bits of TSW1 from the
󹪝eldbus are allowed to
pass.)
DCMD masking 󹪝eldbus
Each bit in the mask 󹪝lters the corre‐
sponding bit in TSW1:
0: CMD bit is not allowed to pass
1: CMD bit is allowed to pass
p2081 0..65535 0xFFFF
(All bits of the DCMD/ext.
DCMD are allowed to
pass.)
DCMD masking FBLOCK
0: CMD bit is not allowed to pass
1: CMD bit is allowed to pass
Because DCMD is normally not to be considered bitwise (but as a numeric value), the mask for
DCMD should be either 0xFF or 0x00. As soon as the user enters a value unequal to 0 (0x01 to
0xFE), it is immediately and automatically corrected to 0xFF by the 󹪝rmware.
Example:
To deactivate the NDG switchover via the 󹪝eldbus, the parameter value must be set to 0xFBFF
(see section (Page 319)).
4.3.12 Test run (as of V1.12)
Description of function
The test run is used to measure the closing and opening forces during 󹪝nal inspection and
commissioning. There is no reversing reaction during the test run.
The test run can be activated with the menu command "Test run" in the "General setup" menu
and via the 󹪝eldbus interface, parameter p95. The test run enables the reversing to be
deactivated after blocking for exactly the next door command. Afterwards, the test run function
SIDOOR functions
4.3 Extended functions
ATD4xxW for industrial applications
System Manual, 06/2022, A5E51901827B AA 109
