2-6
C7-621 / C7-621 AS-i Control Systems
C79000-G7076-C621-01
2.3 Location of the C7
When installing the C7, please remember the following points:
S The thickness of the switching panel can be between 1 and 4 mm. Make
sure that the sealing ring makes a tight seal all round.

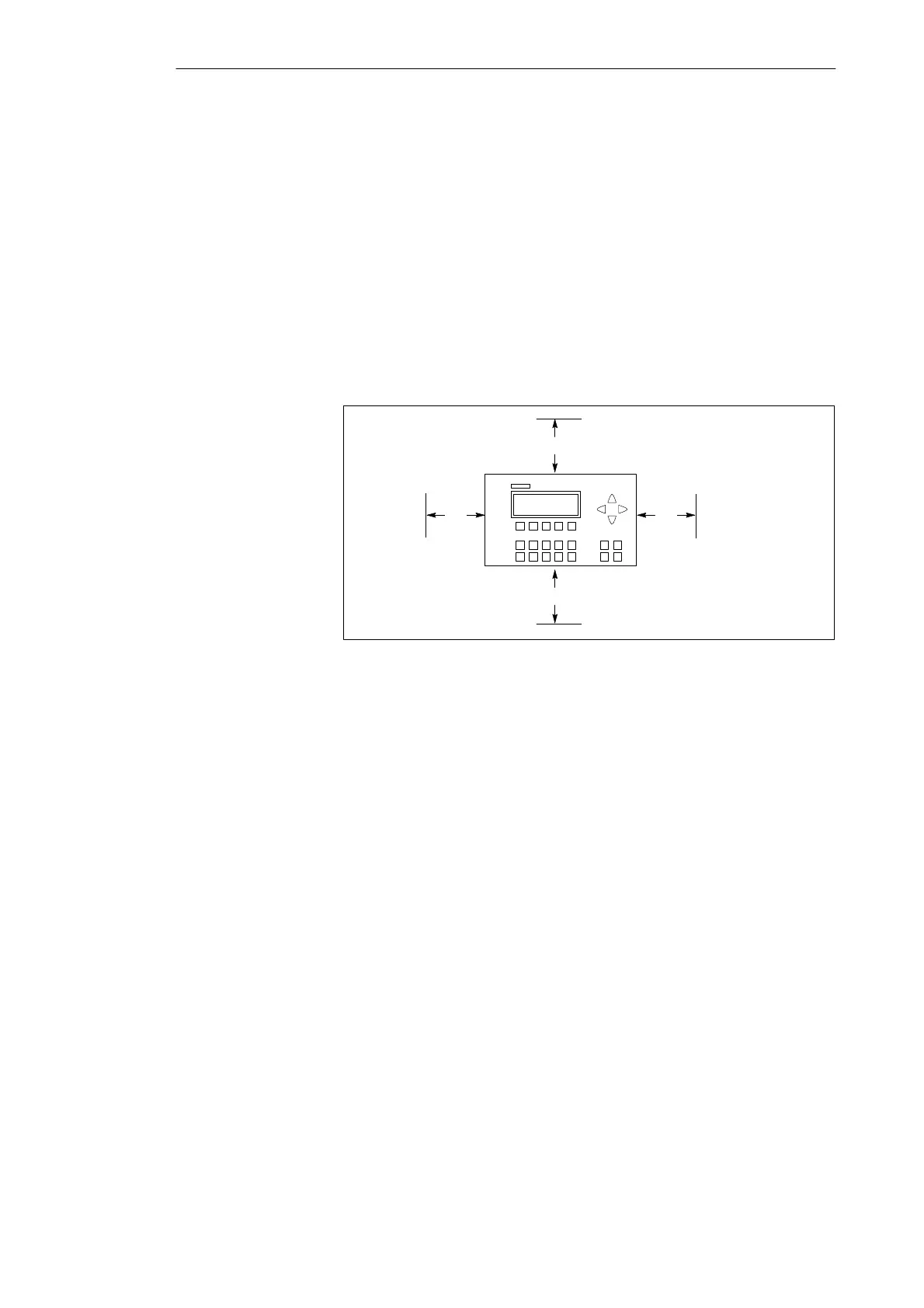

S There must be a clearance of at least 50 mm above and below and 70 mm
at the sides of the C7 as shown in Figure 2-6.
S Make sure that the sealing ring on the front panel sits correctly.
S Choose a location for the C7 away from direct sunlight.
50
50
70 70
Figure 2-6 Minimum Clearances when Installing the C7
Points to Note
When Installing
the C7
Installing and Preparing the C7
