Description

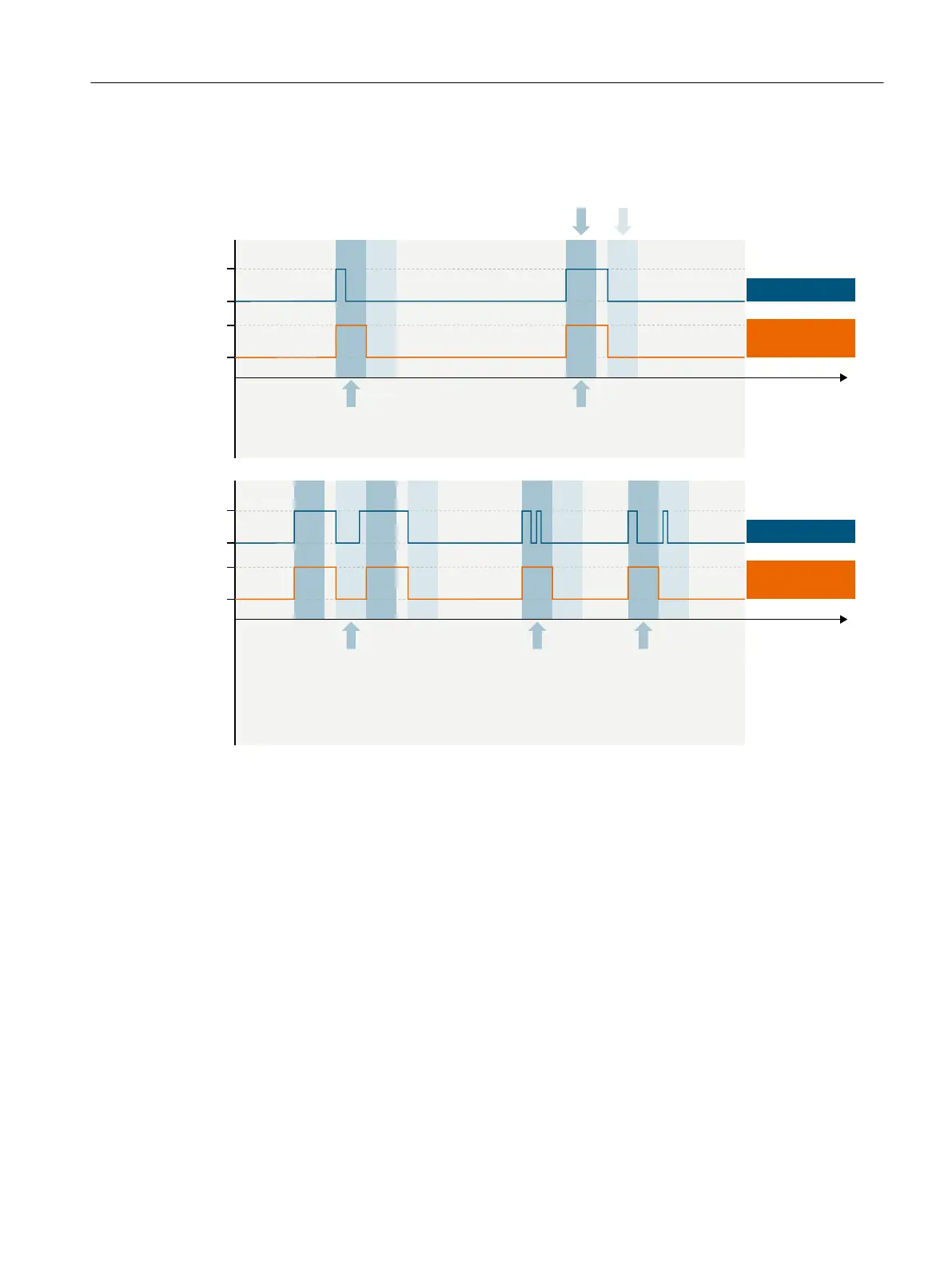

The gure below uses examples to show whether and how input pulses are changed.
Process signal
"processed"
input signal
Input is shorter than T
1
and is
extended to T
1
Input is longer than T
1
and is
not changed
Process signal
"processed"
input signal
The second pulse occurring during
the current pulse stretching is
postponed until the current pulse
stretching has expired.
Short pulses that occur during a
running pulse stretching are
ignored.
Pulse stretching time
for 0 signal
Pulse stretching time
for 1 signal
t
t
T
1
Pulse stretching parameter
6.3.9 Hardware interrupts positive edge [ID:151040570507]
Denition
Species if a hardware interrupt should be generated for a rising edge.
6.3.10 Hardware interrupts negative edge [ID:151040580107]
Denition
Species if a hardware interrupt should be generated for a negative edge.
Parameters
6.3Explanation of the module/channel parameters
DI 16x24VDC PA
Equipment Manual, 06/2023, A5E51654101-AA 25
