Configuring And Operating The SIMATIC Field PG
3-3
SIMATIC Field PG Manual
A5E00075760-04
Setting up your SIMATIC Field PG
Find a comfortable and safe working position for your SIMATIC Field PG.
1. Put the SIMATIC Field PG down on its base on an even surface at a
comfortable working height and distance.
2. Ensure there is an easily accessible mains outlet near your place of work.
3. Make sufficient desk space available to connect peripheral devices.
4. Open the display, by pulling the slide locks at the side of the display unit
towards the front.
5. Fold up the display and adjust it to a comfortable angle of inclination. The
display angle is adjustable from 0 ... 180.
Display lock

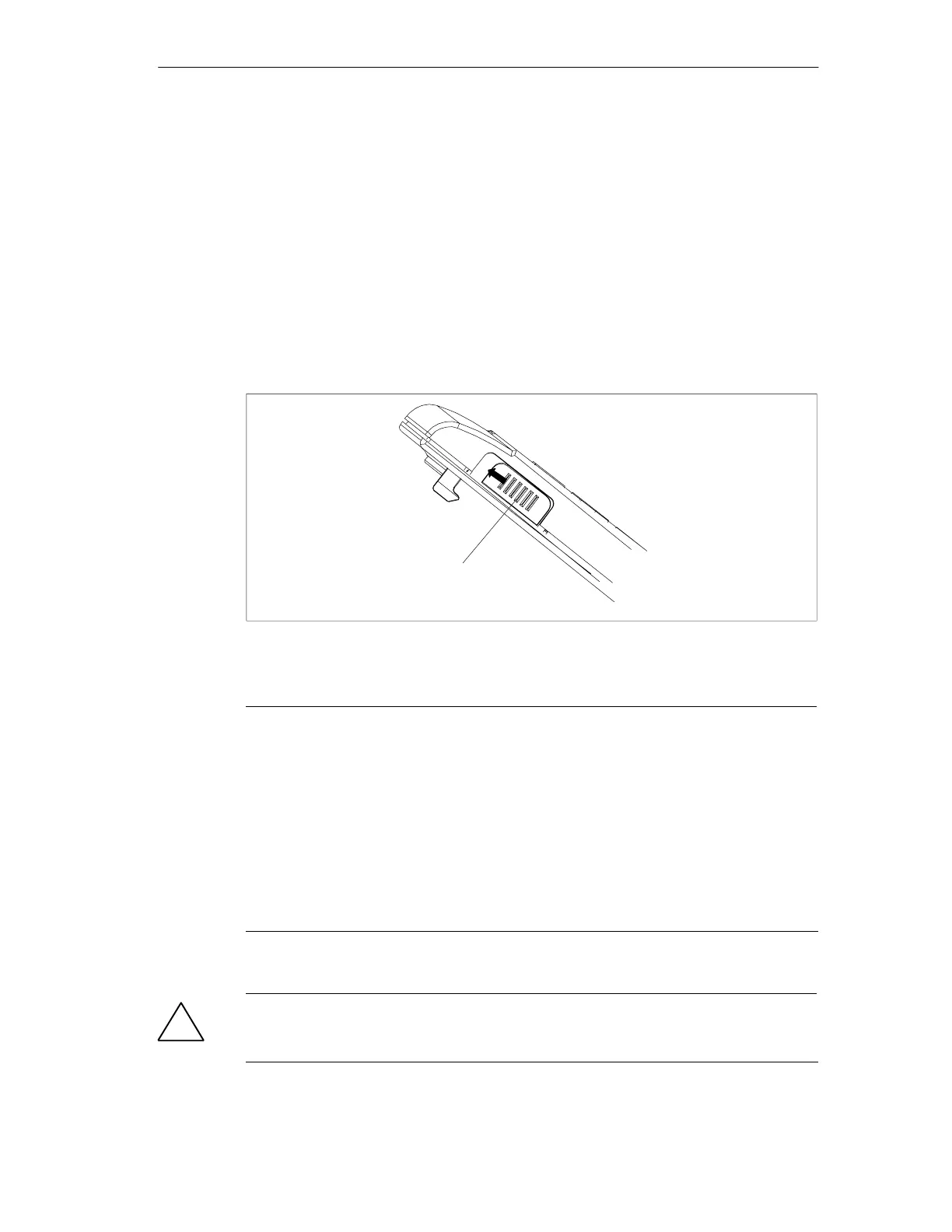

Fig. 3-1 Opening the Display
Caution
Always put the Field PG down on its base. If you put it down on its interface side
you risk that it will fall over and damage sensitive internal components.
Moisture ingress can damage the PG.
If you transport the device in cold weather and if it is exposed to extreme tempera-
ture fluctuation you have to acclimatize it to room temperature before you start to
operate it.
Do not switch on the device until inside condensation has dried off completely.
This is the case, for example, with a temperature rise from -20 °C to + 20 °C and
after a waiting period of approx. 12 hours.
!
Warning
The computer casing is made of magnesium. Contact with an external open fire
source bears the risk of fire / spreading fire.
