4.1 Installing Memory Expansion Submodules
Standard Memory
The motherboard has 2 slots for 144 pin SO DIMM memory submodules. This
allows you to expand the memory capacity of your SIMATIC Field PG to a
maximum of 512 Mbytes.
Memory Submodules

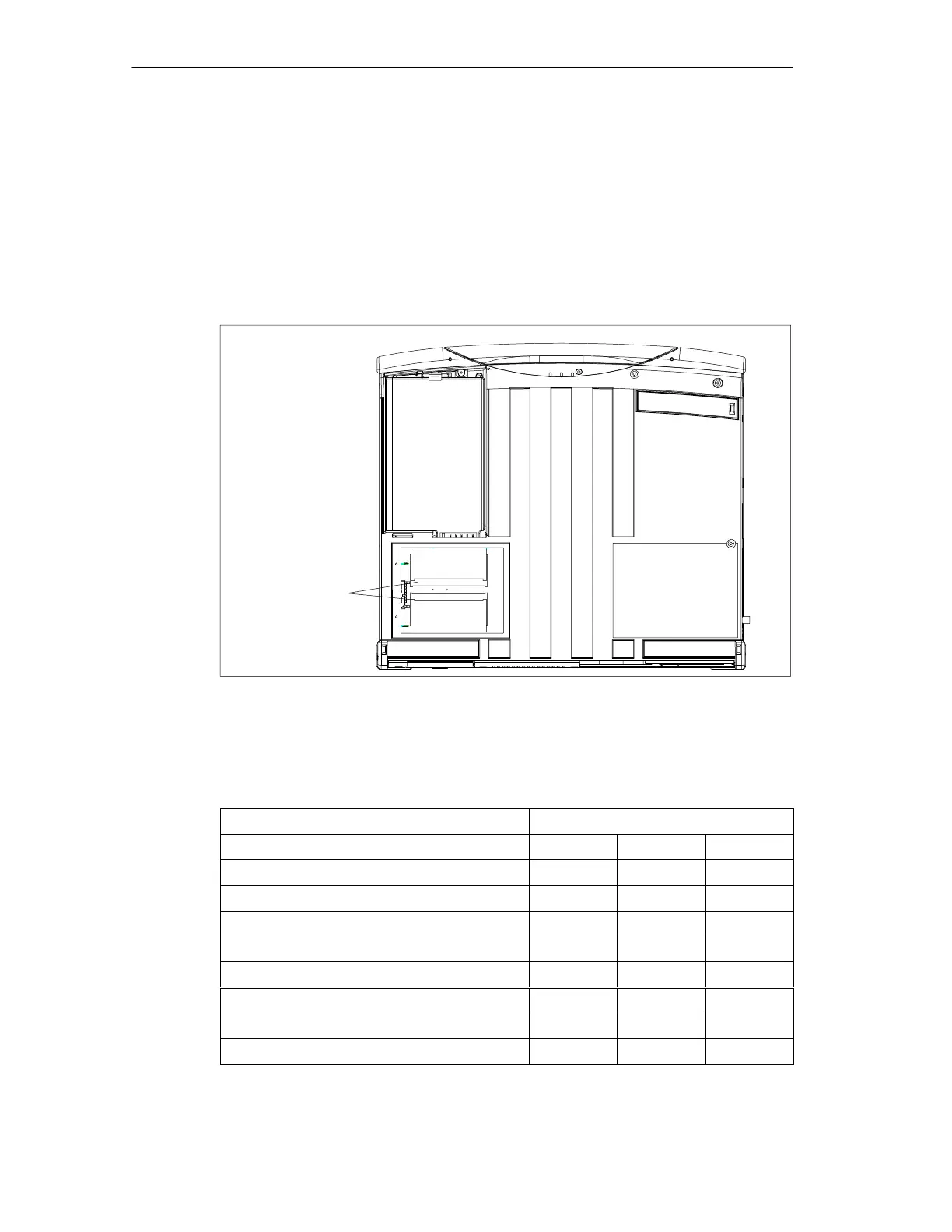

Fig. 4-1 Positions of the SO DIMM Memory Submodules
You can install submodules of different capacity. Only one module must be
installed. Refer to the catalog for the ordering data for suitable modules.
Memory Modules
64 Mbytes 128 Mbytes 256 Mbytes
64 Mbytes 1 – –
128 Mbytes 2 – –
128 Mbytes – 1 –
192 Mbytes 1 1 –
256 Mbytes – 2 –
256 Mbytes – – 1
384 Mbytes – 1 1
512 Mbytes – – 2
