Siemens Simatic Field PG User Manual

Hardware Information
7-3
SIMATIC Field PG Manual
A5E00075760-04

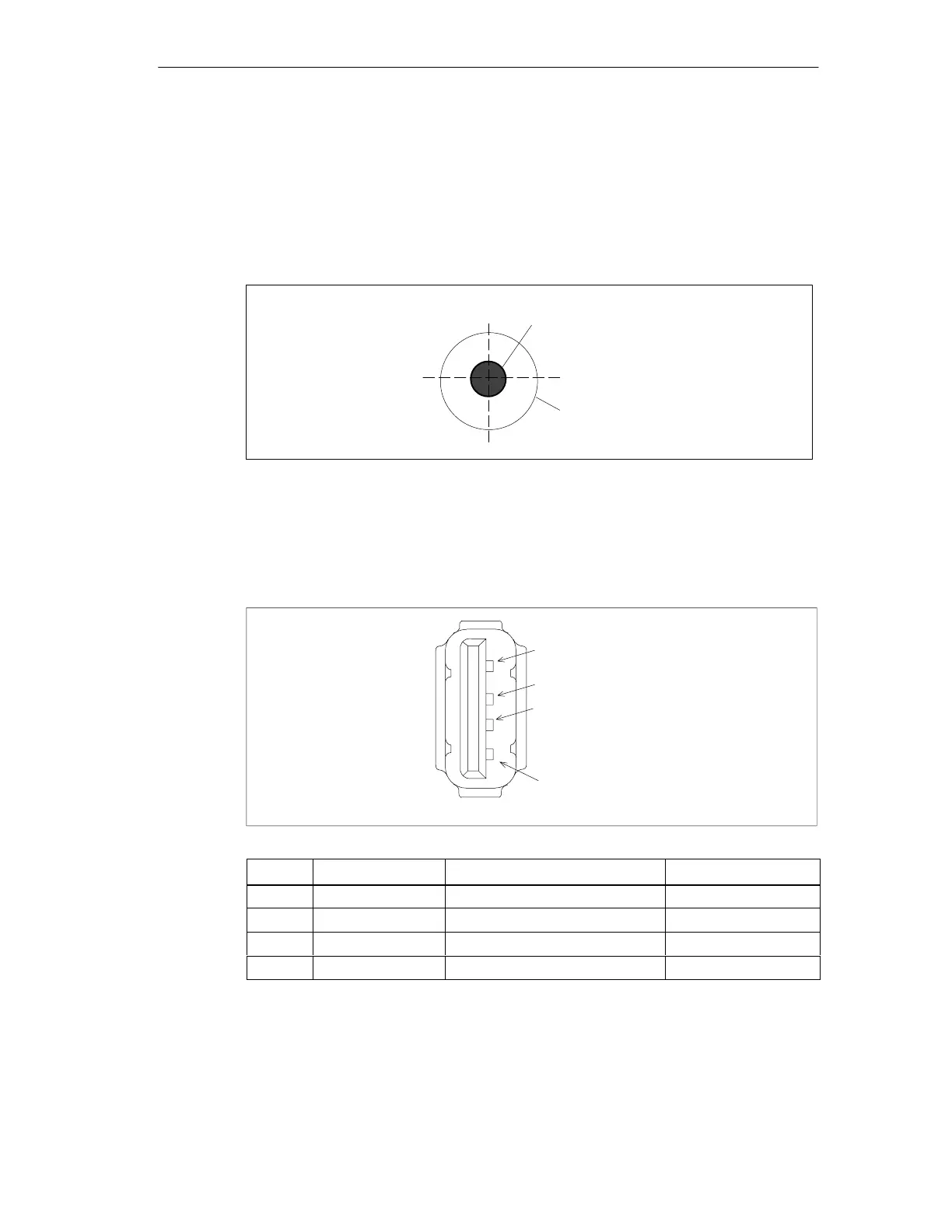

7.2 Interface Pinout
DC-In
Jack for connecting the AC/DC adapter. Potentials:
+ 17.5 VDC
0 V Ground
USB
Both interfaces are conceived for high-current USB (500mA). However, they
cannot be used simultaneously as high-current interface.
4
3
2
1
Pin-No. Designation Description Input / Output
1 VCC +5V (fused) Output
2 - Data Data line Input / Output
3 + Data Data line Input / Output
4 GND Ground -

Siemens Simatic Field PG Specifications

General

Manufacturer	Siemens
Processor	Intel Core i7
Storage	SSD up to 1TB
Graphics	Intel UHD Graphics 630
Operating System	Windows 10 Enterprise
Display	15.6" Full HD (1920x1080)
Ports	USB 3.0, USB-C, HDMI, Ethernet, Serial Port
Battery	Li-Ion battery
