Hardware Information
7-6
SIMATIC Field PG Manual
A5E00075760-04
Ethernet

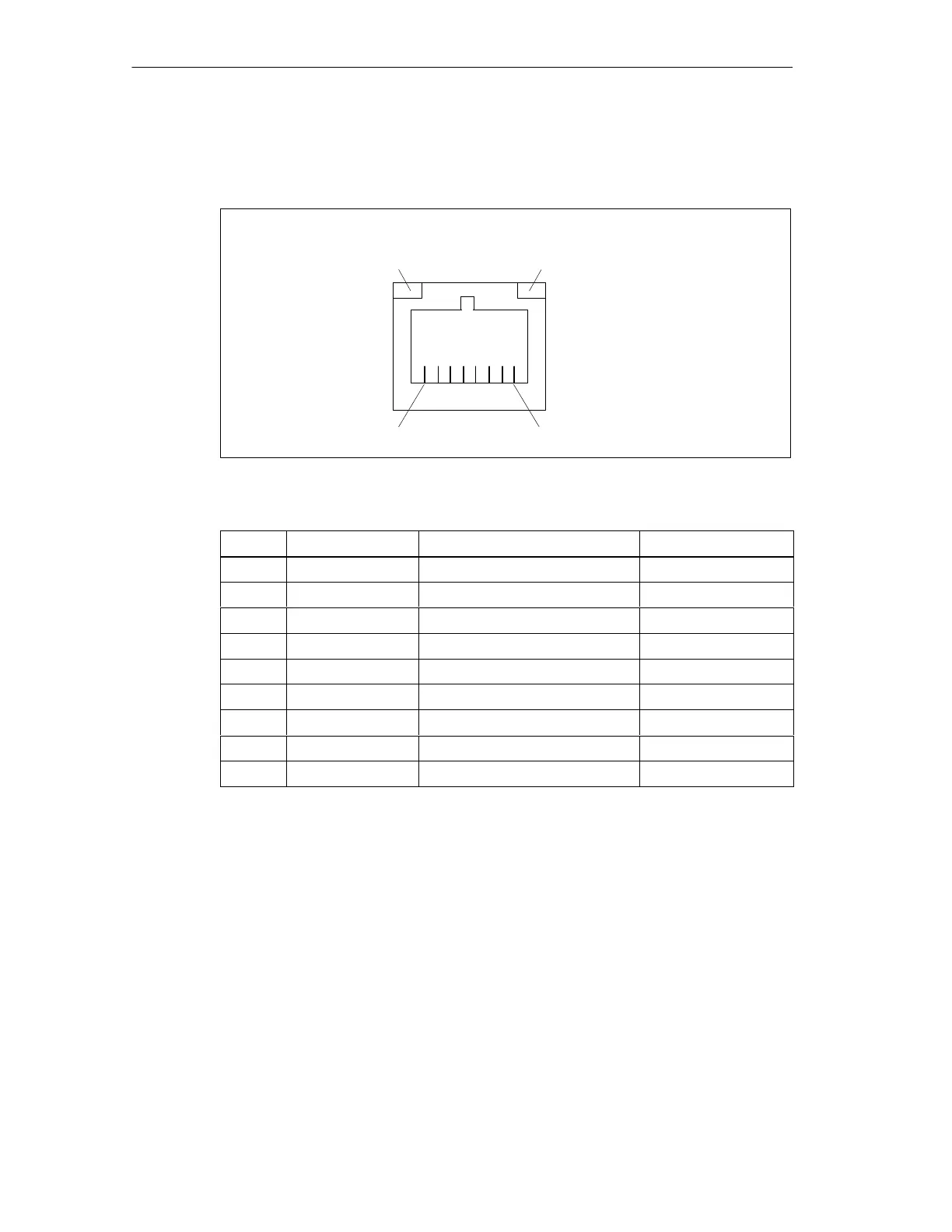

Pinout of the Ethernet interface:
LED greenLED yellow
1 8
Fig. 7-1 Ethernet port
Pin-No.
Designation Description Input / Output
1 TD+ Transmitted data Output
2 TD– Transmitted data Output
3 RD+ Received data Input
4, 5 * SYMR Internal 75 Ω output -
6 Received data Input
7, 8 * SYMT Internal 75 Ω output -
S Shield -
LED yellow Connection -
LED green Activity -
* is not necessary for data transfer

Siemens Simatic Field PG Specifications

General

Manufacturer	Siemens
Processor	Intel Core i7
Storage	SSD up to 1TB
Graphics	Intel UHD Graphics 630
Operating System	Windows 10 Enterprise
Display	15.6" Full HD (1920x1080)
Ports	USB 3.0, USB-C, HDMI, Ethernet, Serial Port
Battery	Li-Ion battery
