Technical specifications

8.8 Interface description

Basic Panels 2nd Generation

Operating Instructions, 10/2016, A5E33293231-AB

113

8.8

Interface description

8.8.1

Power supply

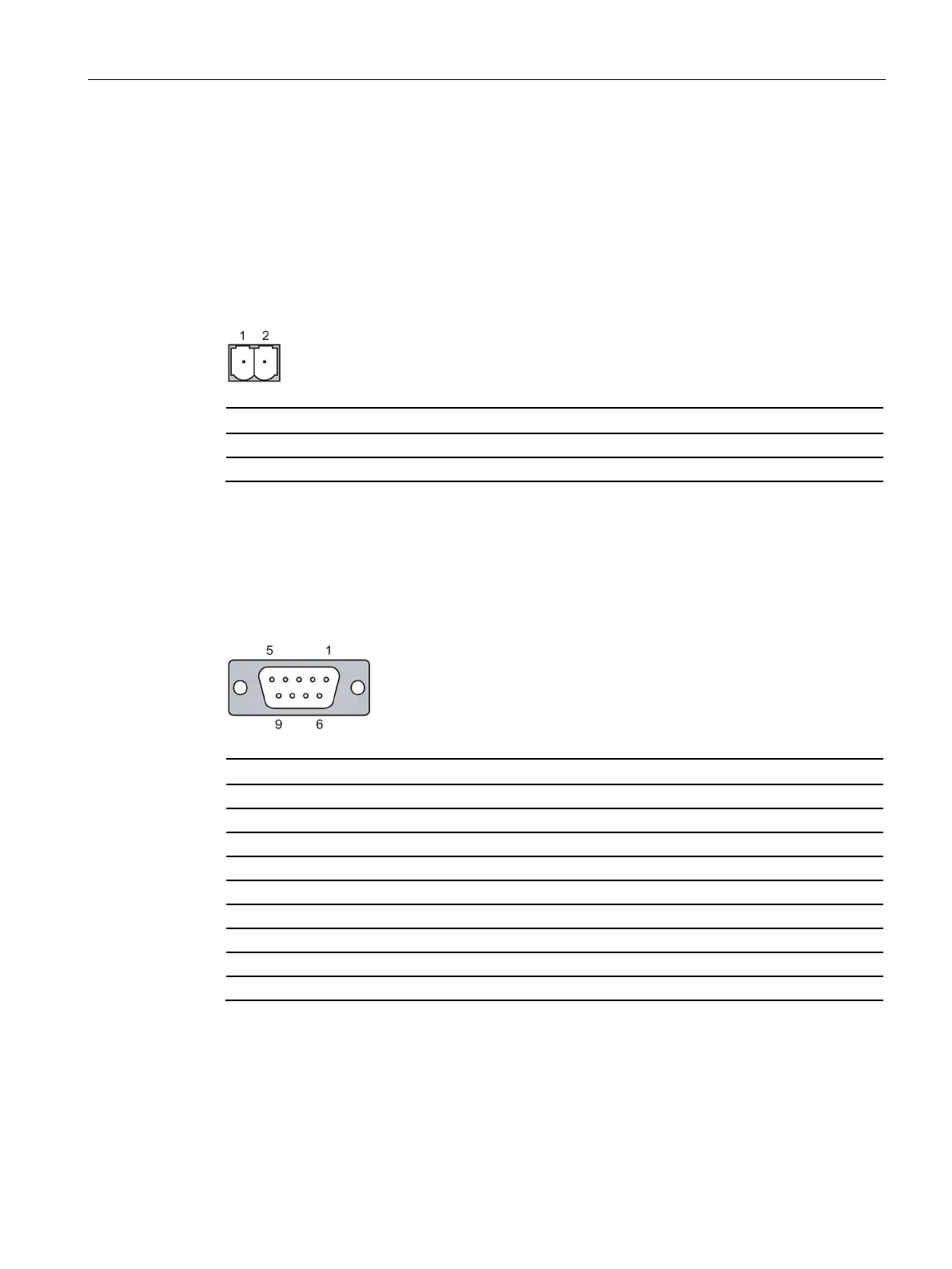

Name of interface on HMI device: DC24V X80

Plug connector, 2-pin

Assignment

+24 V DC (L+)

GND 24 V (M)

8.8.2

PROFIBUS (Sub-D RS422/485)

Name of interface on HMI device: PROFIBUS DP X2

Sub-D socket, 9-pin, with screw lock

Assignment for the RS 422

Assignment for the RS 485

n. c.

GND 24 V

TxD+

Data channel B (+)

RxD+

RTS

GND 5 V, floating

+5 V DC, floating

+24 V DC, out (max. 100 mA)

TxD–

Data channel A (–)

RxD–
