Siemens SIMATIC HMI KTP700 Basic User Manual

Mounting and connecting
3.2 Mounting the HMI device
Basic Panels 2nd Generation
Operating Instructions, 10/2016, A5E33293231-AB
25

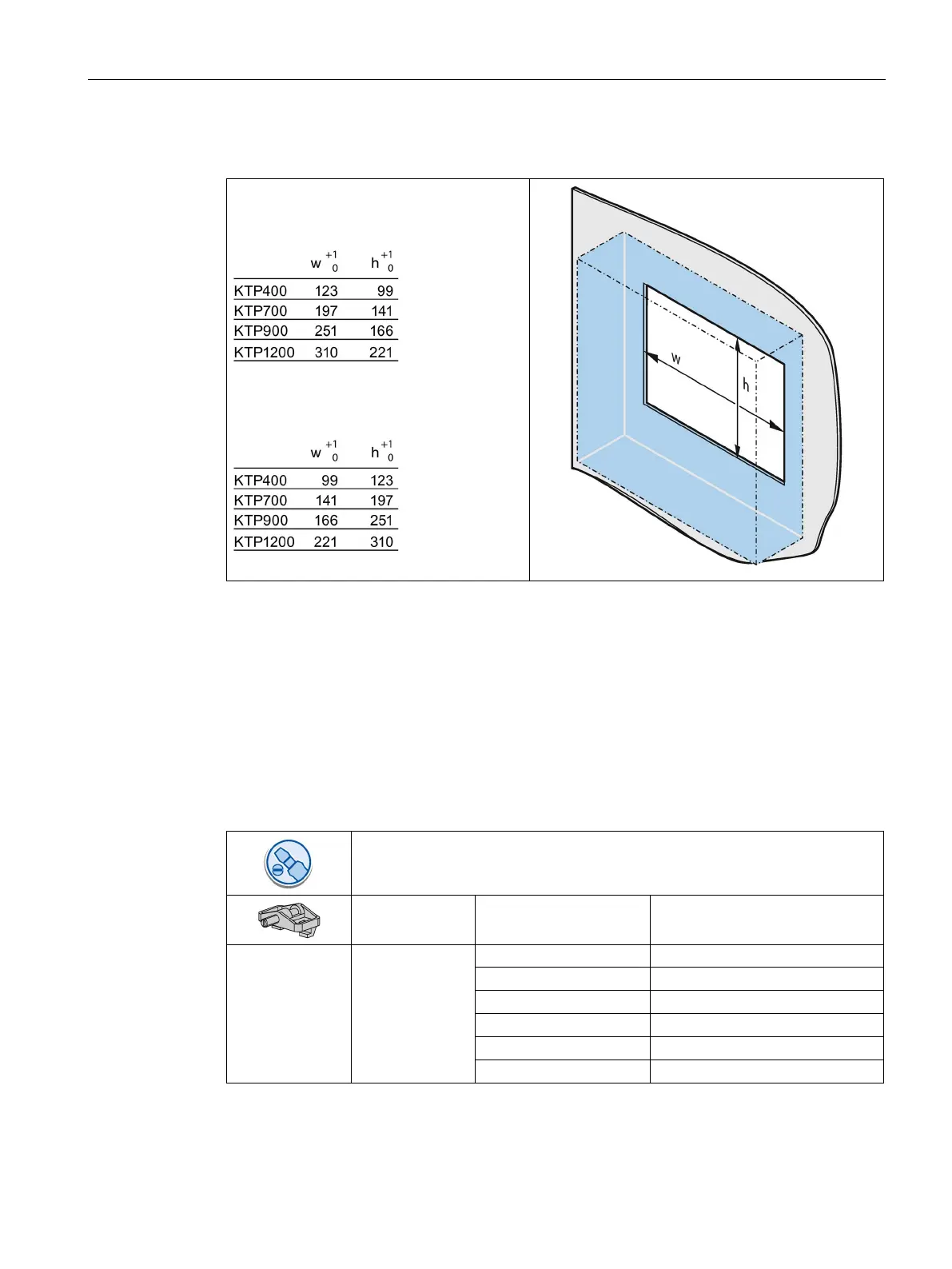

Dimensions of the mounting cutout
Dimensions of the mounting cutout for the
Basic HMI devices in horizontal mounting
position:
Dimensions of the mounting cutout for the
Basic HMI devices in vertical mounting
position:
All dimensions in mm
See also
Accessories (Page 15)
3.2
Mounting the HMI device
Required tools and accessories
Slotted screwdriver, size 2
Mounting clips for HMI device Required quantity
KTP400 Basic
4
KTP700 Basic
7
KTP700 Basic DP
7
KTP900 Basic
10
KTP1200 Basic
12
KTP1200 Basic DP
12

Siemens SIMATIC HMI KTP700 Basic Specifications

General

Display Size	7 inch
Display Type	TFT
Resolution	800 x 480 pixels
Touchscreen	Yes
Backlighting	LED
Power Supply	24 V DC
Operating Temperature	0 to 50 °C
Storage Temperature	-20 to 60 °C
Weight	0.8 kg
Color Depth	16-bit
Processor	ARM
Interface	Ethernet
Protection Rating	IP65
