Siemens SIMATIC HMI KTP700 Basic User Manual

Overview
1.3 Design of the PROFIBUS devices
Basic Panels 2nd Generation
Operating Instructions, 10/2016, A5E33293231-AB
13
1.3
Design of the PROFIBUS devices

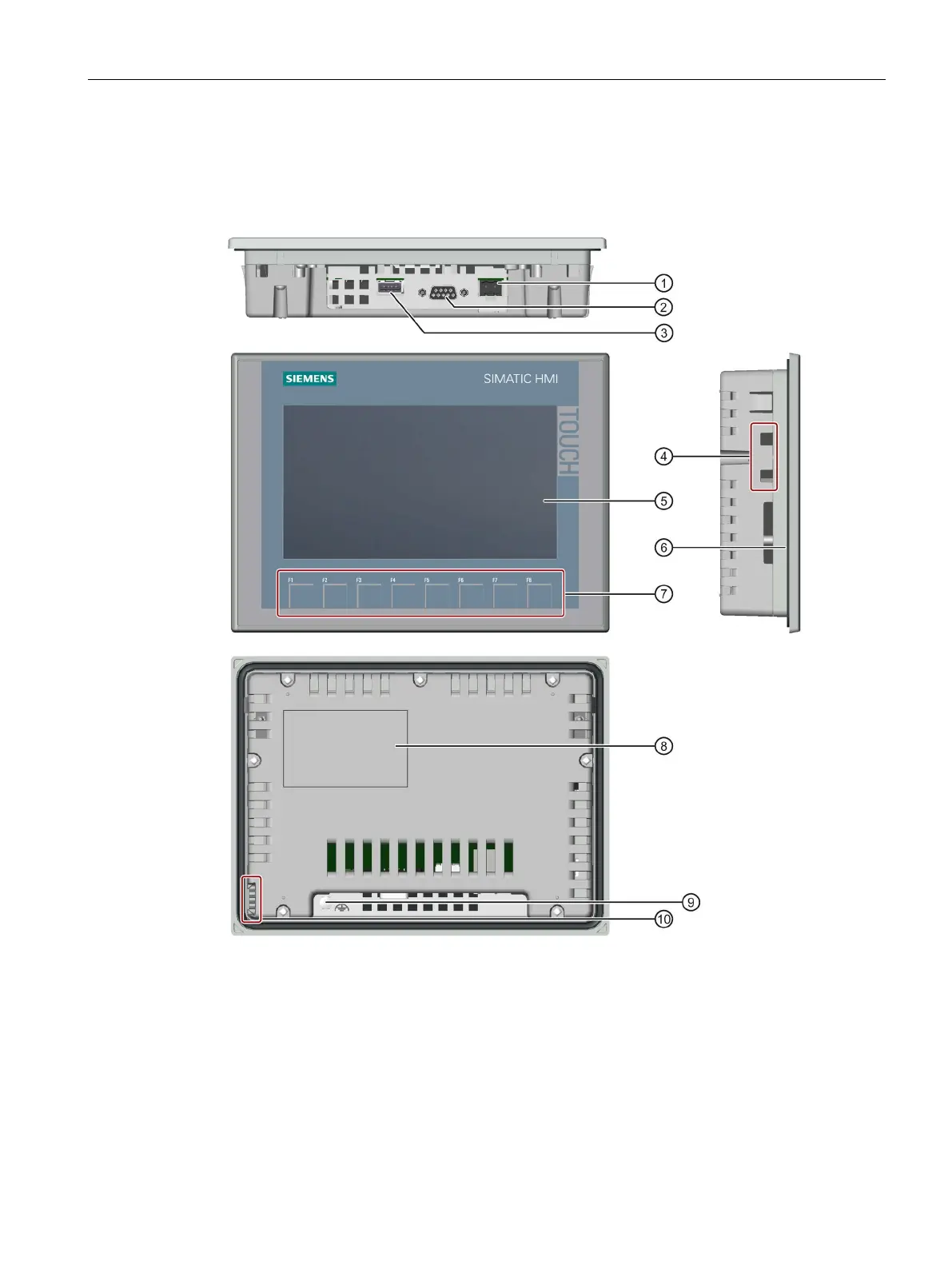

The figure below shows the design of the PROFIBUS devices using KTP700 Basic DP as an
example.
①
Power supply connection
⑥
Mounting seal
②
RS 422/RS 485 port
⑦
Function keys
③
USB port
⑧
Rating plate
④
Recesses for a mounting clip
⑨
Functional earth connection
⑤
Display/touch screen
⑩
Guides for labeling strips

Siemens SIMATIC HMI KTP700 Basic Specifications

General

Display Size	7 inch
Display Type	TFT
Resolution	800 x 480 pixels
Touchscreen	Yes
Backlighting	LED
Power Supply	24 V DC
Operating Temperature	0 to 50 °C
Storage Temperature	-20 to 60 °C
Weight	0.8 kg
Color Depth	16-bit
Processor	ARM
Interface	Ethernet
Protection Rating	IP65
