Mounting and connecting

3.3 Connecting the HMI device

Basic Panels 2nd Generation

Operating Instructions, 10/2016, A5E33293231-AB

3.3

Connecting the HMI device

3.3.1

Connection sequence

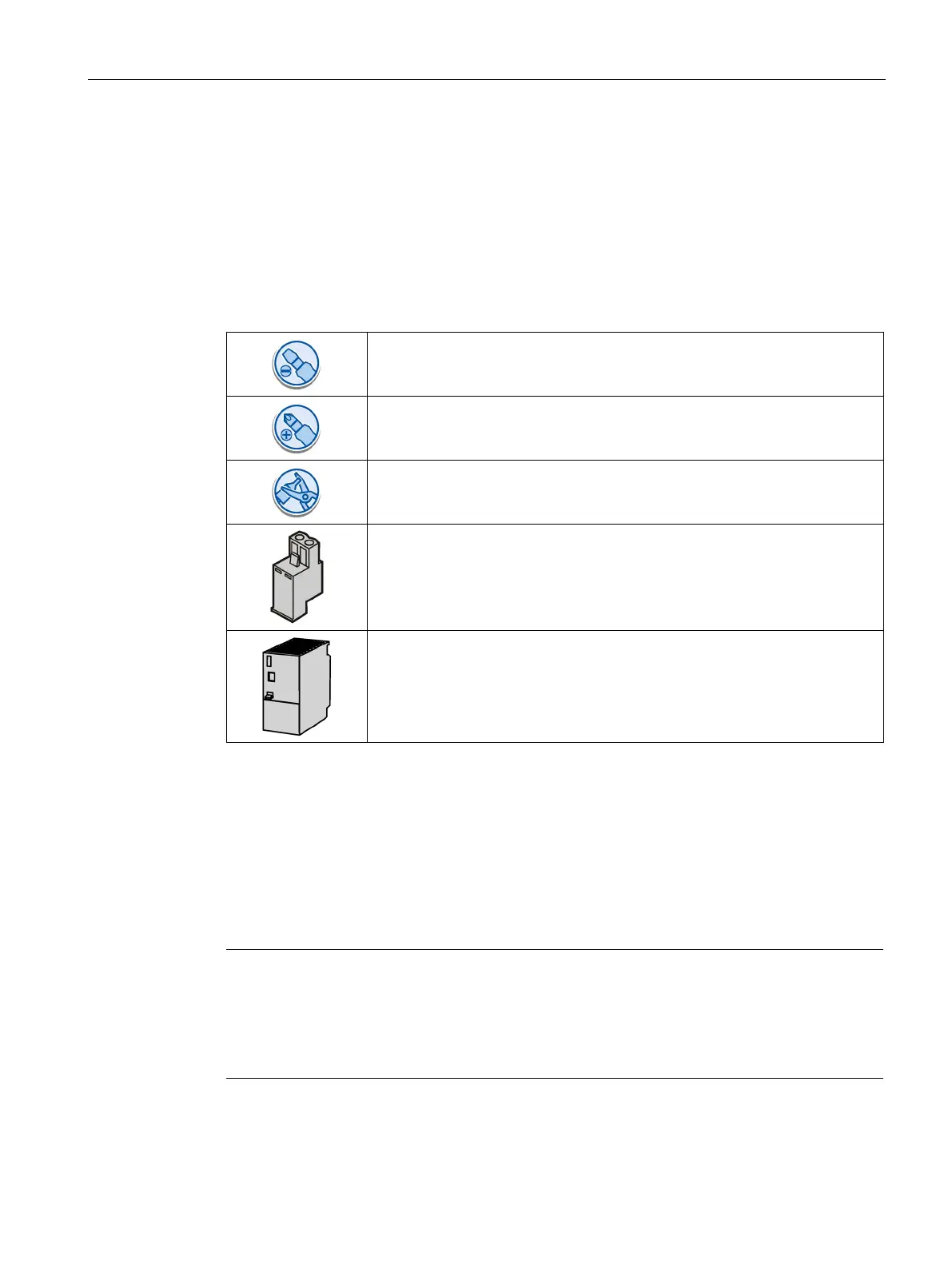

Required tools and accessories

Before you start connecting the HMI device, have the following tools and accessories at

hand:

Slotted screwdriver, size 2

Phillips screwdriver, size 3

Crimp pliers

Power supply connector

24 V DC with sufficient amperage.

See Technical specifications (Page 109)

Procedure

Keep to the following sequence of tasks when connecting the HMI device:

1. Connecting the equipotential bonding circuit (Page 28)

2. Connecting the power supply (Page 29)

3. Connecting the configuration PC (Page 31)

4. Connecting the controller (Page 33)

Note

Strain relief

Contacts can be broken or wires

can be torn off if cables are not provided adequate strain

relief.

Provide adequate strain relief for all cables.
