Siemens SIMATIC HMI KTP700 Basic User Manual

Mounting and connecting
3.3 Connecting the HMI device
Basic Panels 2nd Generation
Operating Instructions, 10/2016, A5E33293231-AB
29

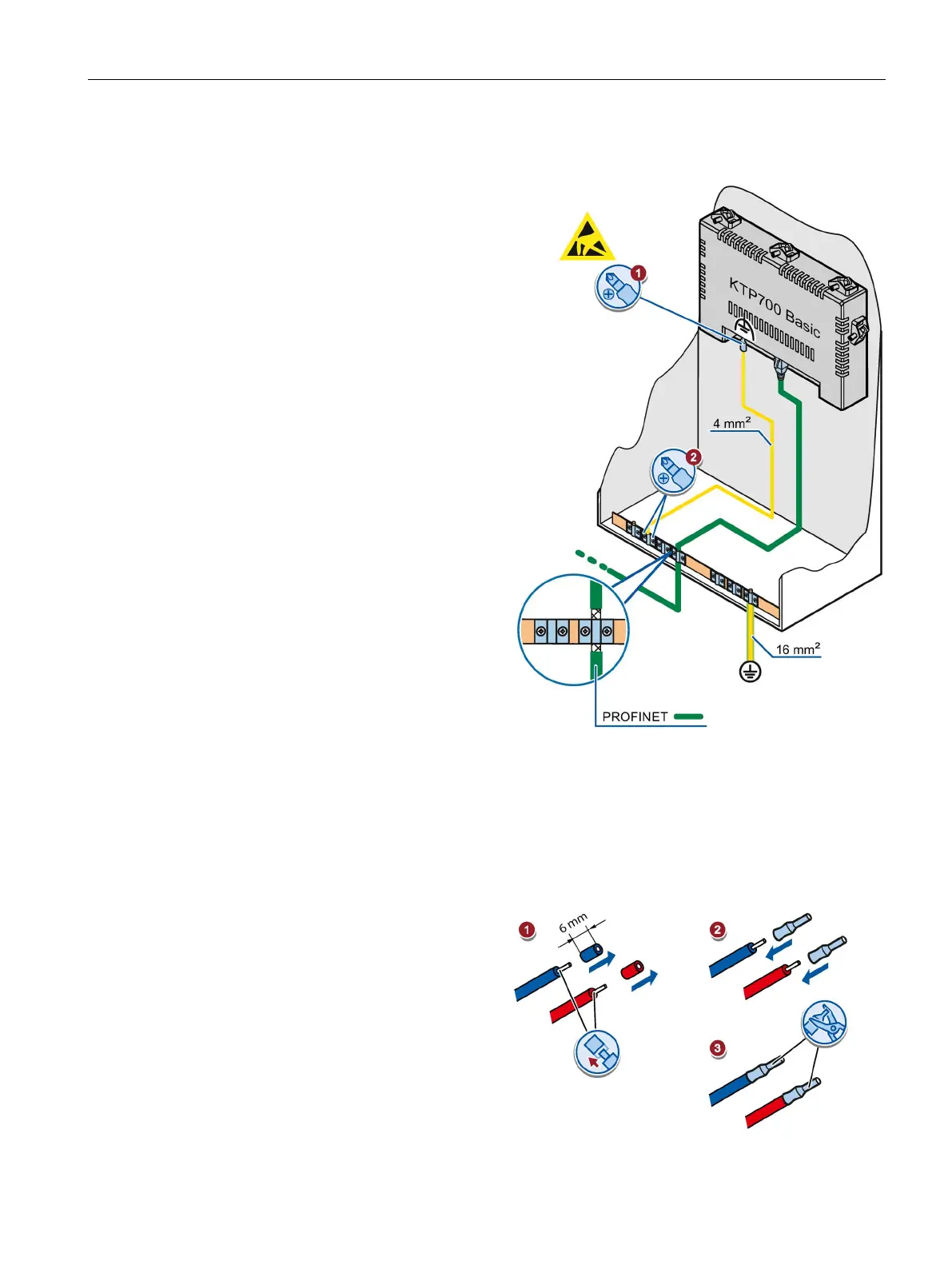

Procedure
1.
Interconnect the functional earth
connection of the HMI device with
an equipotential bonding conductor,
cross-section 4 mm
2
.
2.
Connect the equipotential bonding
conductor to the equipotential
bonding rail.
3.3.3
Connecting the power supply
Stripping the cable
Use power supply cables with a
maximum cross
-section of 1.5 mm
2
.
1.
Strip the ends of two power supply
cables to a length of 6 mm.
2.
Attach cable sleeves to the bare
cable ends.
3.
Install the end sleeves on the
cable ends using the crimp pliers.

Siemens SIMATIC HMI KTP700 Basic Specifications

General

Display Size	7 inch
Display Type	TFT
Resolution	800 x 480 pixels
Touchscreen	Yes
Backlighting	LED
Power Supply	24 V DC
Operating Temperature	0 to 50 °C
Storage Temperature	-20 to 60 °C
Weight	0.8 kg
Color Depth	16-bit
Processor	ARM
Interface	Ethernet
Protection Rating	IP65
