Siemens SIMATIC HMI KTP700 Basic - Checking Clearances

Mounting and connecting
3.1 Preparations
Basic Panels 2nd Generation
Operating Instructions, 10/2016, A5E33293231-AB
23

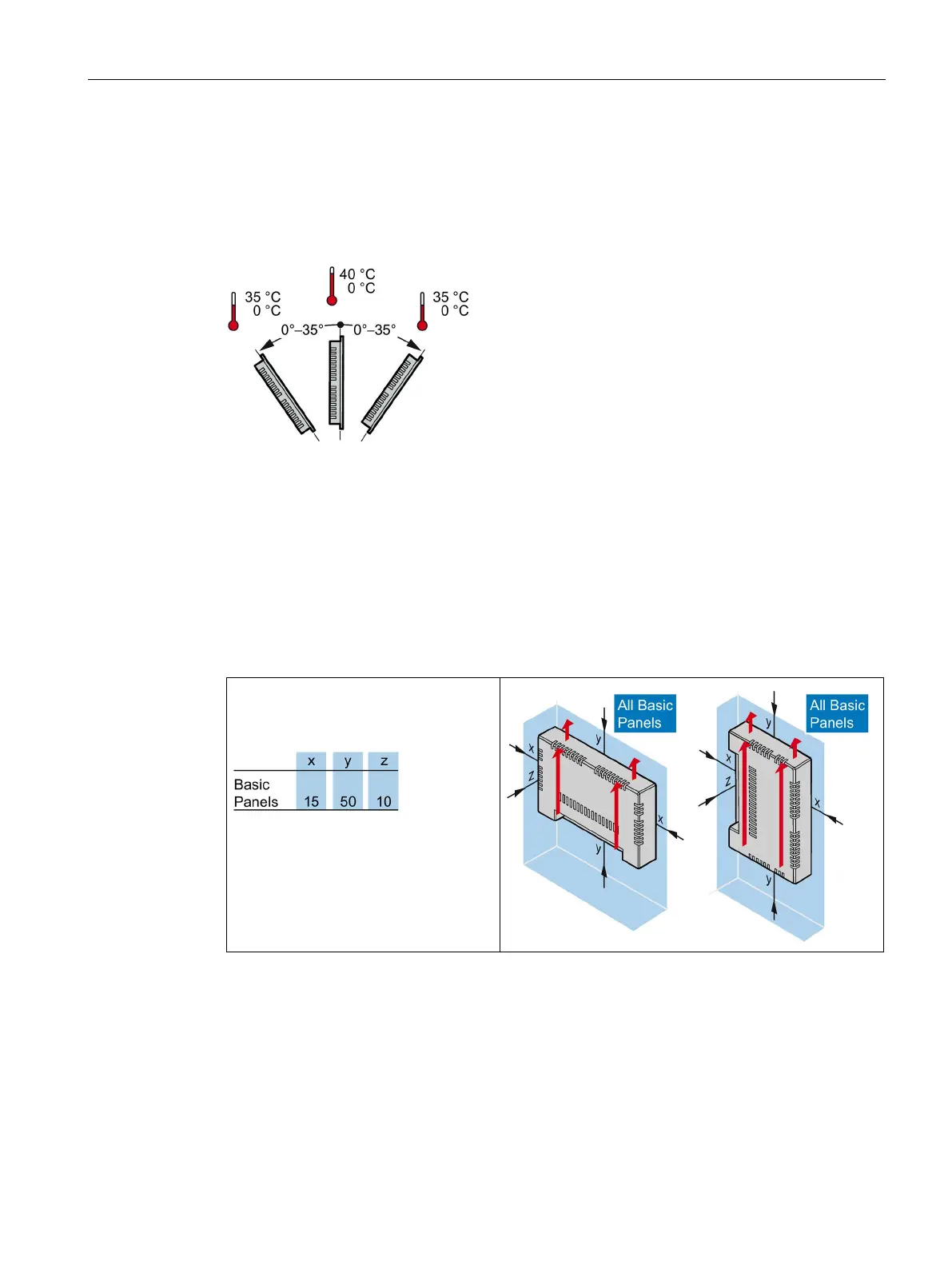

Mounting in vertical format
Ambient temperature in the cabinet with vertical mounting:
● Vertical mounting (0° inclined): Maximum +40 °C
● Inclined mounting (inclined up to 35°): Maximum +35 °C
See also
Operating Conditions (Page 101)
3.1.4
Checking clearances
The following clearances are required around the HMI device to ensure sufficient self-
ventilation:
Required clearance around the
HMI devices.
All dimensions in mm
