Siemens SIMATIC HMI KTP700 Basic User Manual

Operating the device

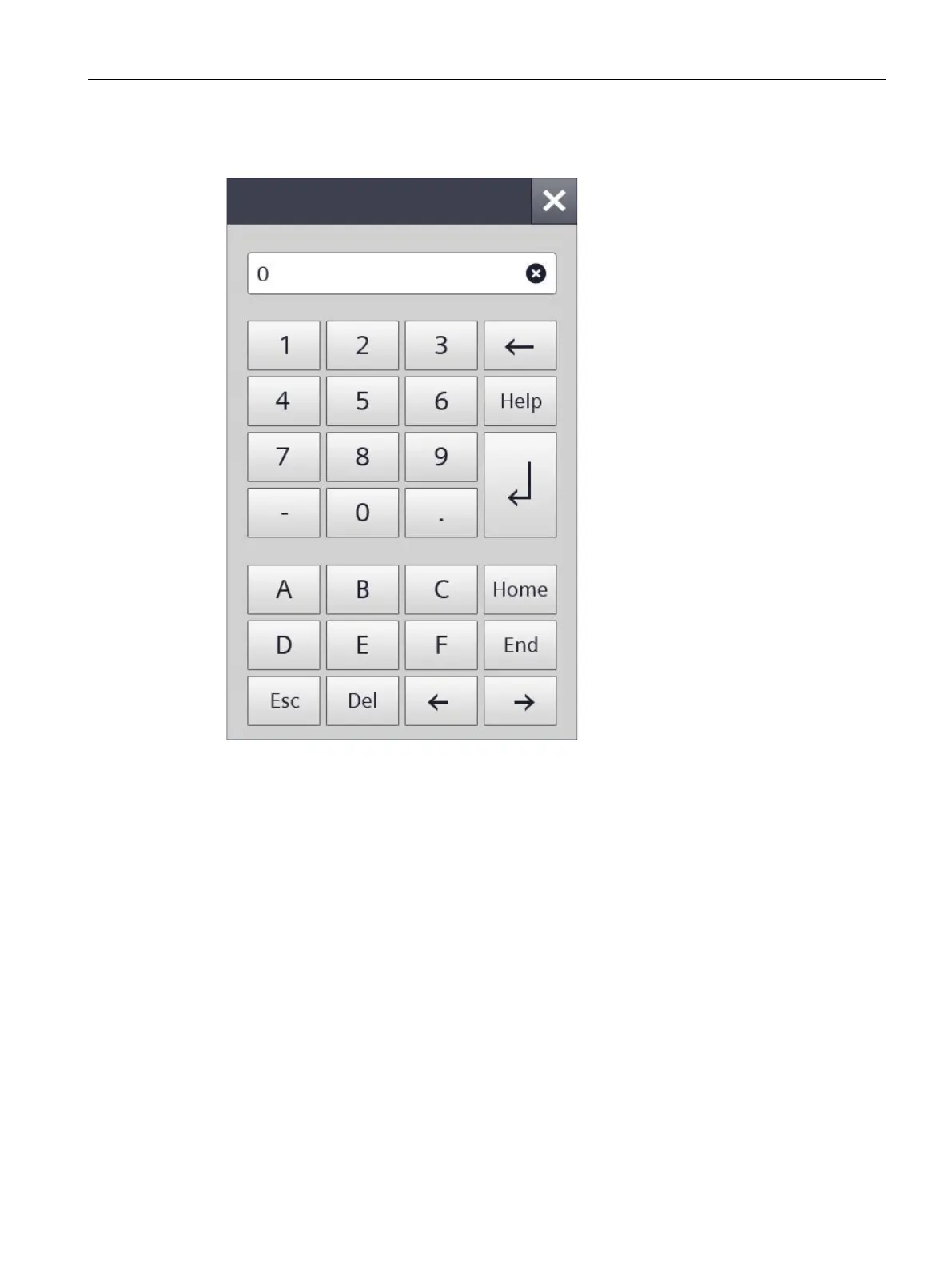

4.3 The screen keyboards
Basic Panels 2nd Generation
Operating Instructions, 10/2016, A5E33293231-AB
45
The layout changes accordingly for HMI devices in portrait format.
Checking numerical value limits
Tags can be assigned limit values. Any entry of a value outside this limit is rejected. If an
alarm view is configured, a system event is triggered and the original value is displayed
again.
Decimal places of numerical values
The configuration engineer can define the number of decimal places for a numerical text box.
The number of decimal places is checked when you enter a value in this type of I/O field.
● Decimal places that exceed the limit are ignored.
● Unused decimal places are padded with "0" entries.

Siemens SIMATIC HMI KTP700 Basic Specifications

General

Display Size	7 inch
Display Type	TFT
Resolution	800 x 480 pixels
Touchscreen	Yes
Backlighting	LED
Power Supply	24 V DC
Operating Temperature	0 to 50 °C
Storage Temperature	-20 to 60 °C
Weight	0.8 kg
Color Depth	16-bit
Processor	ARM
Interface	Ethernet
Protection Rating	IP65
