Mounting, connecting up and commissioning
3.2 Installing and commissioning the RF120C
SIMATIC RF120C
Operating Instructions, 02/2021, C79000-G8976-C328-03
13
Dimensions for installation

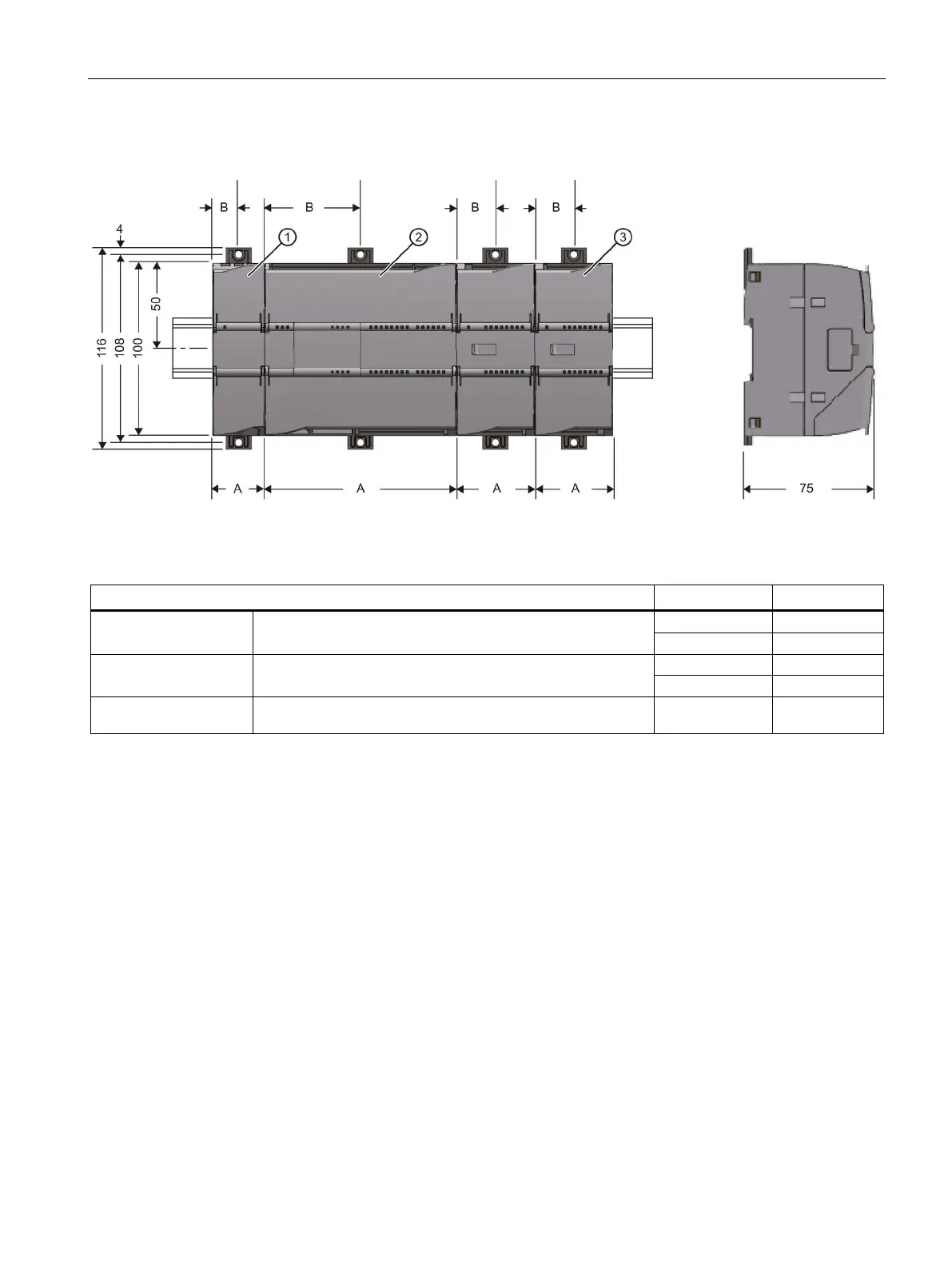

Figure 3-1 Dimensions for installation of the S7-1200
Table 3- 1 Dimensions for installation
Width depends on the CPU being used
Width depends on the signal module being used
Communications inter-
faces ①
* Width B: The distance between the edge of the housing and the center of the hole in the DIN rail mounting clip
DIN rail mounting clips
All CPUs, SMs, CMs and CPs can be installed on the DIN rail in the cabinet. Use the pull-out
DIN rail mounting clips to secure the device to the rail. These mounting clips also lock into
place when they are extended to allow the device to be installed in a switching panel. The
inner dimension of the hole for the DIN rail mounting clips is 4.3 mm.
