Siemens SIMATIC IFP Basic Series

Installing and connecting the device
3.1 Preparing for installation
IFP Basic
Operating Instructions, 03/2019, A5E46178354 - AB
23

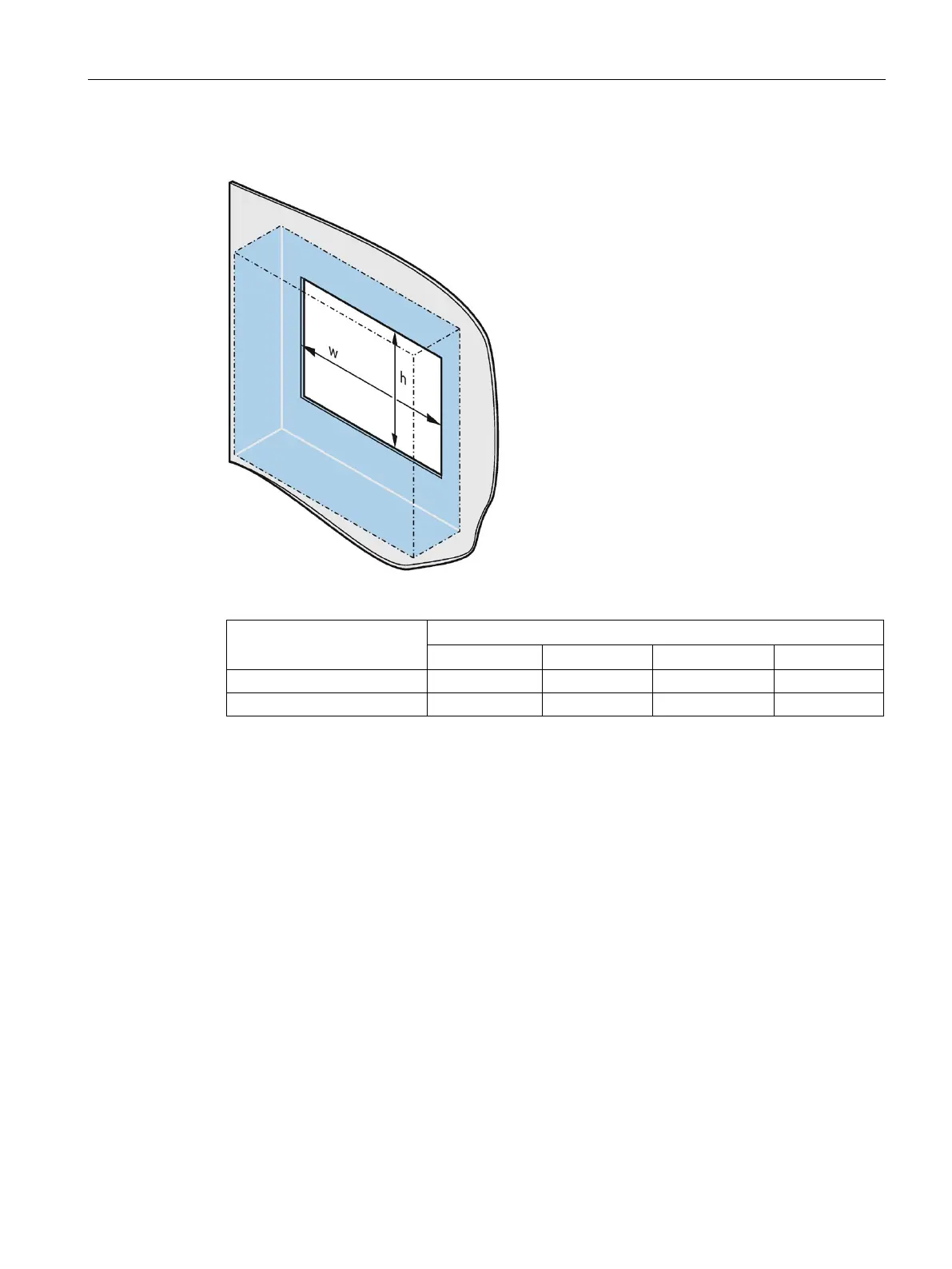

Dimensions of the mounting cutout
The following table shows the dimensions of the required mounting cutout:
Mounting cutout
Device
12 Inch
15 Inch
19 Inch
22 Inch
Width w
*
302
+1
mm
388.4
+1
mm
455
+1
mm
522.2
+1
mm
Height h
*
208
+1
mm
240.5
+1
mm
279.2
+1
mm
316.8
+1
mm
*
Width and height should be reversed accordingly when mounting in vertical format.
