1.3 Exterior design
IFP Basic
Operating Instructions, 03/2019, A5E46178354 - AB
9
1.3
Exterior design
1.3.1
IFP Basic
This section describes the design of the monitor and touch devices, using the IFP1500 Basic
as an example.

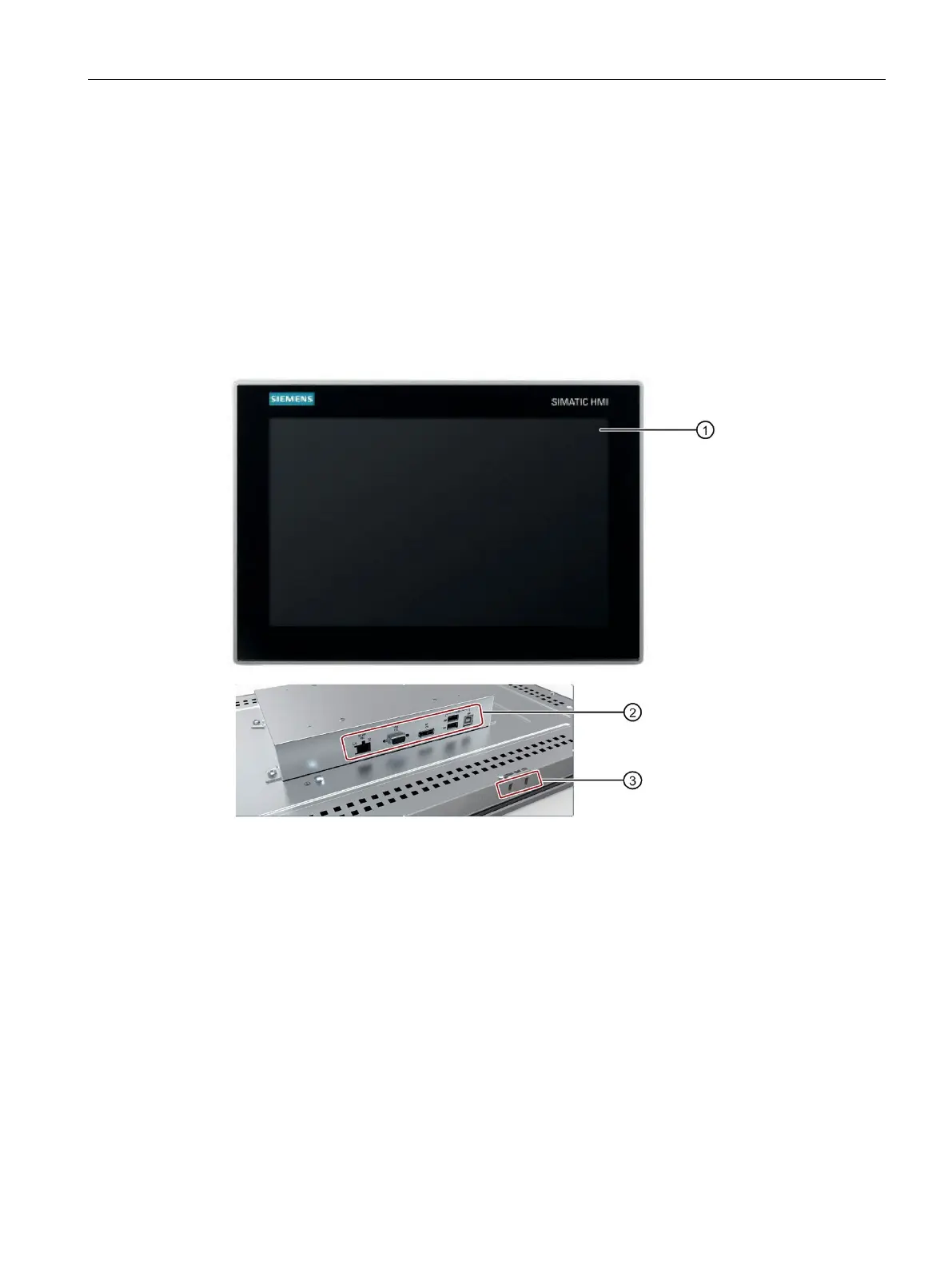

Front view and side view
①
Display/touch screen
②
Interfaces
③
Recesses for mounting clips
